Boatmans Super Hornet build With lights

[BOATMAN]

They show fine for me in the messages you posted yesterday.

HI Jakko yes thats a rumon as i looked on here this morn an all there was just a little sqaure an no pics but you are right sir yes they do now show so i'll continue posting the build of this hornet
cheers sir
chrisb



[BOATMAN]

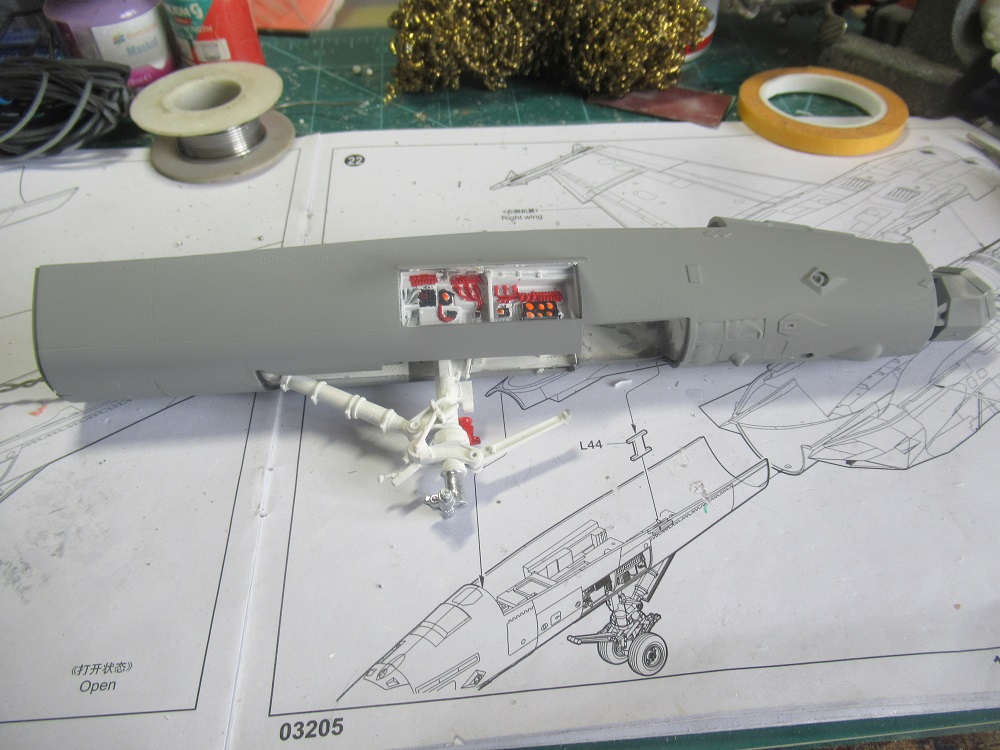

WELL as thepics now show i'll carry on posting AN ive fitted mini hinges i both avionics bay hatches with light in each an these will be seen when the model is all wired up



[BOATMAN]

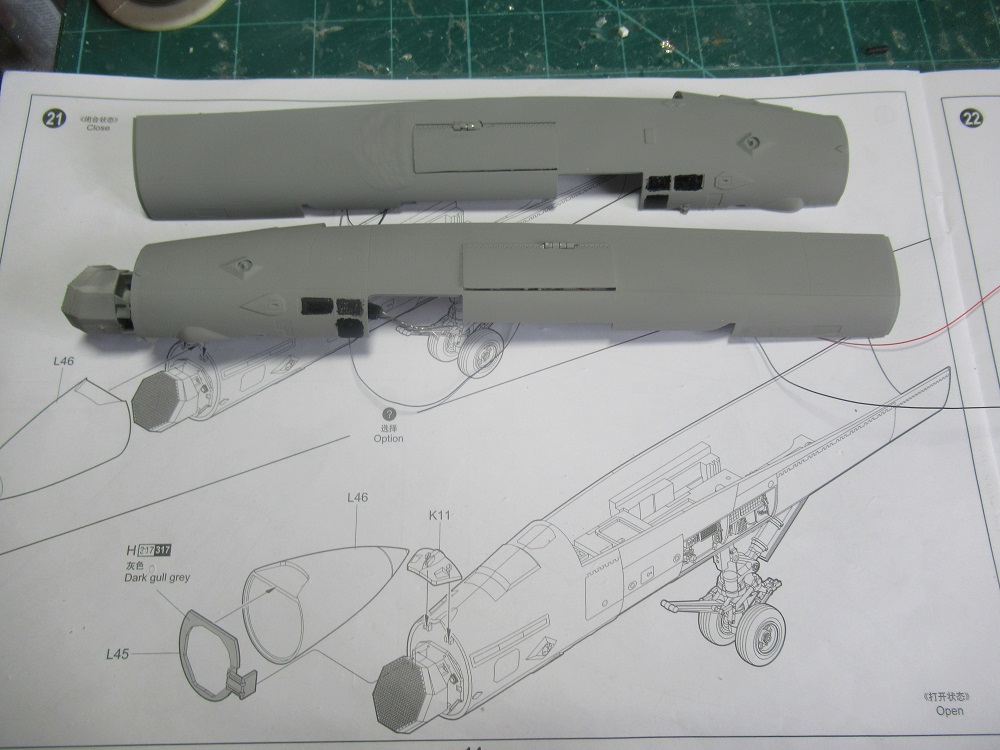

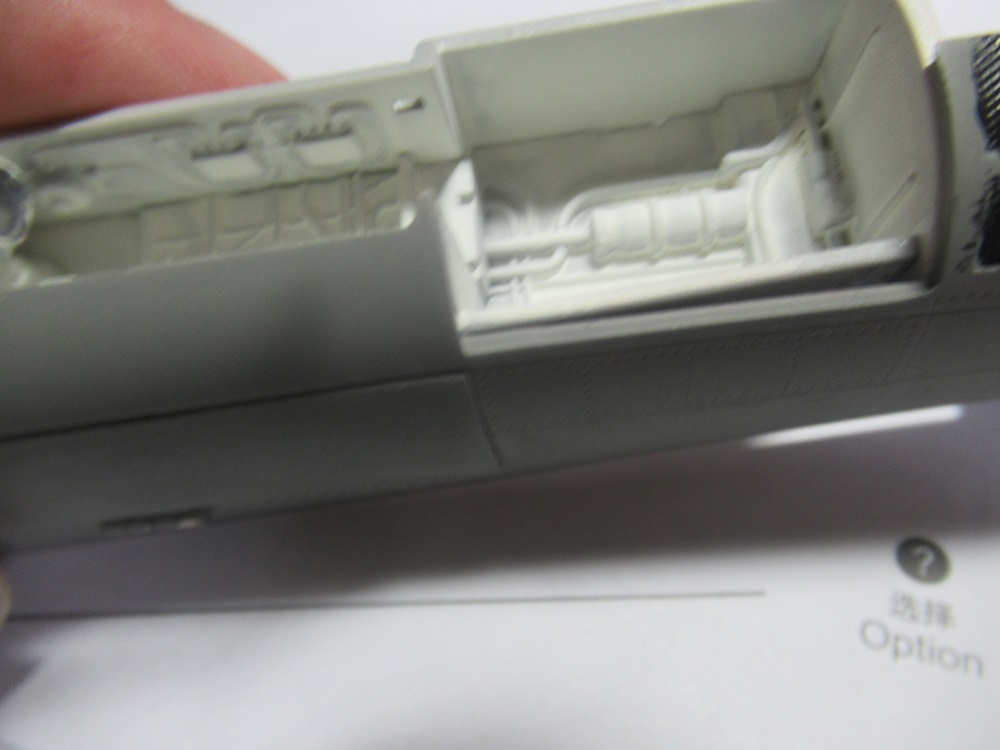

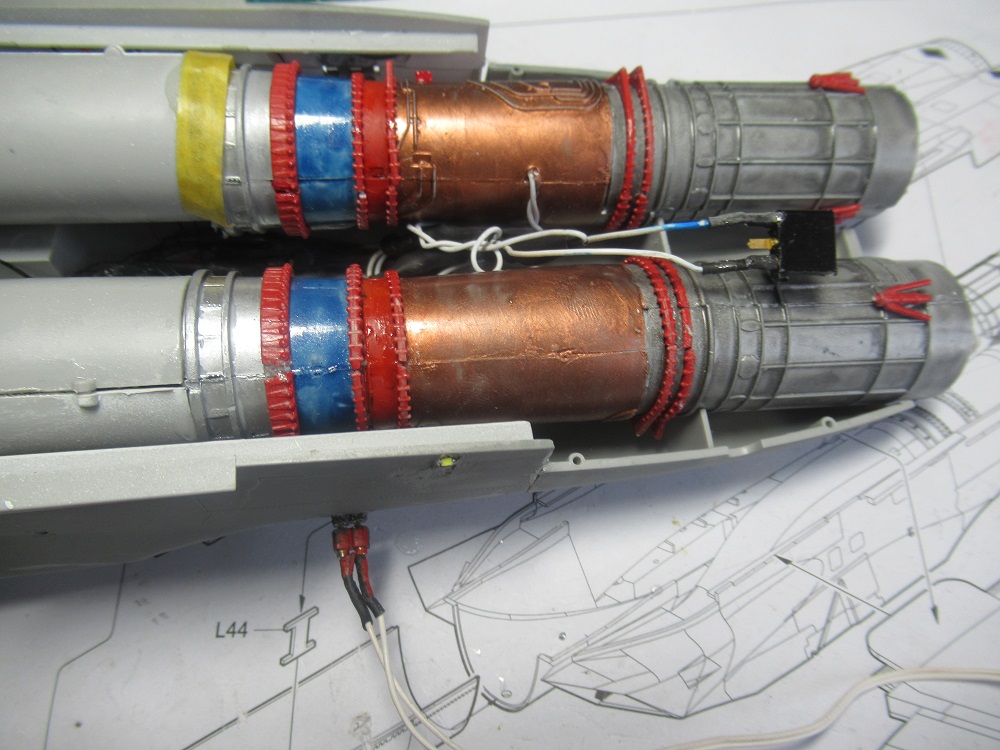

an in this pic ive cut out the zigzag hatch on the starbord side as i want to be able to show an engine in the fusealrge an it will open an close with a mm led light fitted to show the engine in low light areas



[BOATMAN]

an closed again



[BOATMAN]

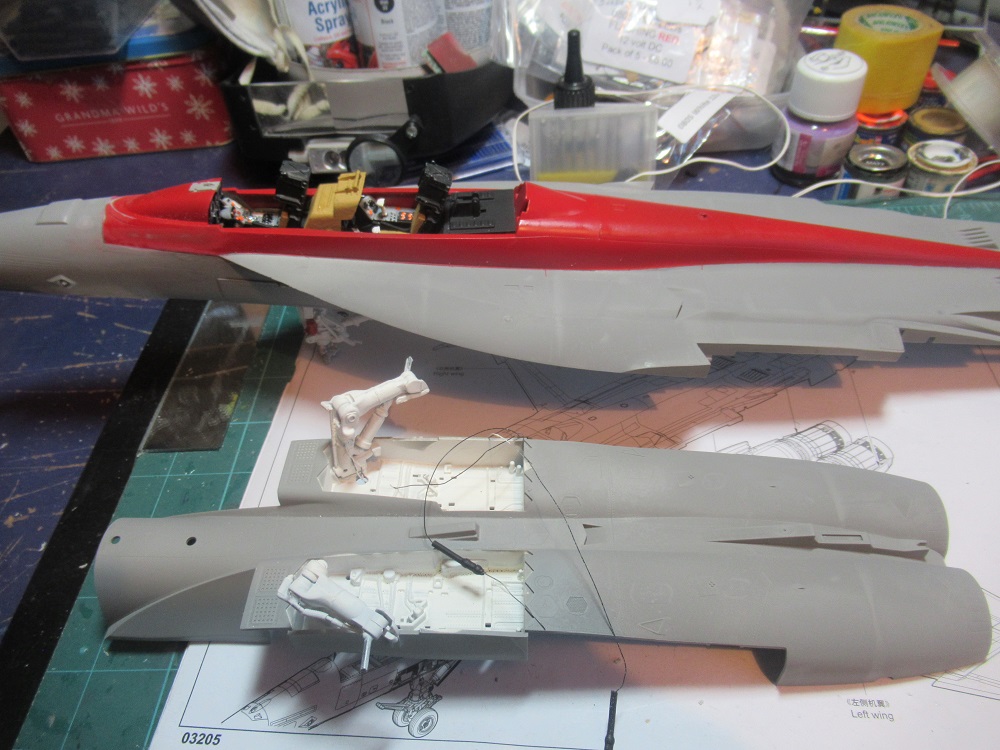

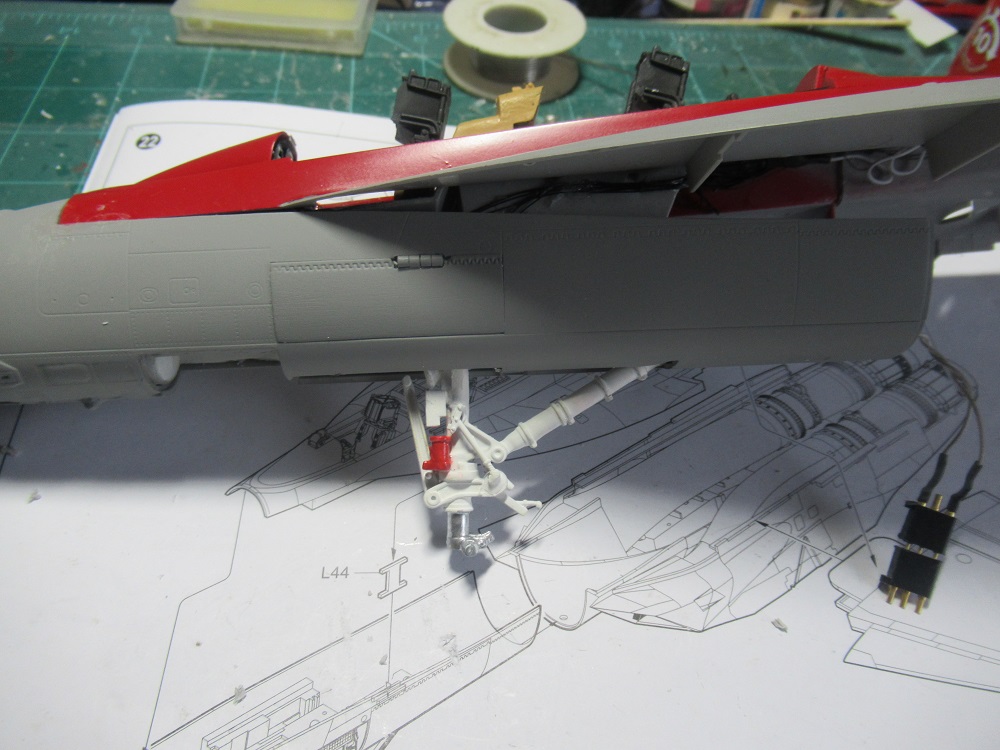

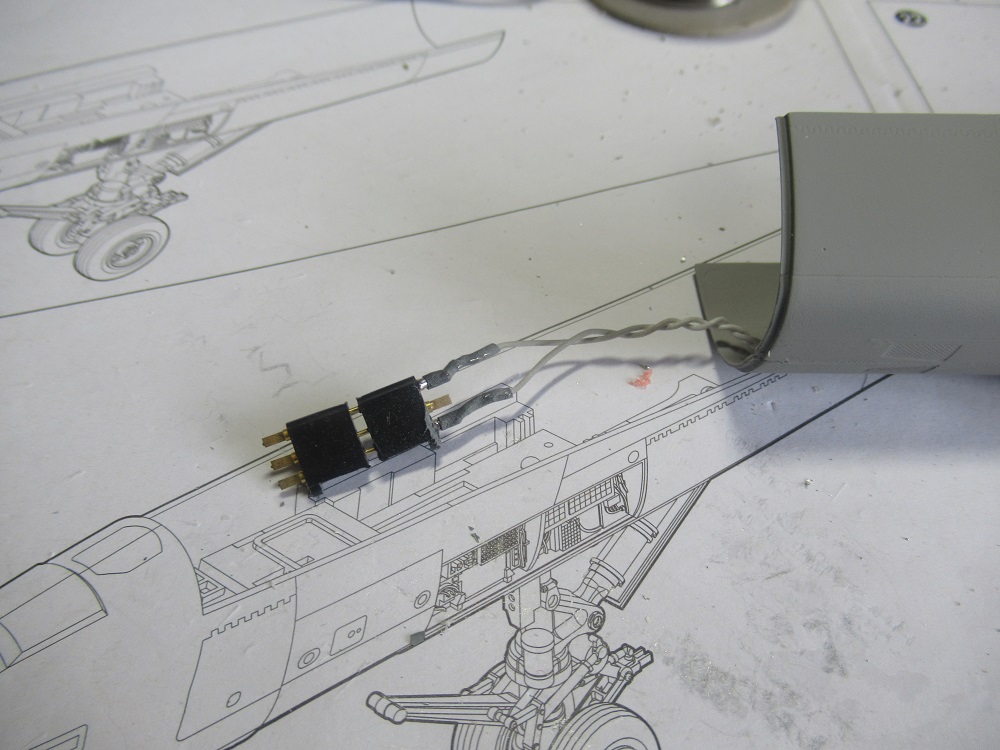

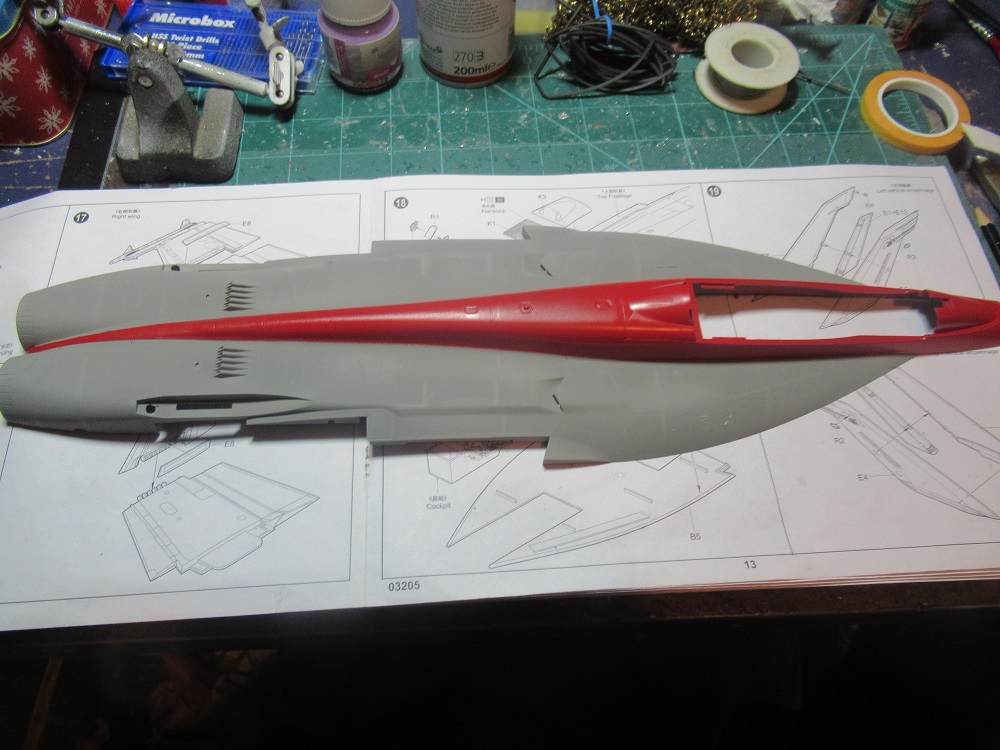

under cart bay an there is the wires for the nav lightsin on the top of the fusalarge



[BOATMAN]

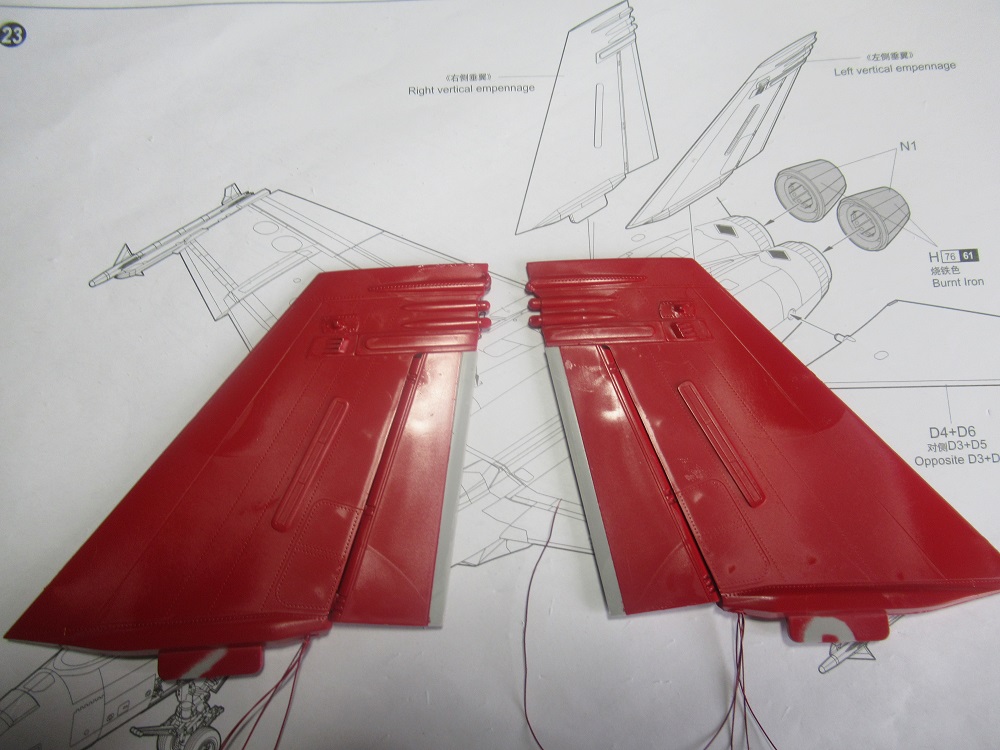

here fitting the orange flashin anti collishion lghts in the tails an cuttinshorter the hair thin wires an resoldering them to the resistors



[BOATMAN]

AN LGHT FITTED



[BOATMAN]

Light fitted anshown here from the inside through the tiny hole in the tail
chrisb



[BOATMAN]

more pics tomorrow



[BOATMAN]

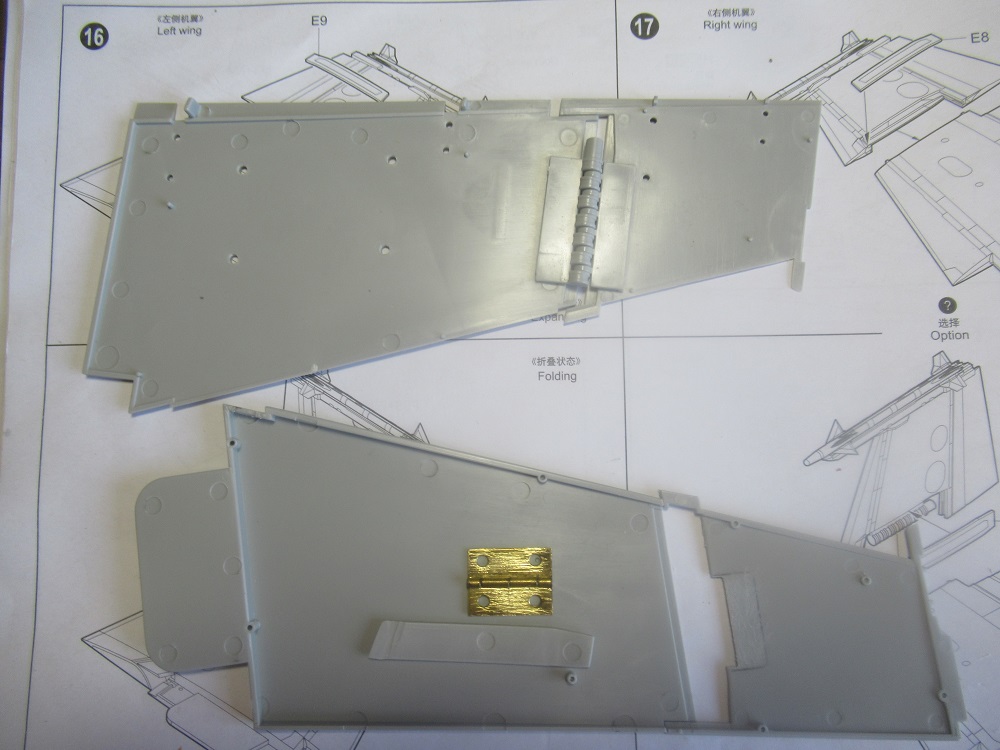

well hi all a few more build pics here im fittin the folding wing tips with a brass hinge



[BOATMAN]

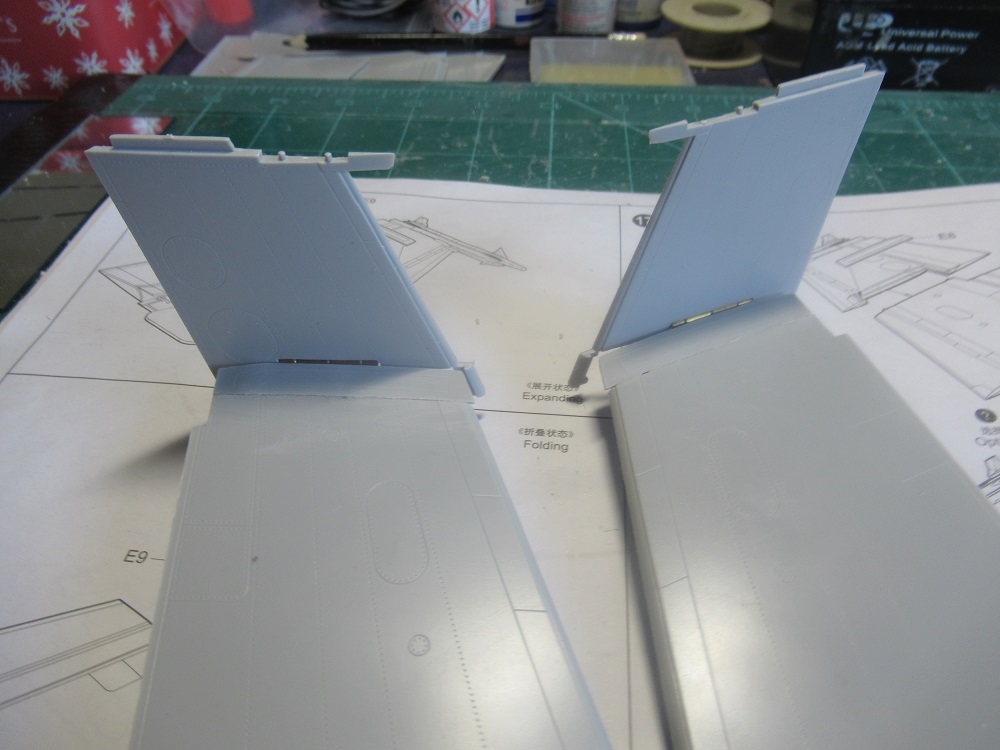

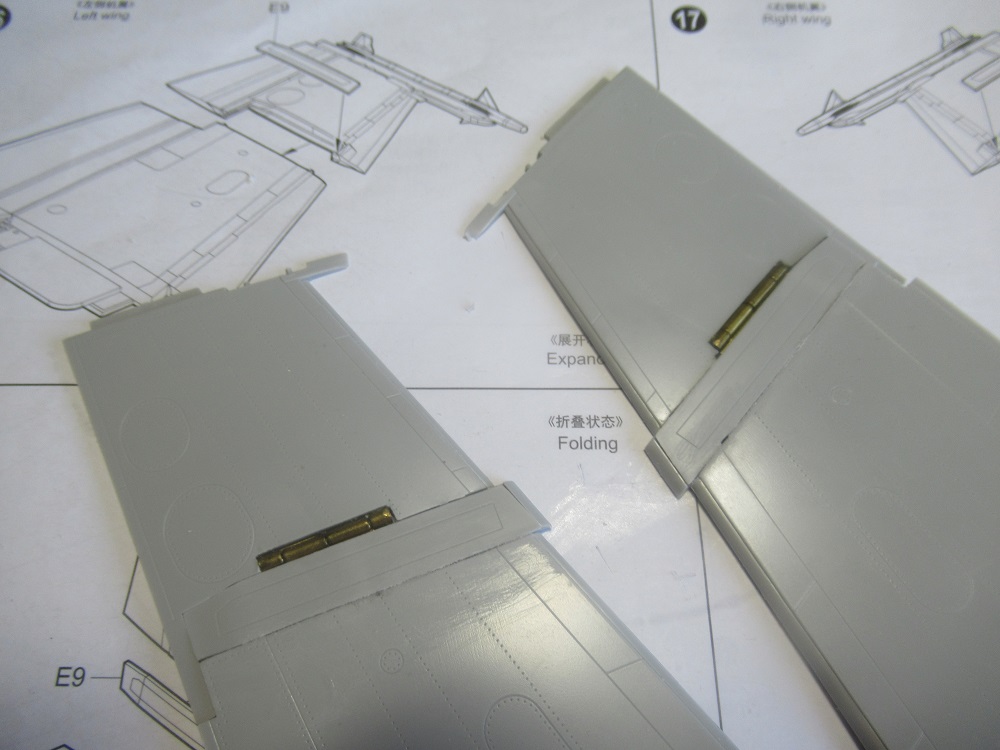

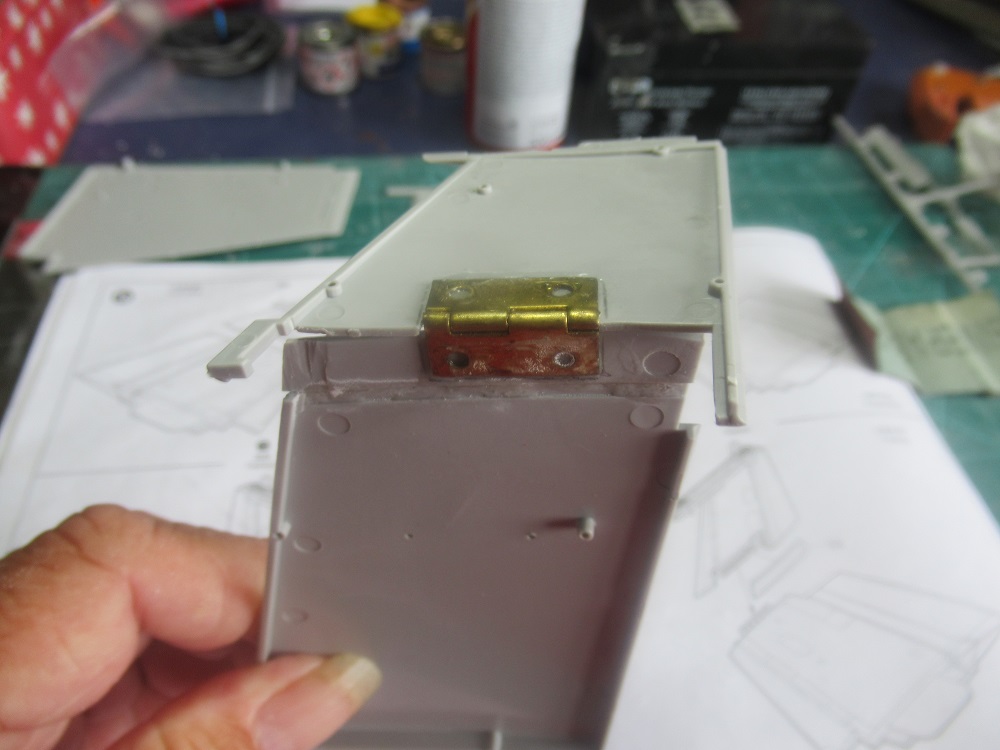

here fitting a brass hinges as plastic hinges are no good not strong enough so that the wings tips can be folded up with nav lights fitted



[BOATMAN]



[BOATMAN]

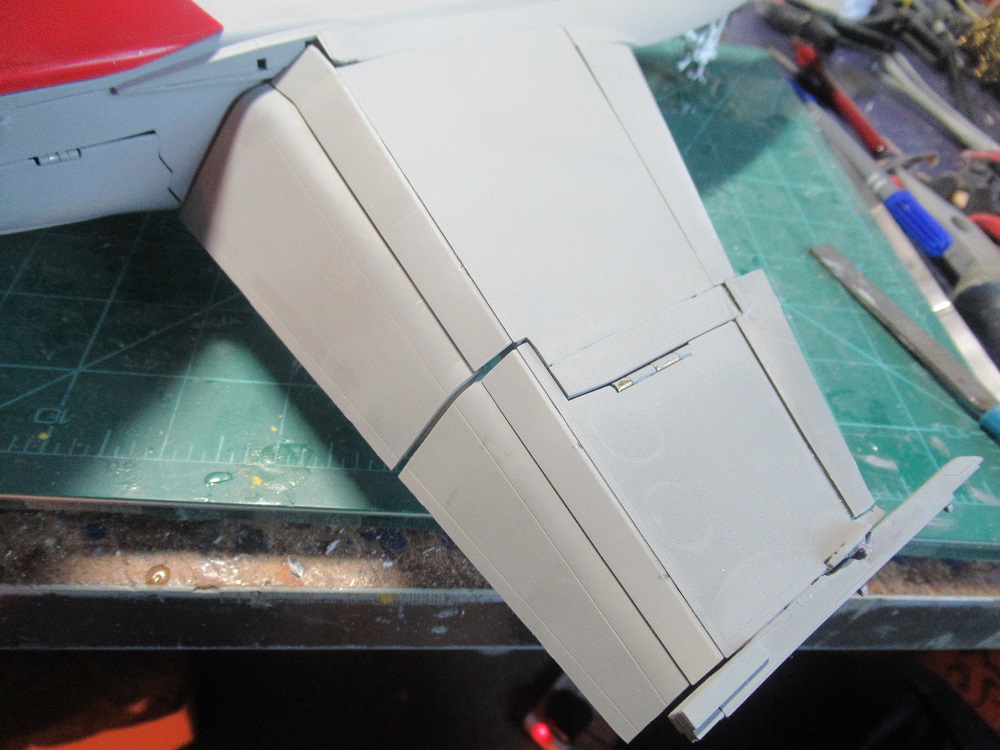

an done an they fold up an down very good an the nav lights are fitted in



[BOATMAN]



[BOATMAN]

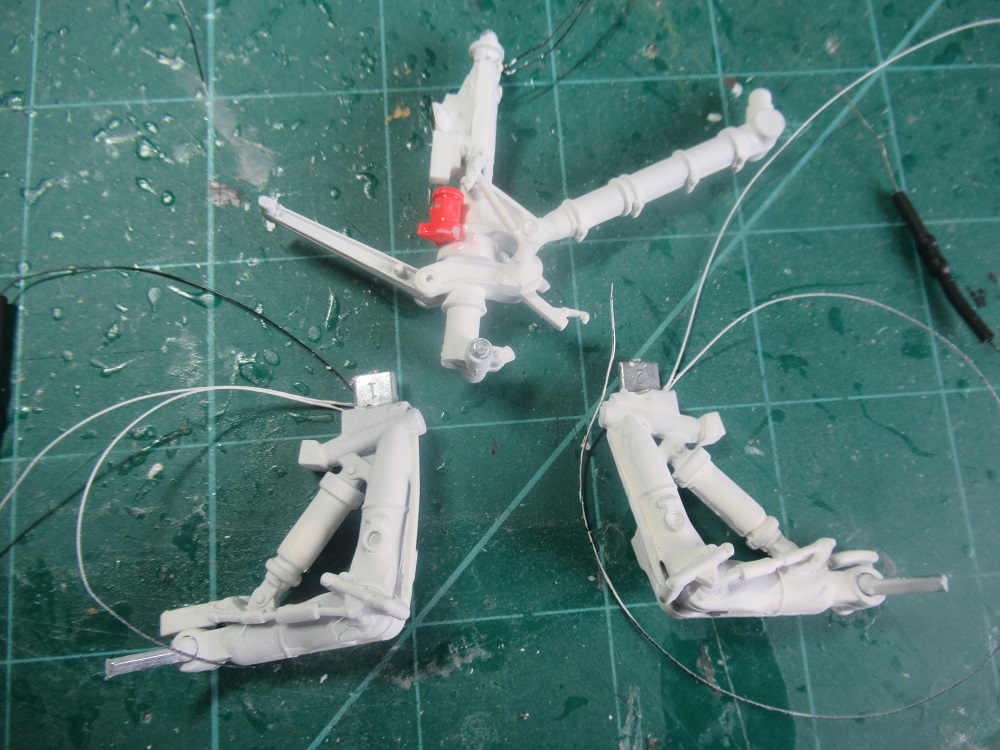

AN FITTING 2mm white leds for landin lights



[BOATMAN]

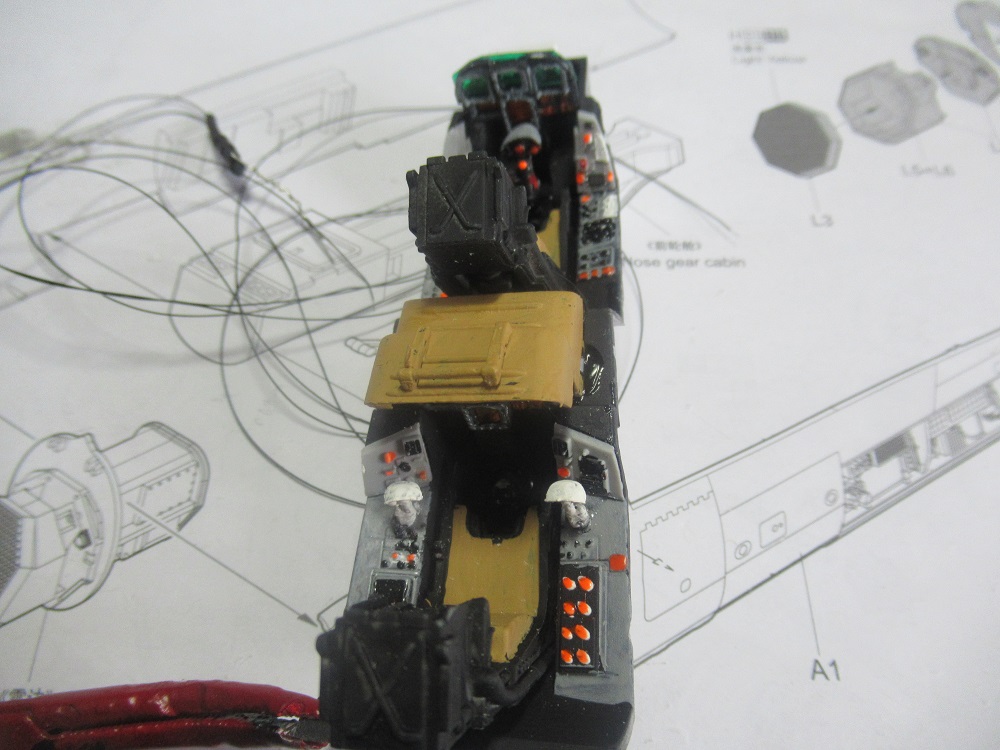

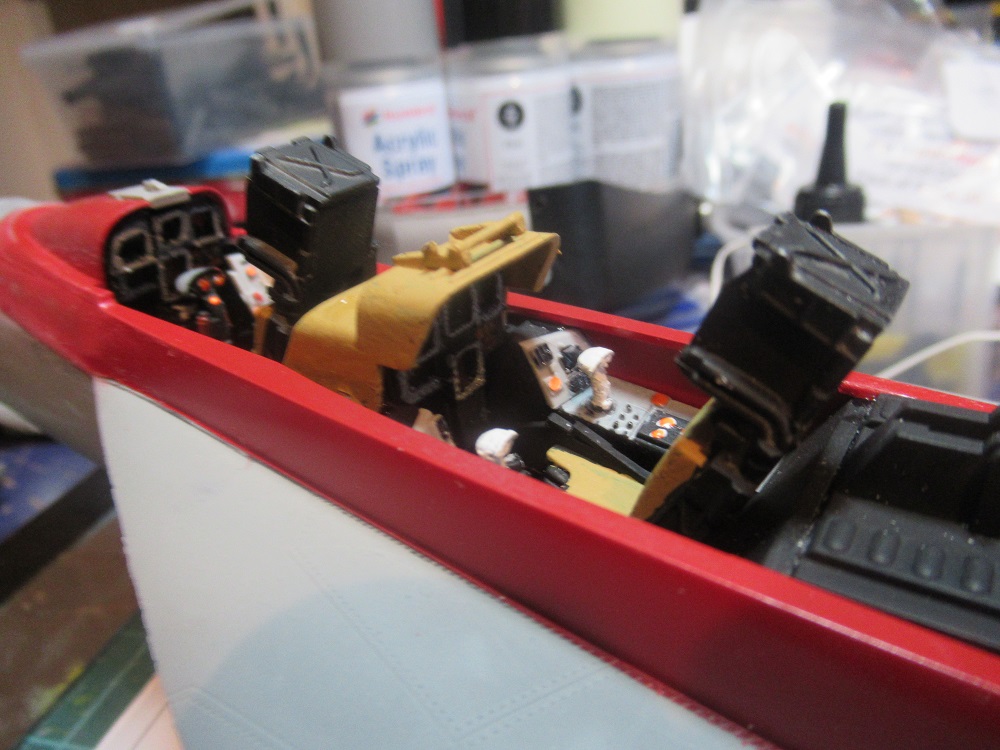

AN Building the office an ive drilled out the vid sreens an covered them with green acetate an fitted lights behind the instrement panels to light up the vid screens



[BOATMAN]

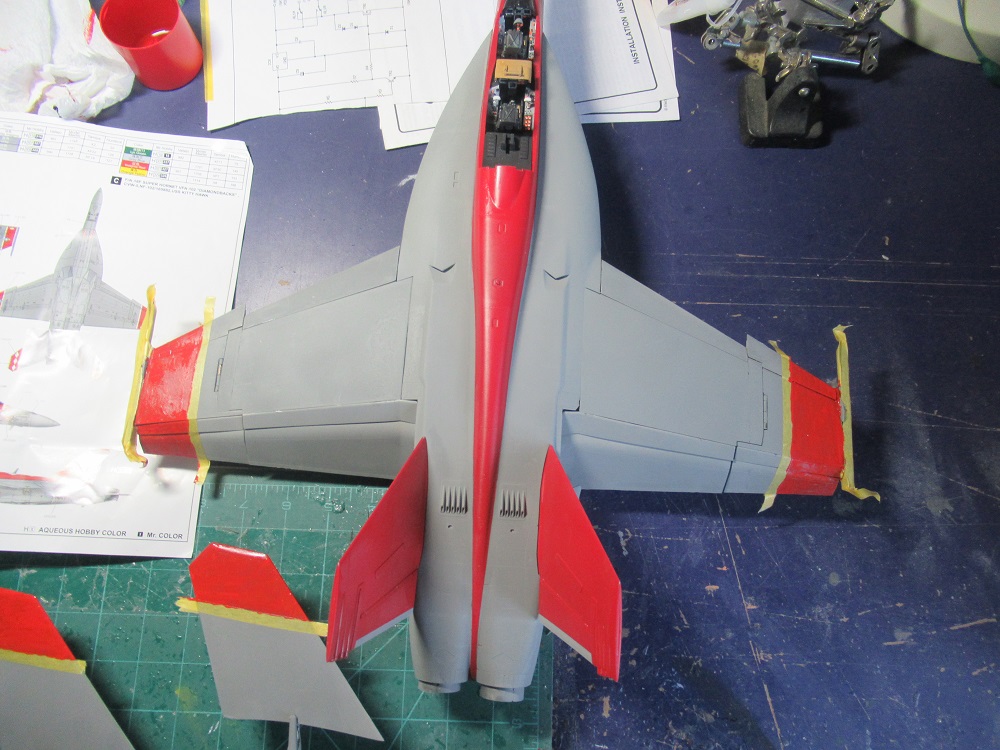

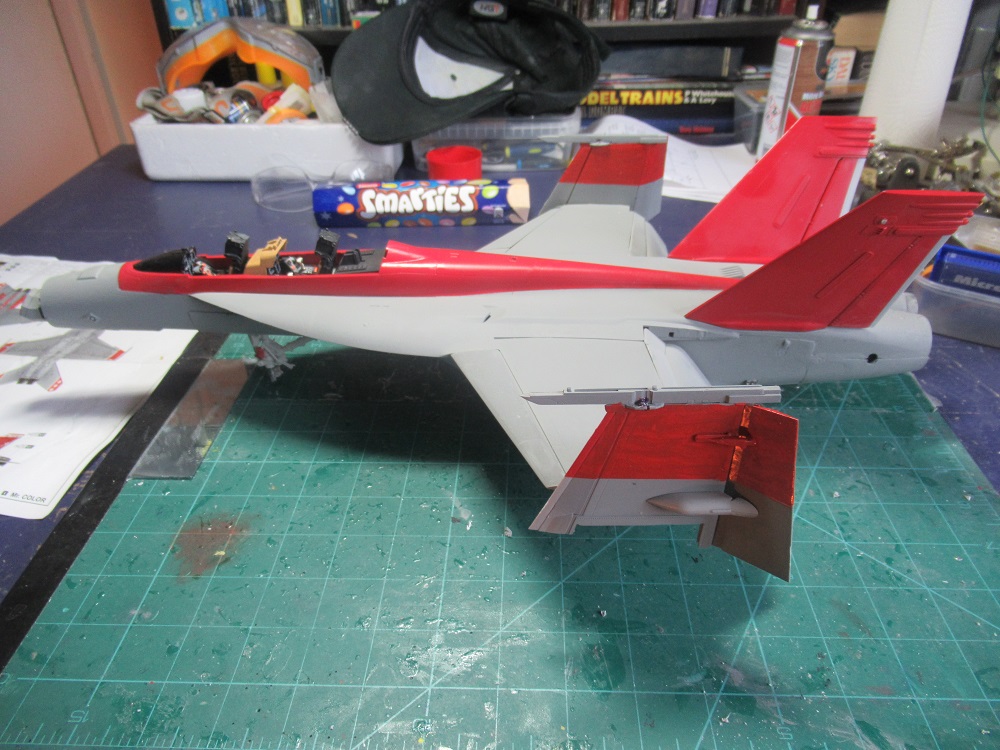

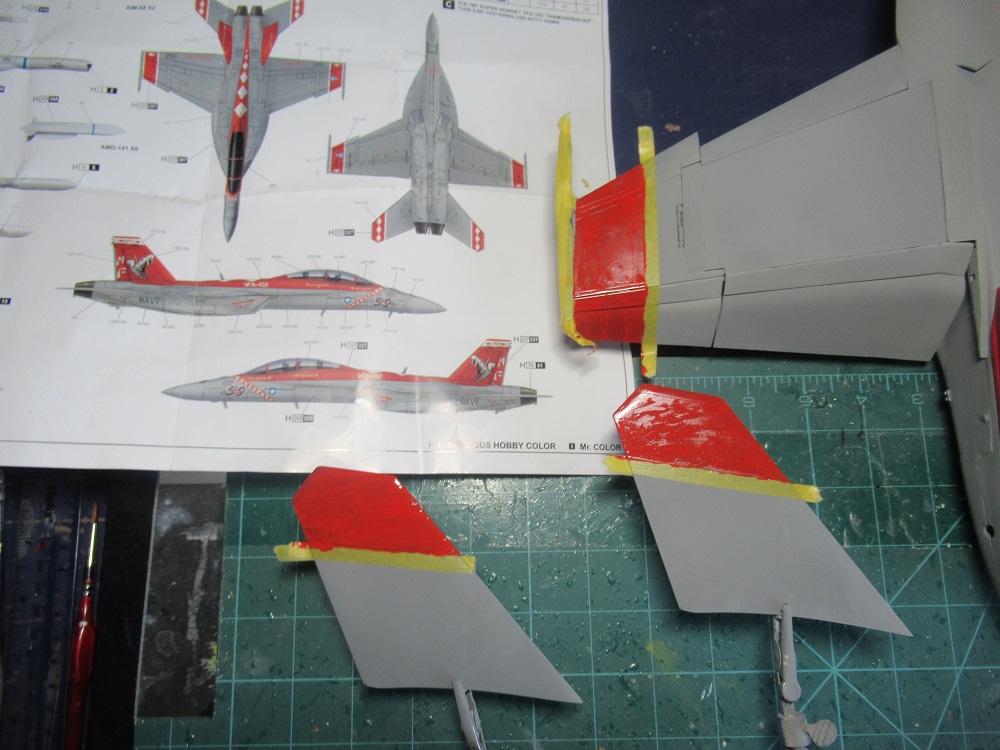

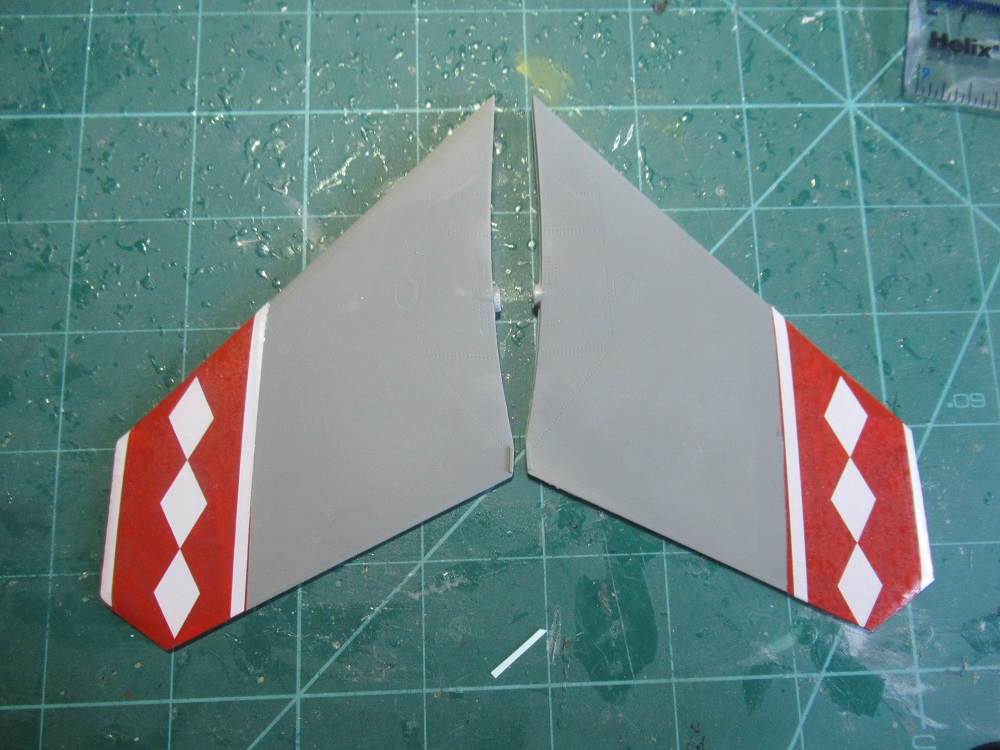

here ive fitted lights in the tails an sprayed them red



[BOATMAN]



[BOATMAN]

an frontnose wheel bay



[BOATMAN]

a few more pics
