Proteus by Moebius Models

[BOATMAN]

HI STEVE im enjoyin your build of the sub from F/V but lookin at the eletrics why have you fitted a resistor on the negative an not the posative that feeds the leds ? as thats how i wire mine up by fittin the resistor in the postive wire so it cuts power to the leds so not to fuse them ?
chrisb



[Belugawrx]

Great p/e and lighting work Steve ! I watched this movie when a kid, loved it



[BarleyBop]

Sometimes I find it easier to build something if I can draw it first

Yup! If you understand it you can draw it, and if you can draw it, you can build it. Not many folks appreciate that drawing is more about really seeing than pushing a pencil around!
Love your process, and I agree, the results speak for themselves!



[trekriffic]

HI STEVE im enjoyin your build of the sub from F/V but lookin at the eletrics why have you fitted a resistor on the negative an not the posative that feeds the leds ? as thats how i wire mine up by fittin the resistor in the postive wire so it cuts power to the leds so not to fuse them ?
chrisb

It's funny. The flea sized LEDs I used came prewired with the resistor on the positive leg. I have always used the negative leg when I solder my own resistors and it always works for me. I tried soldering using the positive leg before and it doesn't work for me. Go figure.



[trekriffic]

Yup! If you understand it you can draw it, and if you can draw it, you can build it. Not many folks appreciate that drawing is more about really seeing than pushing a pencil around!
Love your process, and I agree, the results speak for themselves!

Yes. One needs to grok the part or the relationship between parts.



[trekriffic]

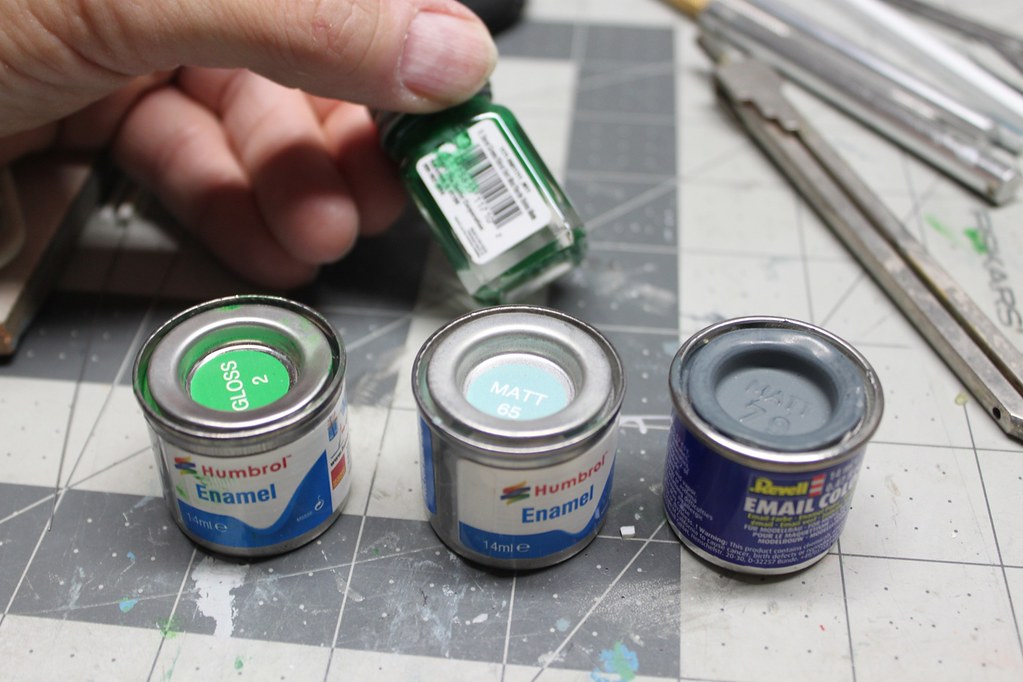

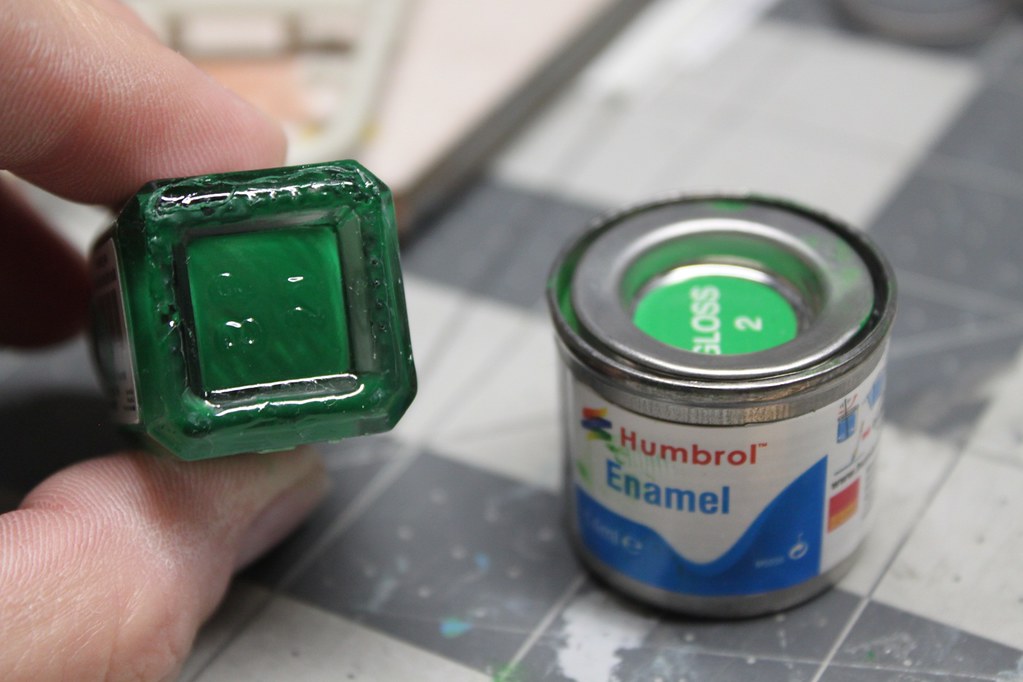

Enamel paint mixed for floor and countertops using three colors...


Proteus WIP-065 by Steve J, on Flickr


Proteus WIP-066 by Steve J, on Flickr

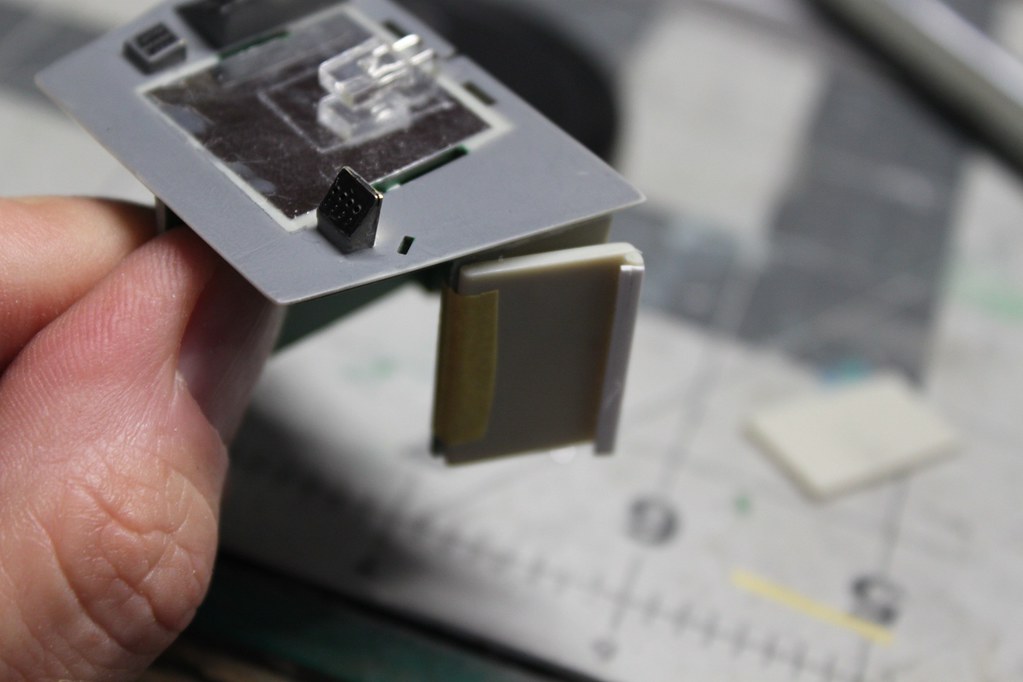

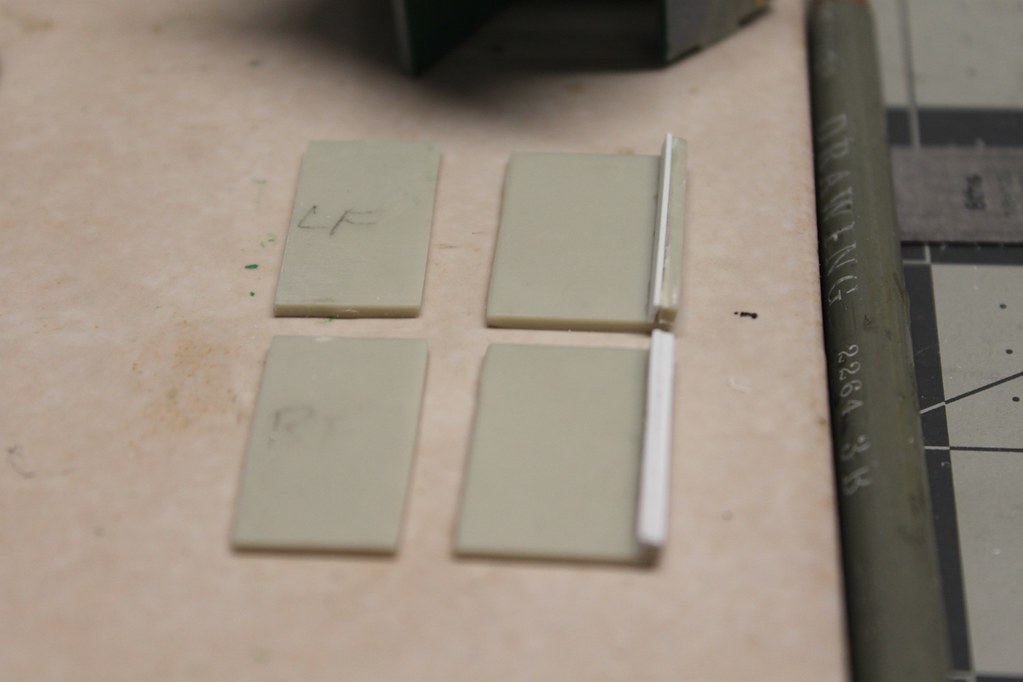

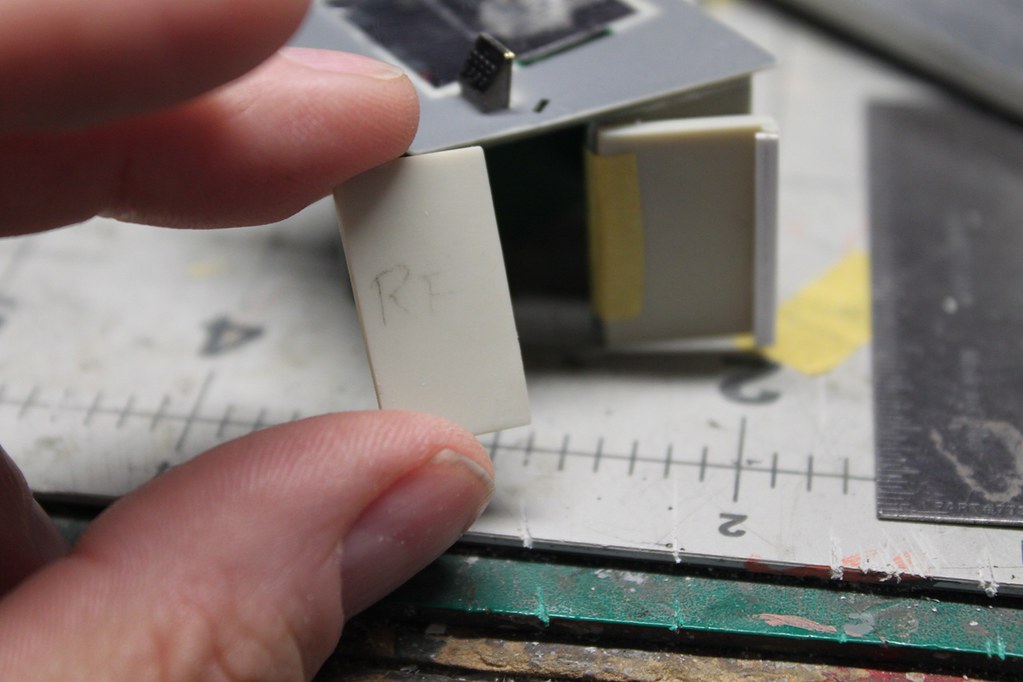

Sorting out the folding doors...


Proteus WIP-067 by Steve J, on Flickr


Proteus WIP-068 by Steve J, on Flickr


Proteus WIP-069 by Steve J, on Flickr

Communicator/Radio...


Proteus WIP-070 by Steve J, on Flickr


Proteus WIP-073 by Steve J, on Flickr

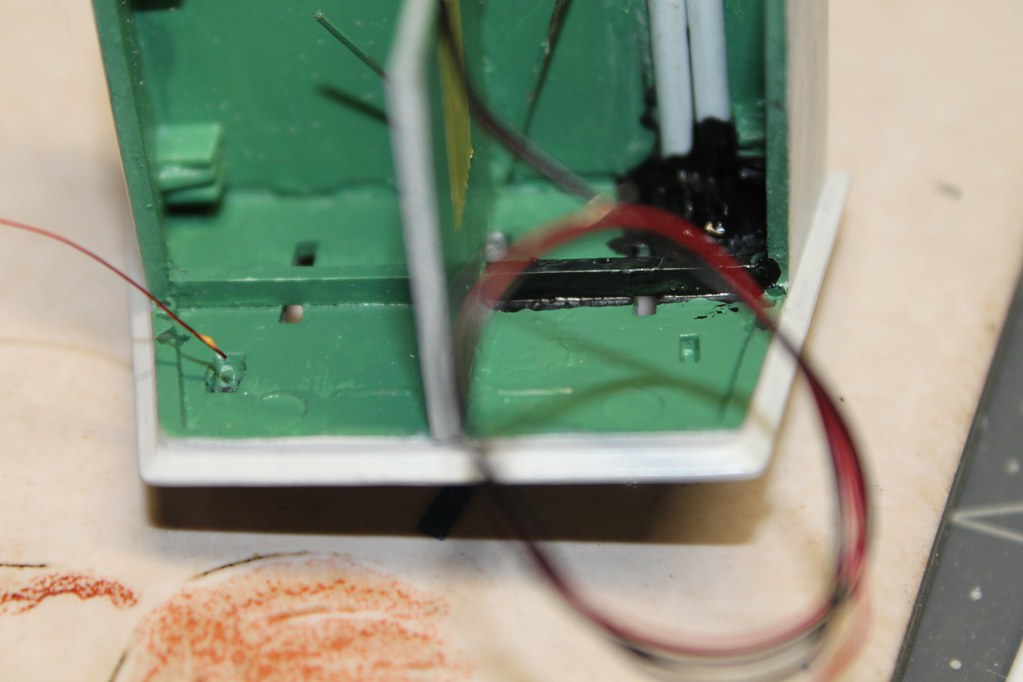

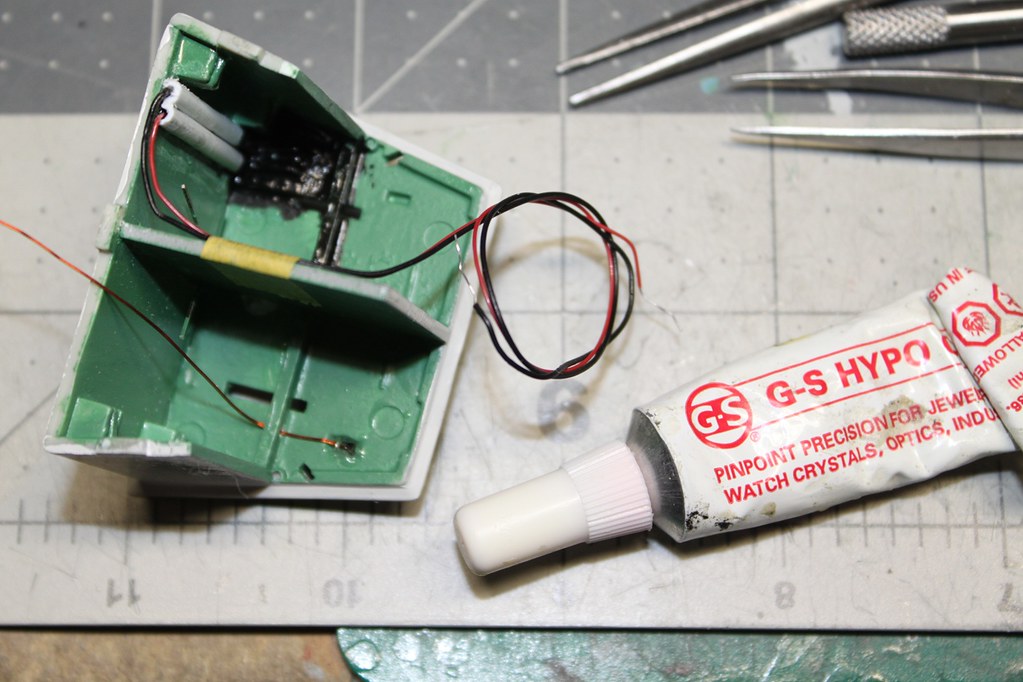

Wiring up the chart cabinet consoles and keypads...


Proteus WIP-071 by Steve J, on Flickr


Proteus WIP-072 by Steve J, on Flickr


Proteus WIP-074 by Steve J, on Flickr

Thanks for following along...



[trekriffic]

Hey there... We just rollin' along...

I think this is a handheld mic. It can be seen hung up on the top right corner of the chart tube housing with a long cord running up into an empty chart tube...

Proteus WIP-075 by Steve J, on Flickr

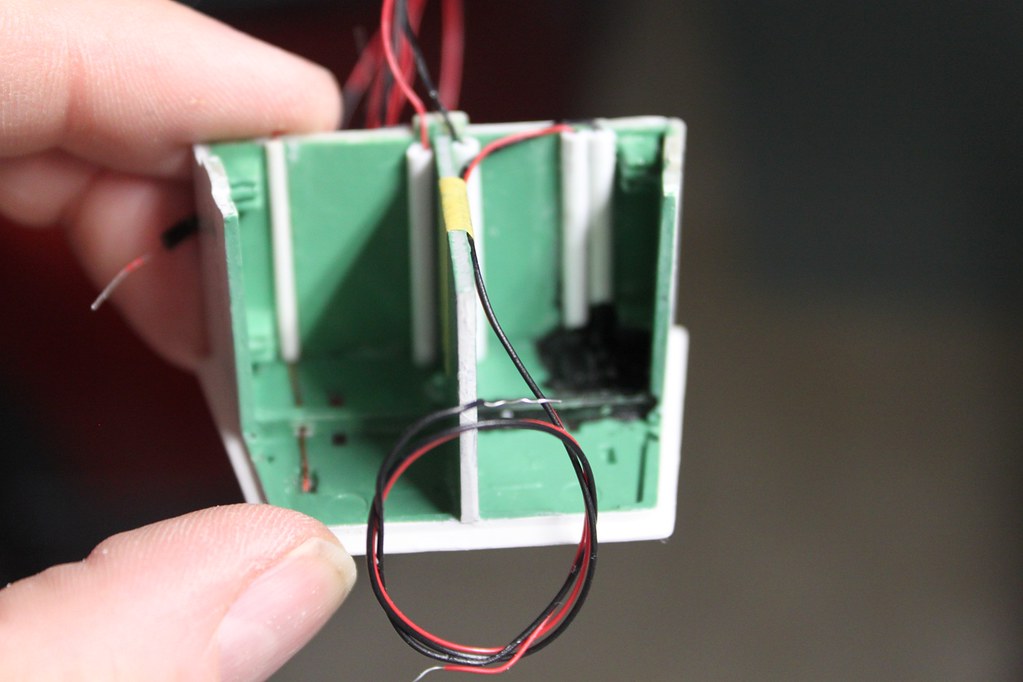

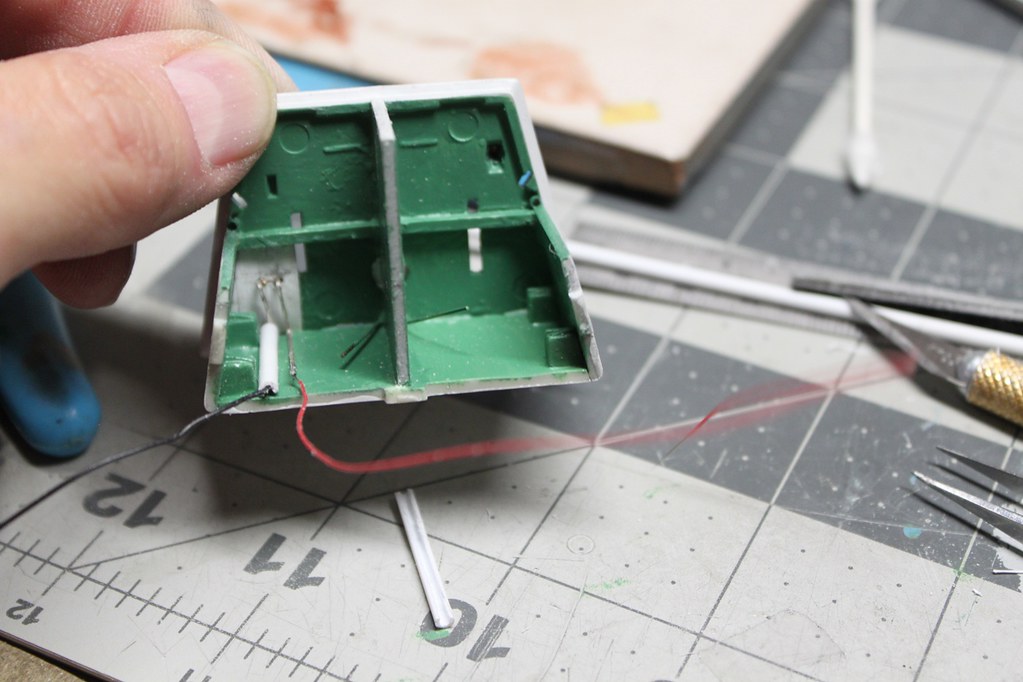

More wiring...


Proteus WIP-076 by Steve J, on Flickr

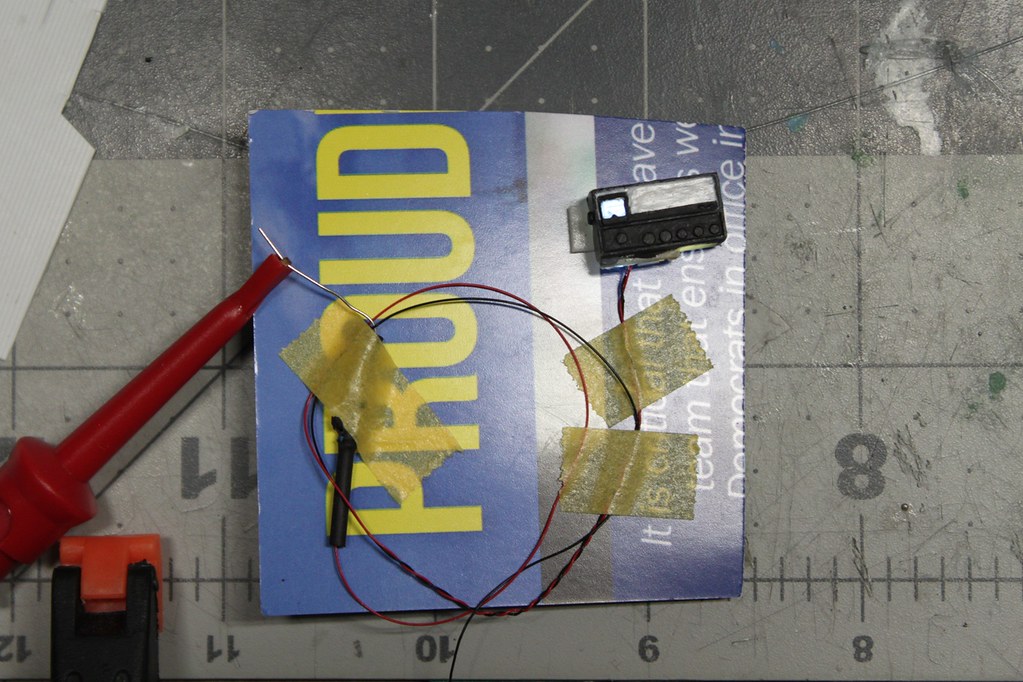

Light test...


Proteus WIP-077 by Steve J, on Flickr

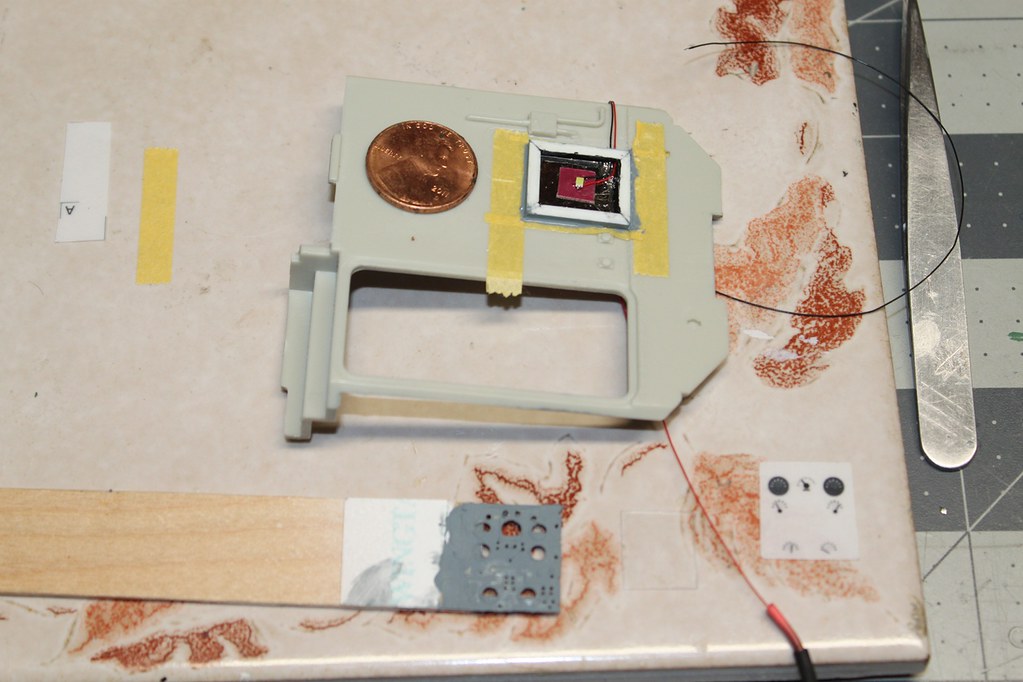

Light blocking...


Proteus WIP-078 by Steve J, on Flickr

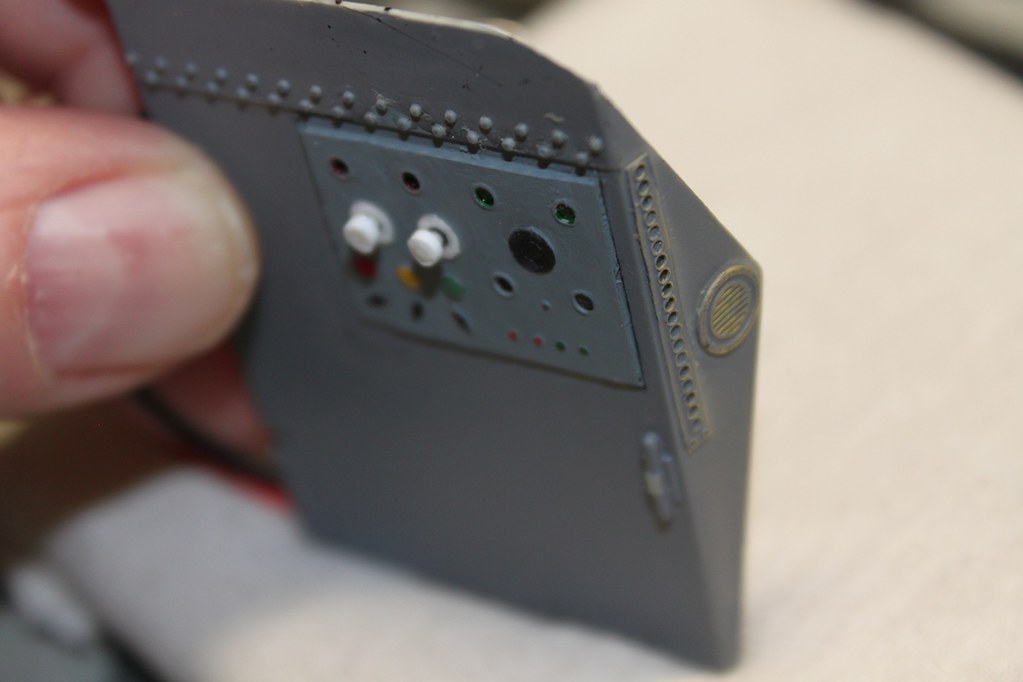

Control panel ...looked better after a little cleanup and the lights on...


Proteus WIP-079 by Steve J, on Flickr

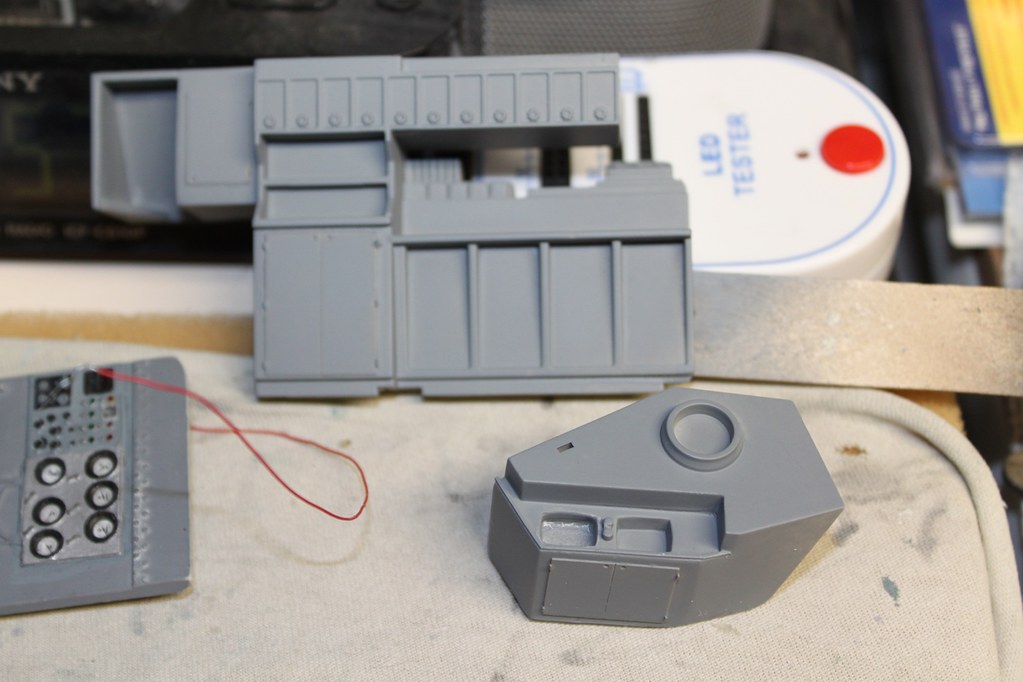

Subassemblies... The sidewalls especially mneed to be masked off (control panels) and painted light grey...


Proteus WIP-080 by Steve J, on Flickr

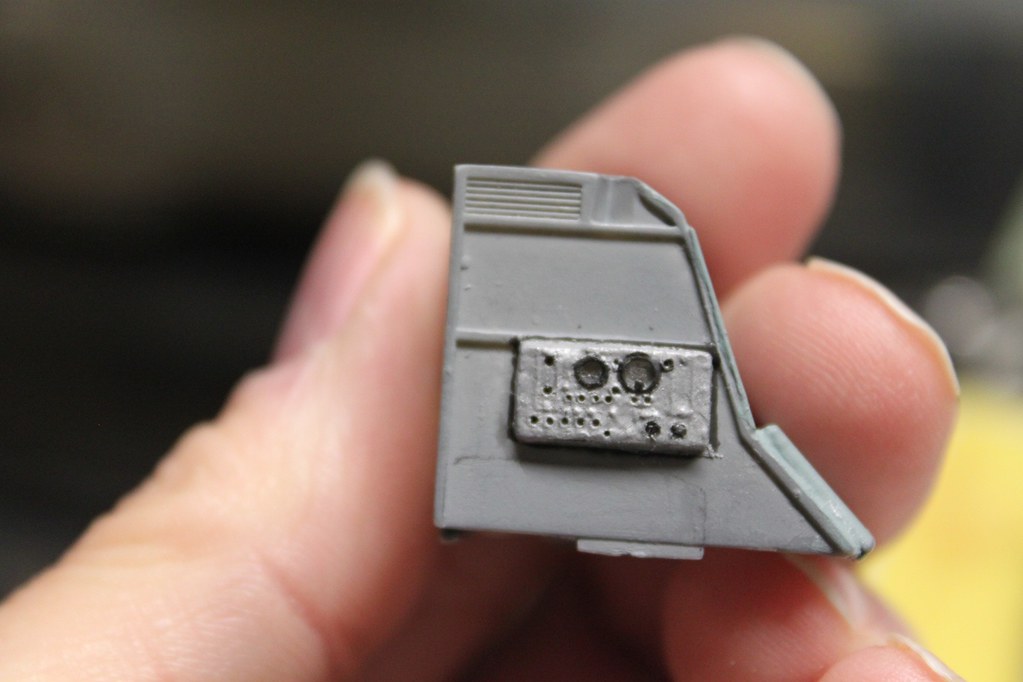

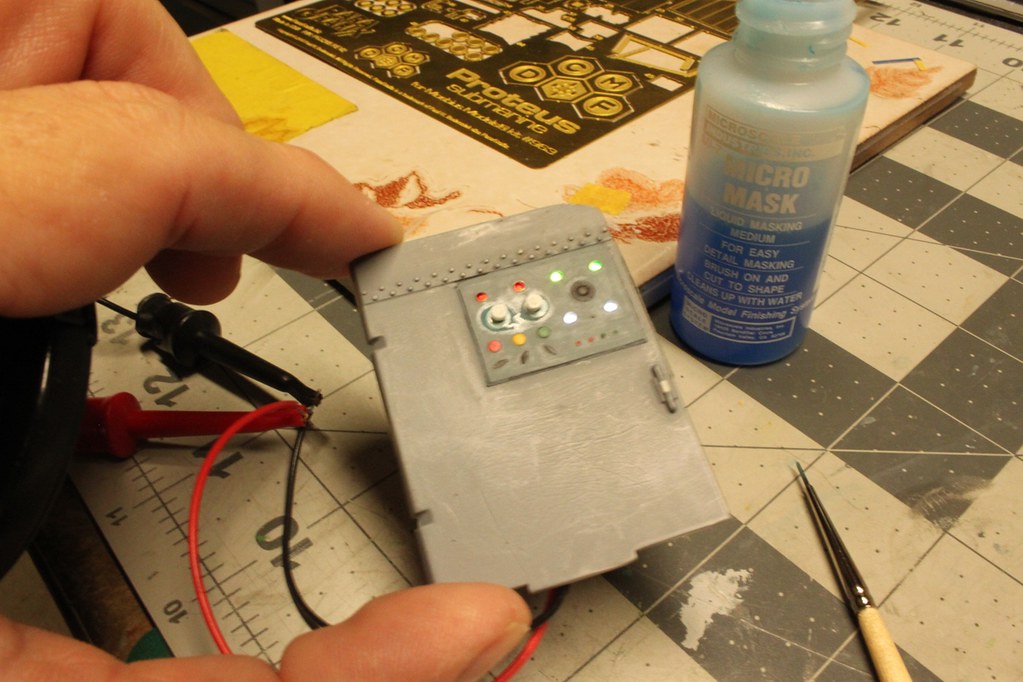

I added these knobs. Will paint them black...


Proteus WIP-081 by Steve J, on Flickr

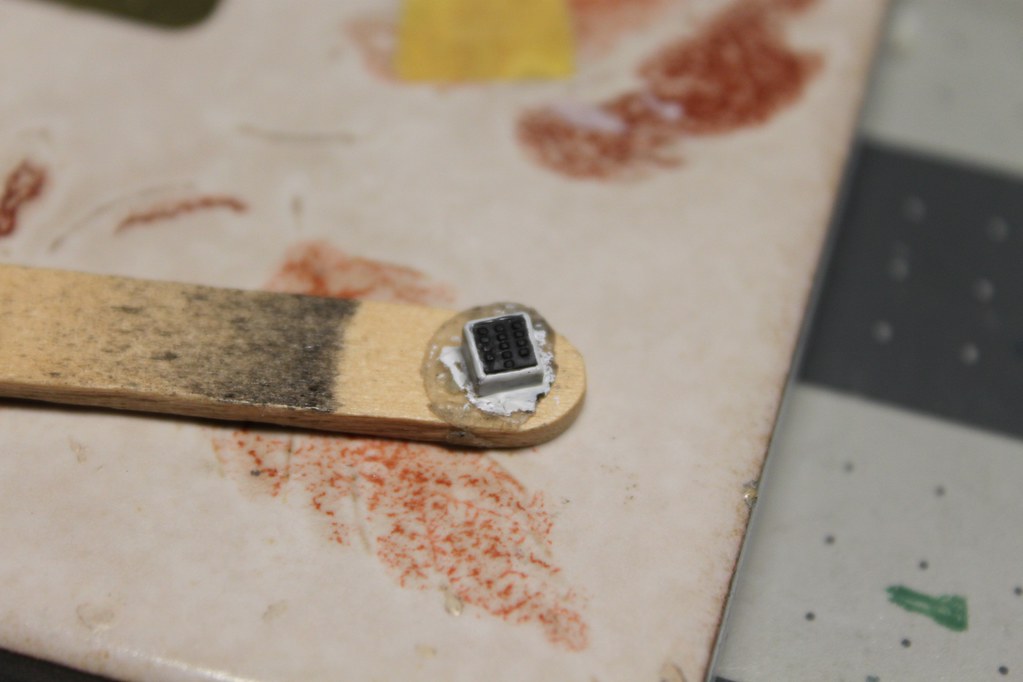

Another wee keypad. forget where it goes at the moment...


Proteus WIP-082 by Steve J, on Flickr

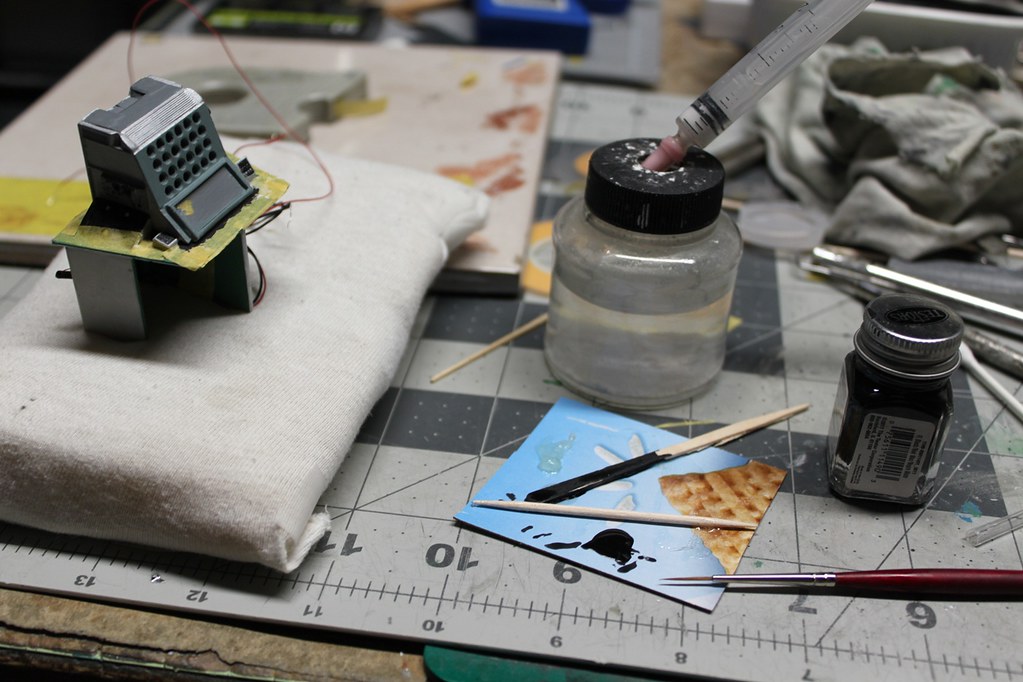

Using liquid mask prior to brushing the knobs with black enamel...


Proteus WIP-083 by Steve J, on Flickr

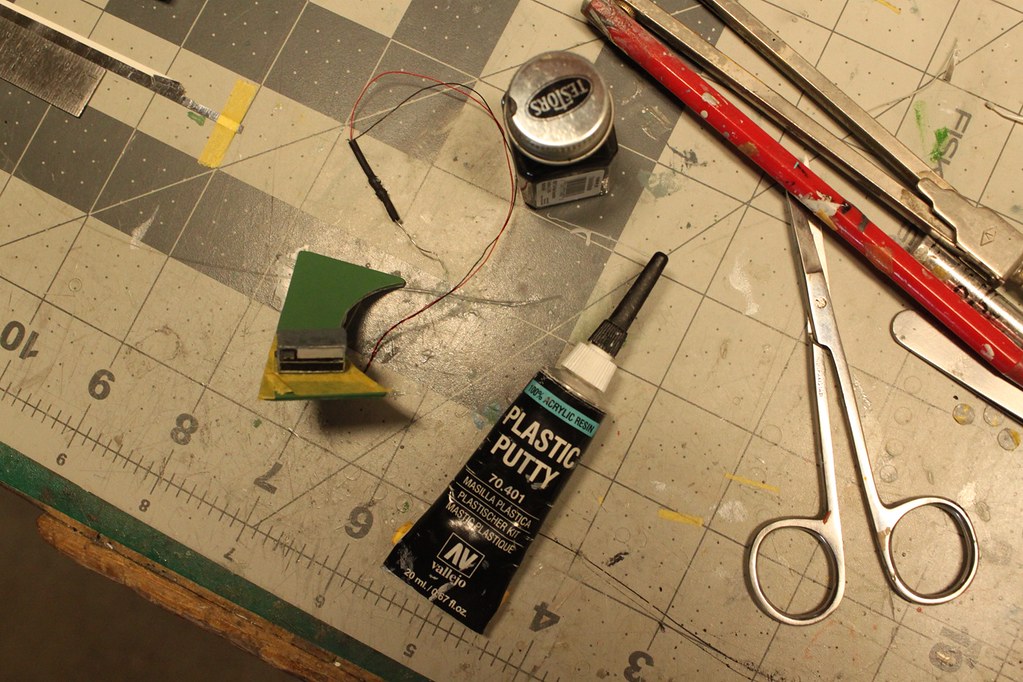

Masked off and puttied around the base of the comms station with Vallejo white plastic putty. Once dry I would use a thin brush to paint the putty black for light blocking...


Proteus WIP-084 by Steve J, on Flickr

Almost caught up! More to come!



[trekriffic]

Time for an update before the hour is up...

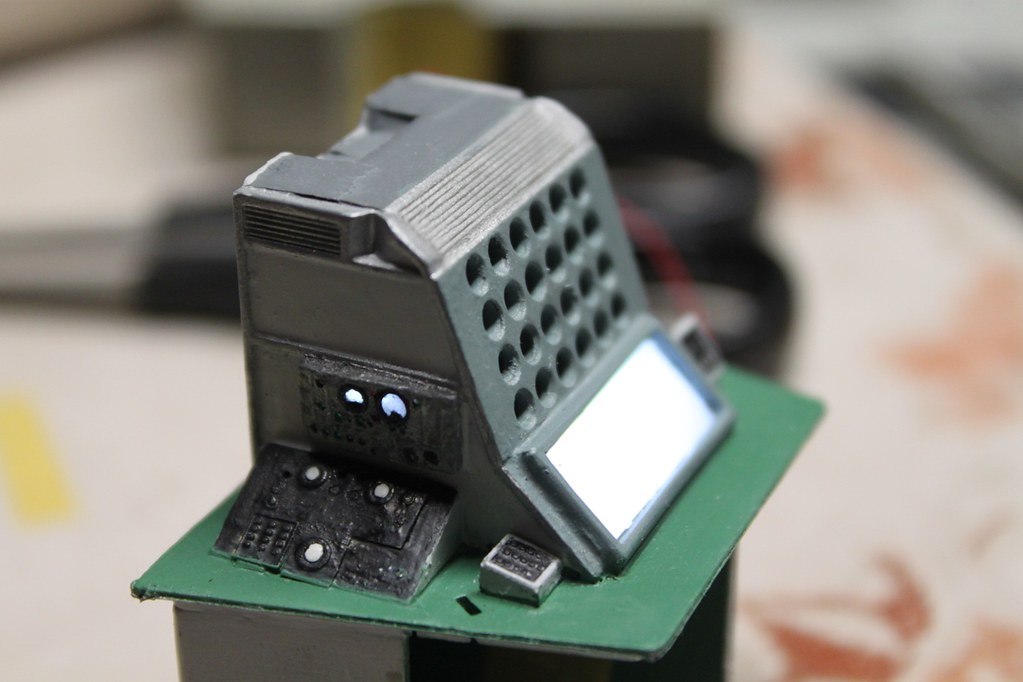

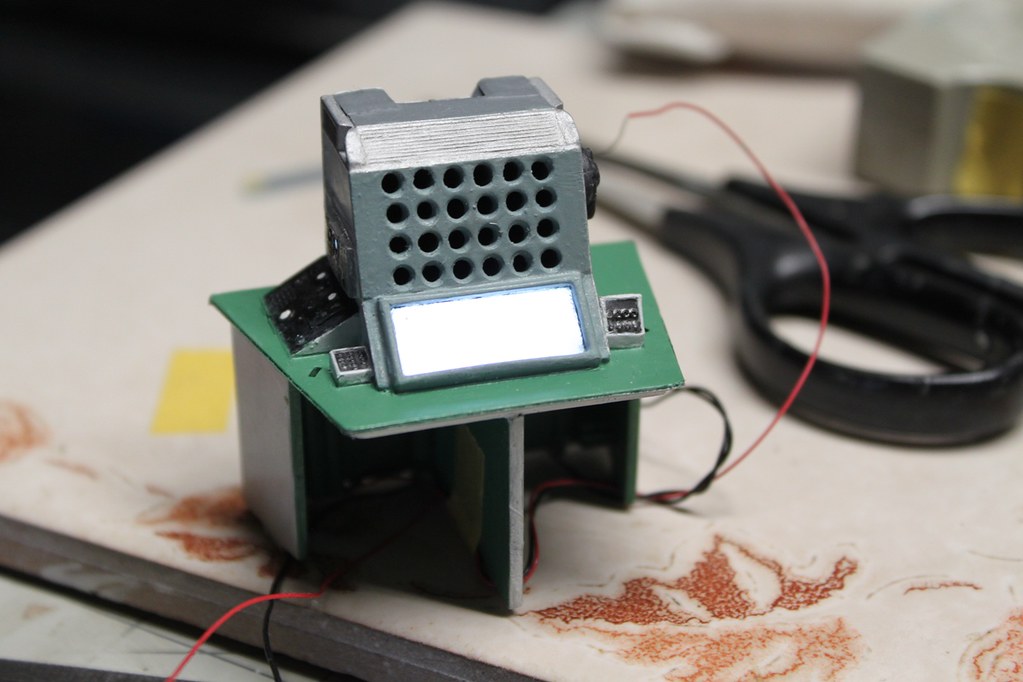

Communicator. Still needs more fine tuning. Need to find a decal that looks like a silverish speaker cover...


Proteus WIP-085 by Steve J, on Flickr

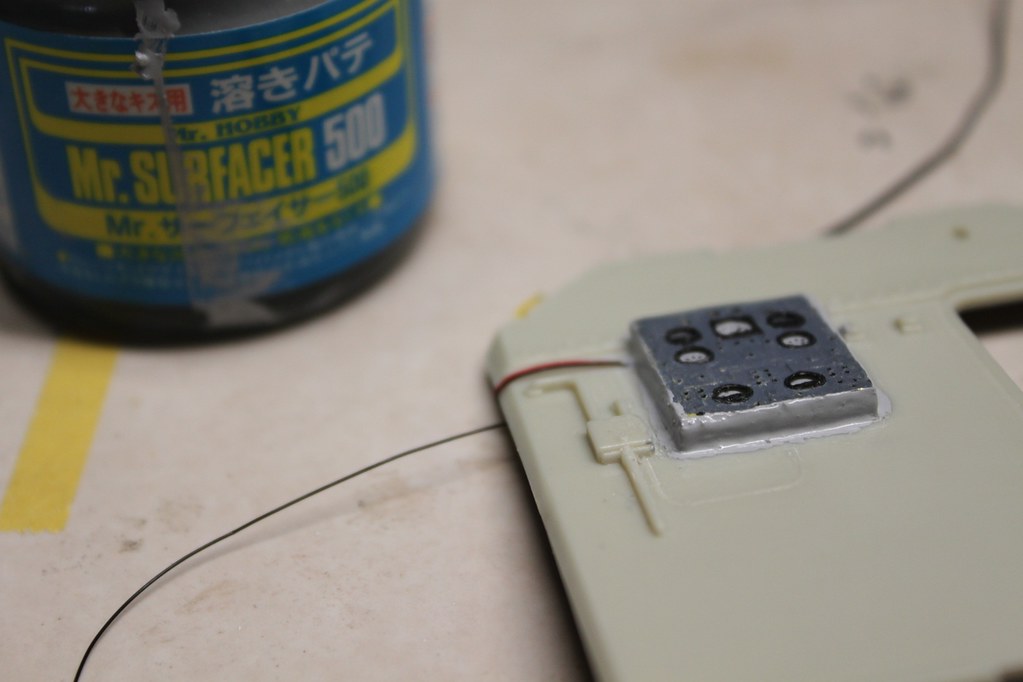

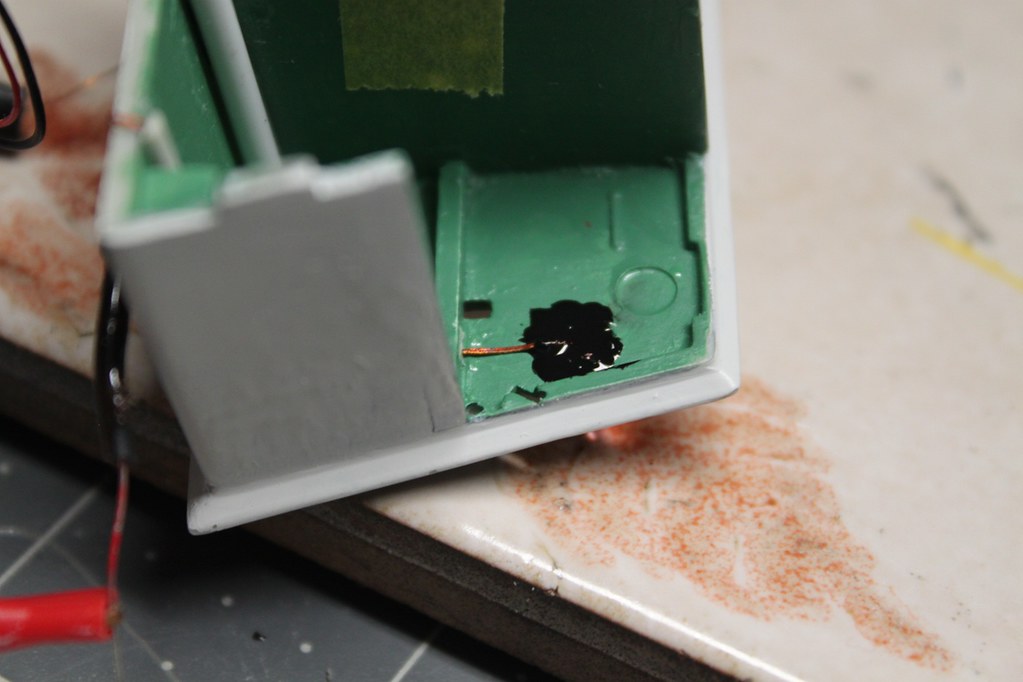

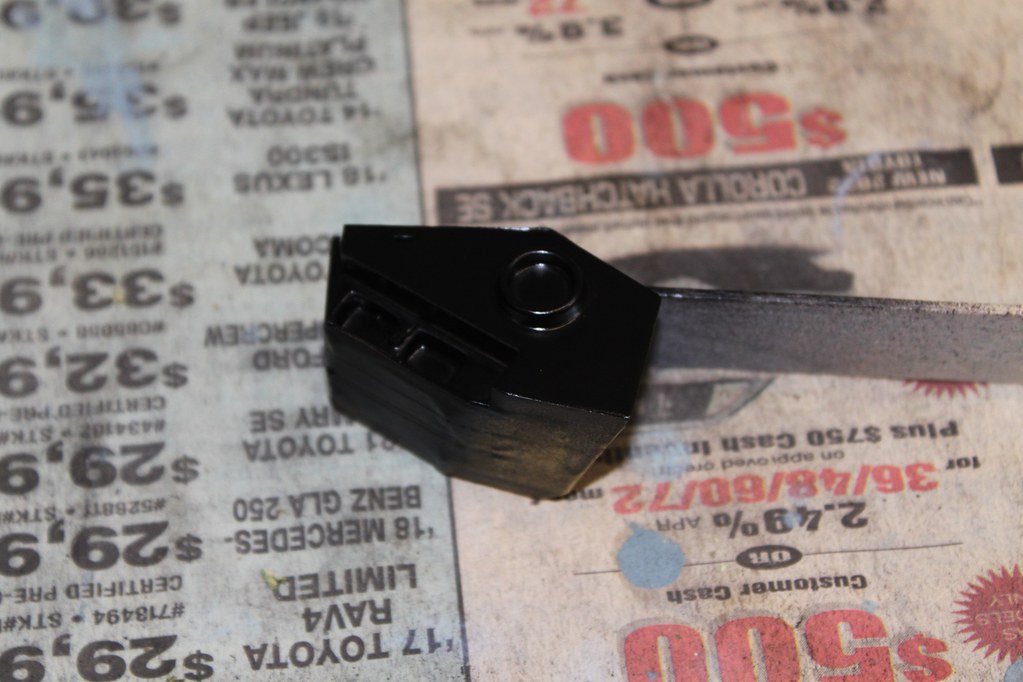

Light blocking with Mister Surfacer and black paint...


Proteus WIP-086 by Steve J, on Flickr

Almost there...


Proteus WIP-087 by Steve J, on Flickr

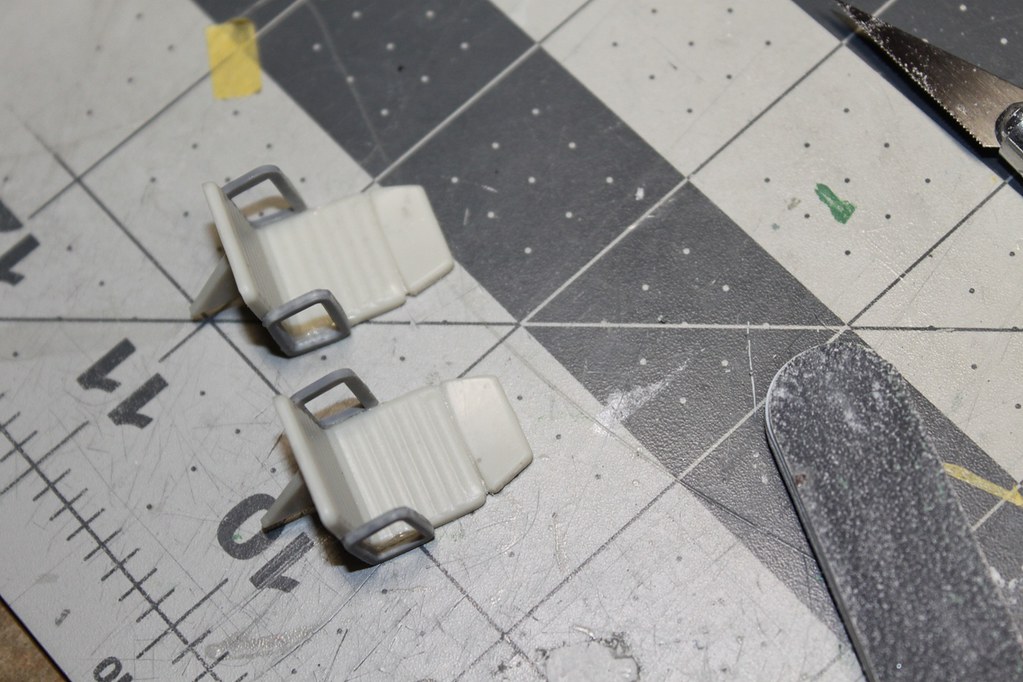

Some reshaping of the chair backs. Glued the arms on...


Proteus WIP-088 by Steve J, on Flickr

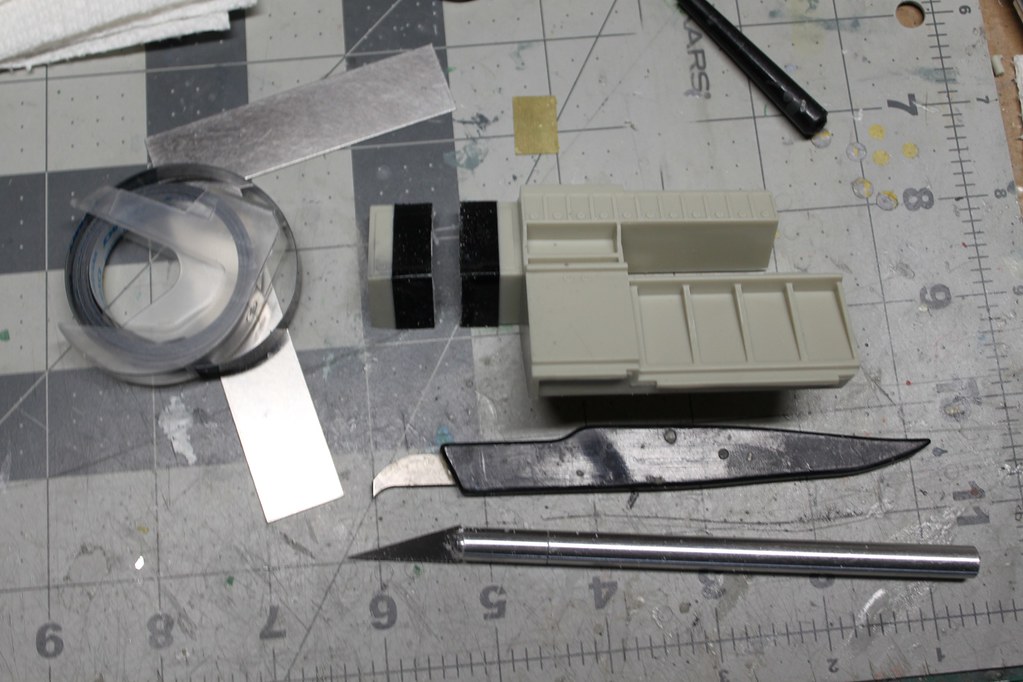

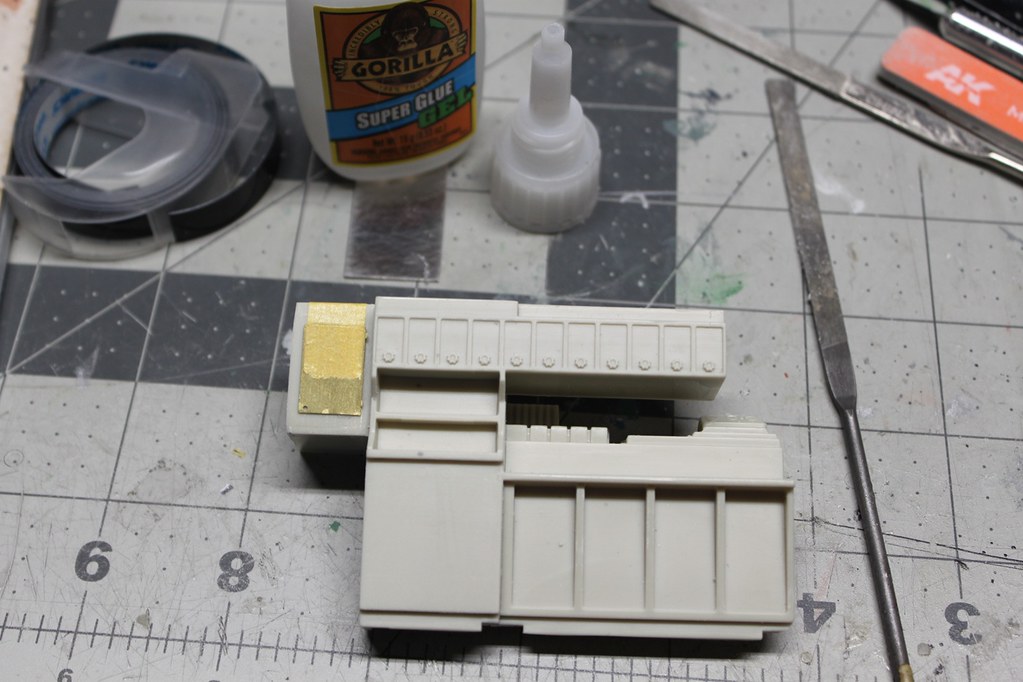

Removing section of lefthand cabinet in lab. This section should be open...


Proteus WIP-090 by Steve J, on Flickr

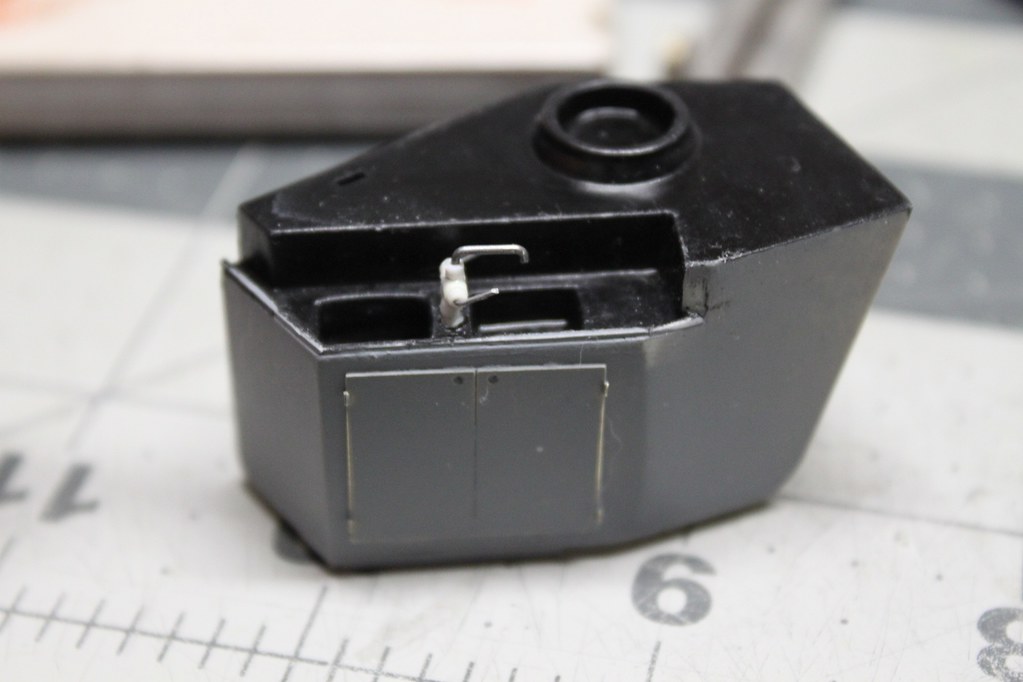

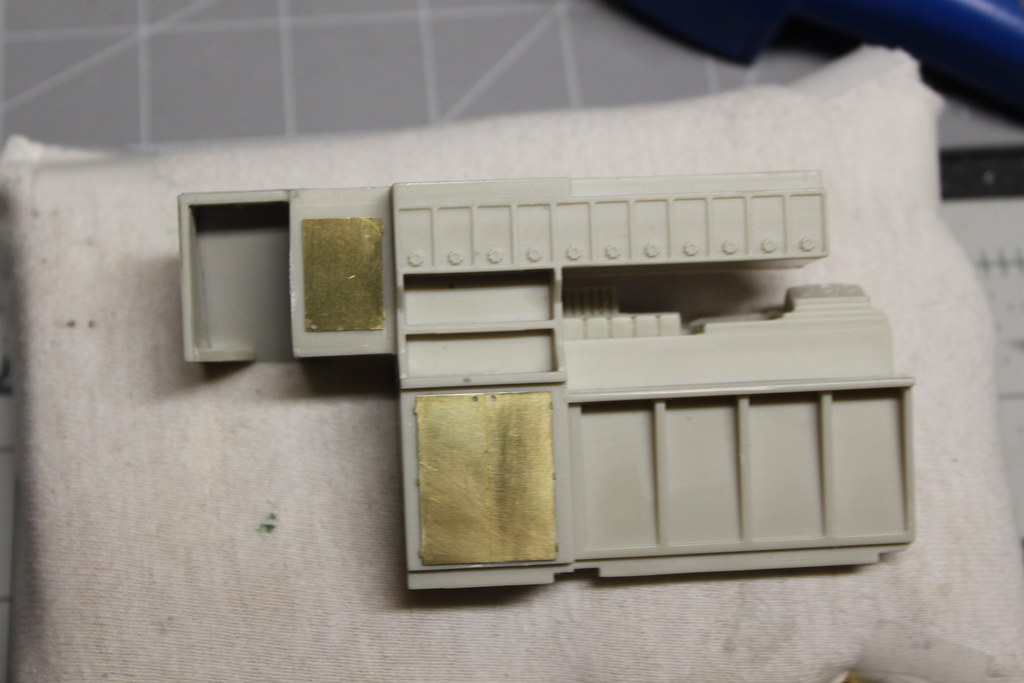

The now shortened cabinet got a new door of photo-etch brass...


Proteus WIP-091 by Steve J, on Flickr

The finished lab cabinets ready for priming...


Proteus WIP-092 by Steve J, on Flickr

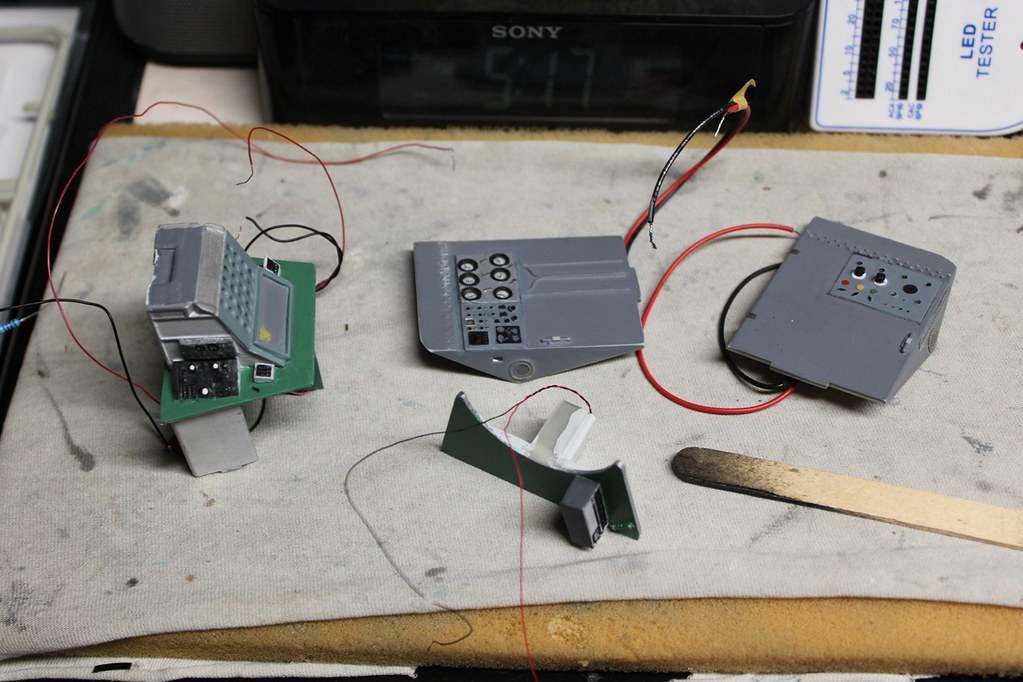

Subassemblies ready for installation...


Proteus WIP-093 by Steve J, on Flickr



[trekriffic]

Quick video…more to follow….



Proteus WIP Video- 001 by Steve J, on Flickr



[trekriffic]

Long time no update so here goes...

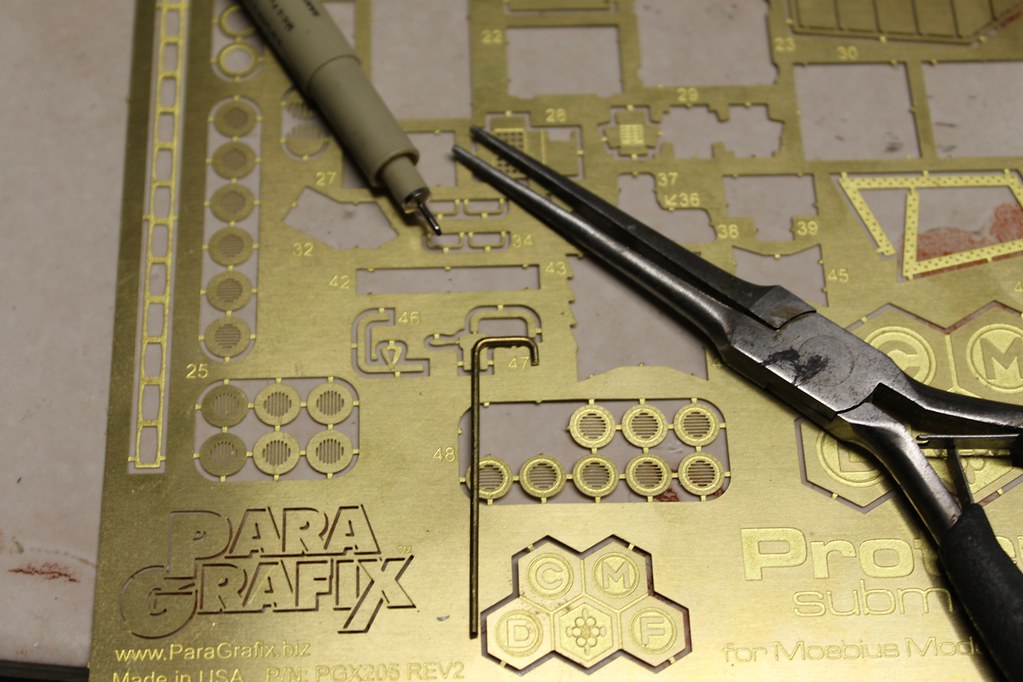

The ParaGrafix photo etch included a folded brass faucet for the lab's sink.
The model kit did not include a faucet for the single sink but the etch instructions said if the modeler chose to make their
own faucet from scratch they could use the photo etch faucet as a template.
In the image you can see where I have bent some piano wire to the shape and size of the brass.
A test with the the lab sink; however, revealed that the PE was oversized.
So I decided to ignore the PE and just use the screen grabs of the faucet from the movie to make my own measurements:


Proteus WIP-094 by Steve J, on Flickr

I drilled and augered out a hole for the second sink seen in the movie:


Proteus WIP-095 by Steve J, on Flickr

I framed around the opening underneath the countertop to make the sides of the sink which were then filed and sanded to their slightly curved shape. then I glued a rectangular piece of some old .020 black and white paint dappled styrene sheet for the sink bottom:


Proteus WIP-096 by Steve J, on Flickr

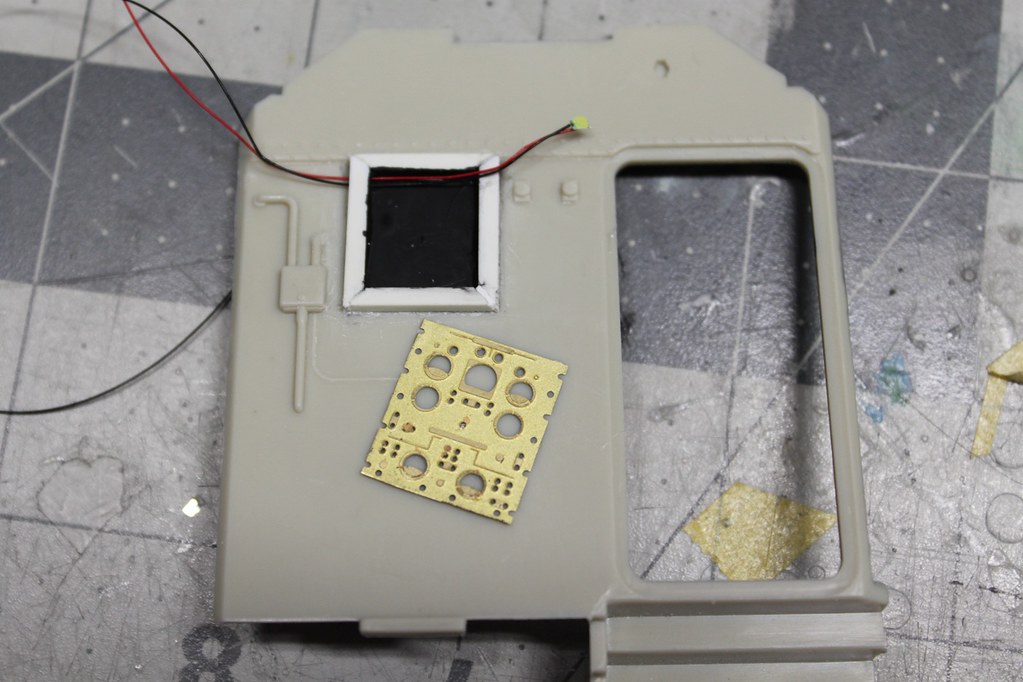

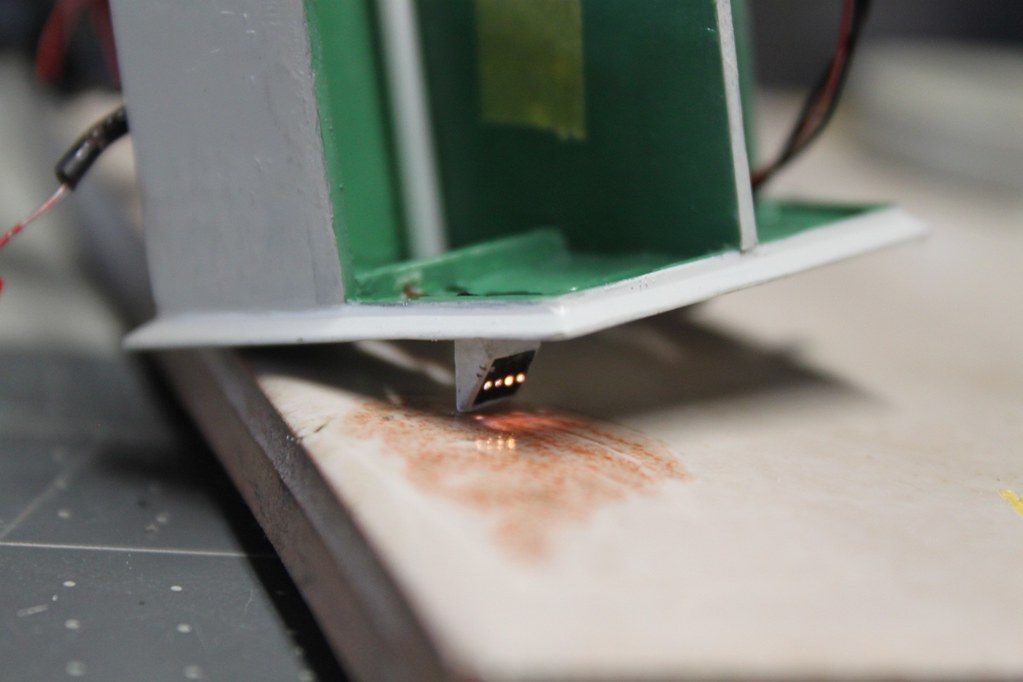

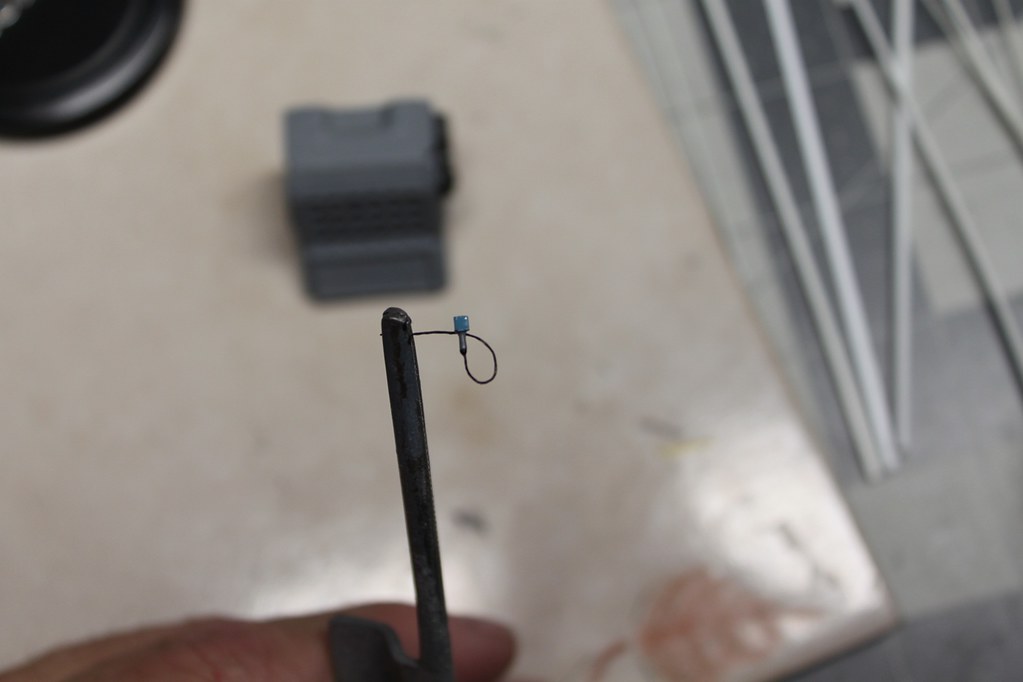

Tiny SMD LED and framing plus light blocking for lighting this brass control panel on the rear wall:


Proteus WIP-097 by Steve J, on Flickr

Subassemblies primed with Krylon grey primer. - starboard wall and control panels, lab sink, and lab counters and cabinet:


Proteus WIP-098 by Steve J, on Flickr

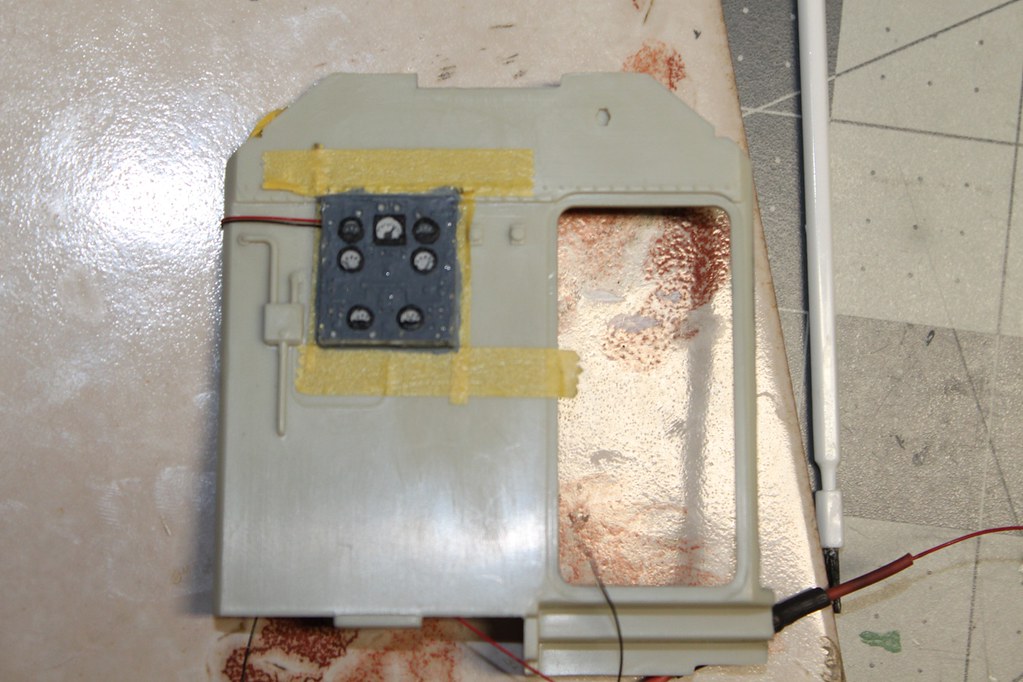

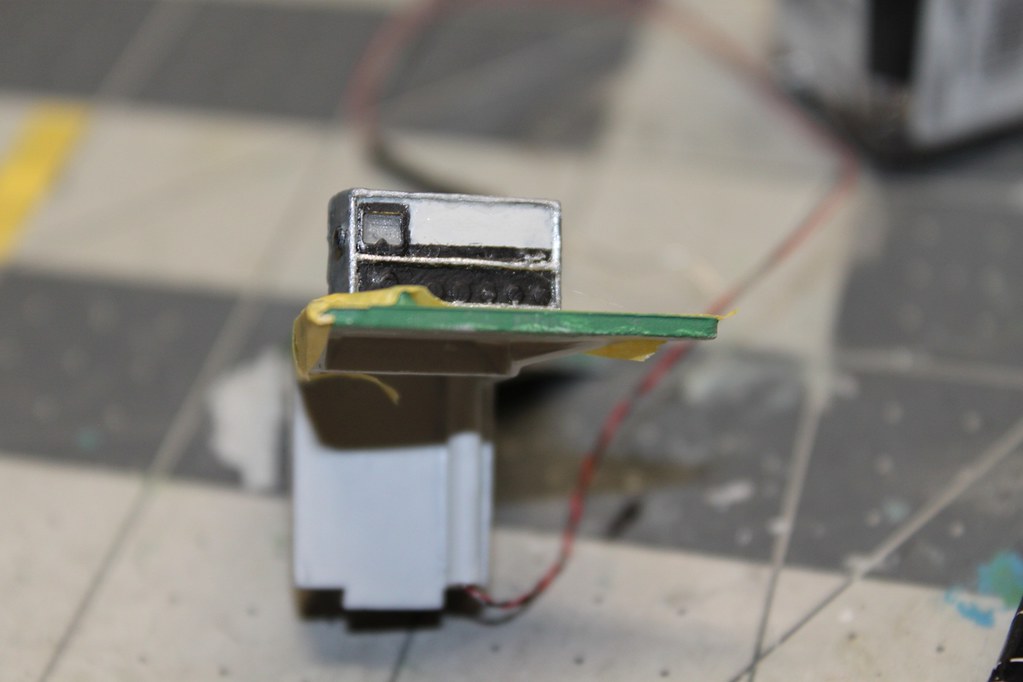

Clear (?) Gorilla tape used to hold LED in place.
Later on I learned there is a purplish tape layer that is hard to get under the edge of so I gave up trying in this instance but now I know better, The LED is laid atop facing away from the tape so the color has no effect on the white glow of the gauges and buttons on the control panel:


Proteus WIP-099 by Steve J, on Flickr

Lab sinks and countertops sprayed with Krylon satin black. The sinks will be white and steel:


Proteus WIP-100 by Steve J, on Flickr

Rear wall PE control panel brushed with medium grey enamel before gluing to framing:


Proteus WIP-102 by Steve J, on Flickr

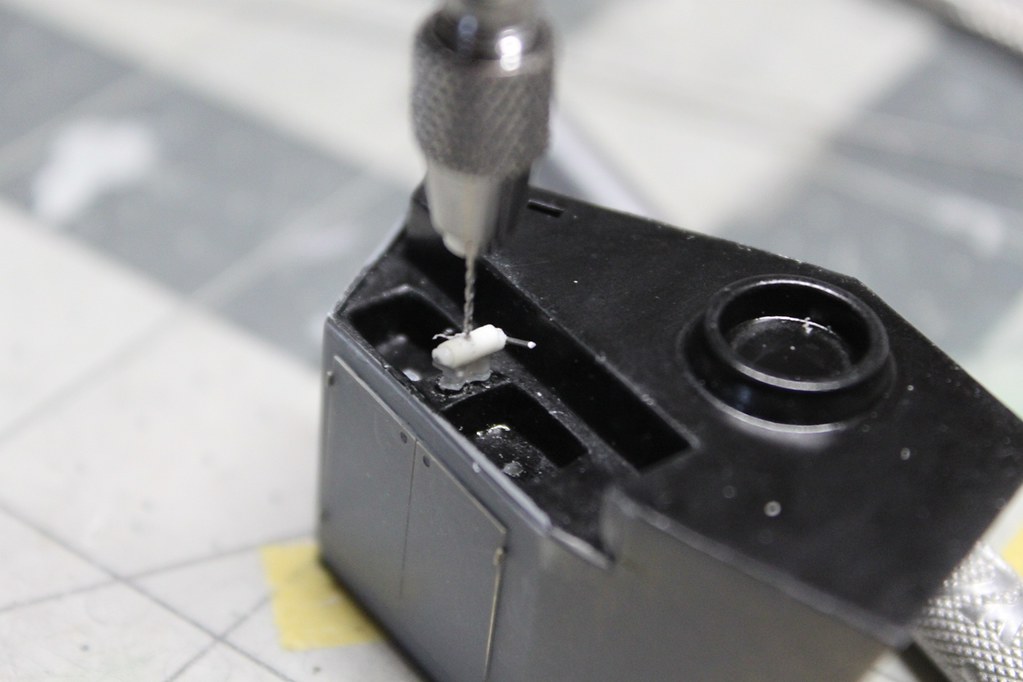

Making the faucet... drilling a hole for inserting the U-shaped thin piano wire piece into the plastic tubing and piano wire valves:


Proteus WIP-103 by Steve J, on Flickr

Finished lab faucet and valve assembly made using piano wire and three sizes of plastic rod and tubing:


Proteus WIP-105 by Steve J, on Flickr

The next post will have some interesting stuff.



[BarleyBop]

That worked out great! And I bet it was fun, too!



[trekriffic]

That worked out great! And I bet it was fun, too!

Hello sir! As far as fun goes... It started out as fun but then I got to futzing with different clearcoats until I had a mess and had to sand off some clear acrliyc lacquer layers down to the paint layer before again airbrushing a flat black enamel countertop. After letting it cure a few days, I applied a Krylon satin clearcaot from the spray can.
It looks beeeeautiful now!

Anyway, here are some more images of my progress... slow.... and steady......... progress... :thinking:

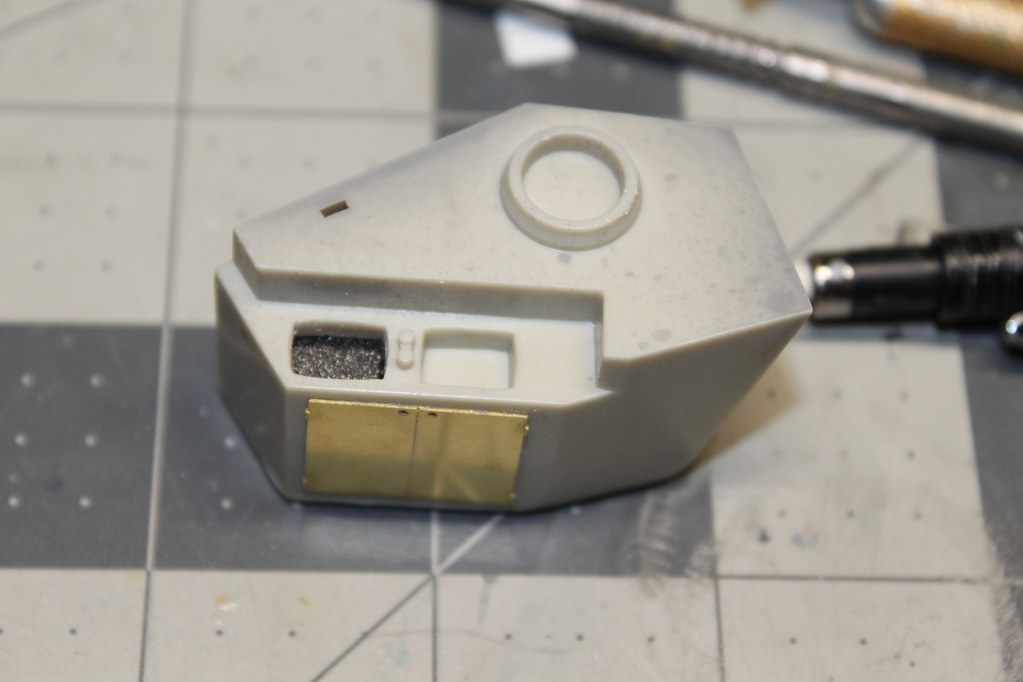

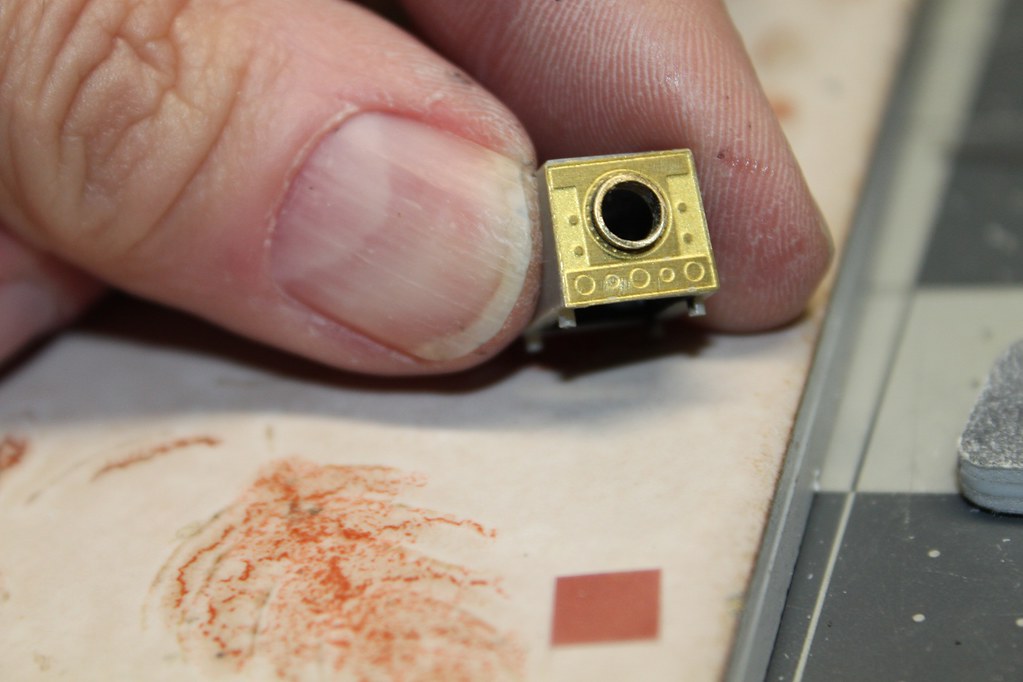

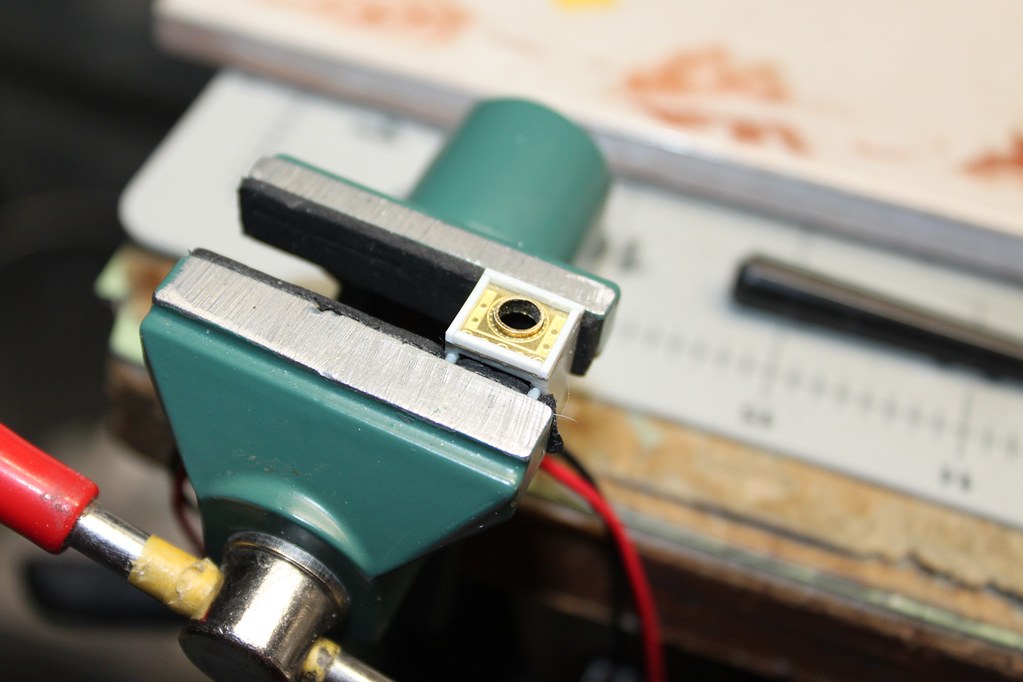

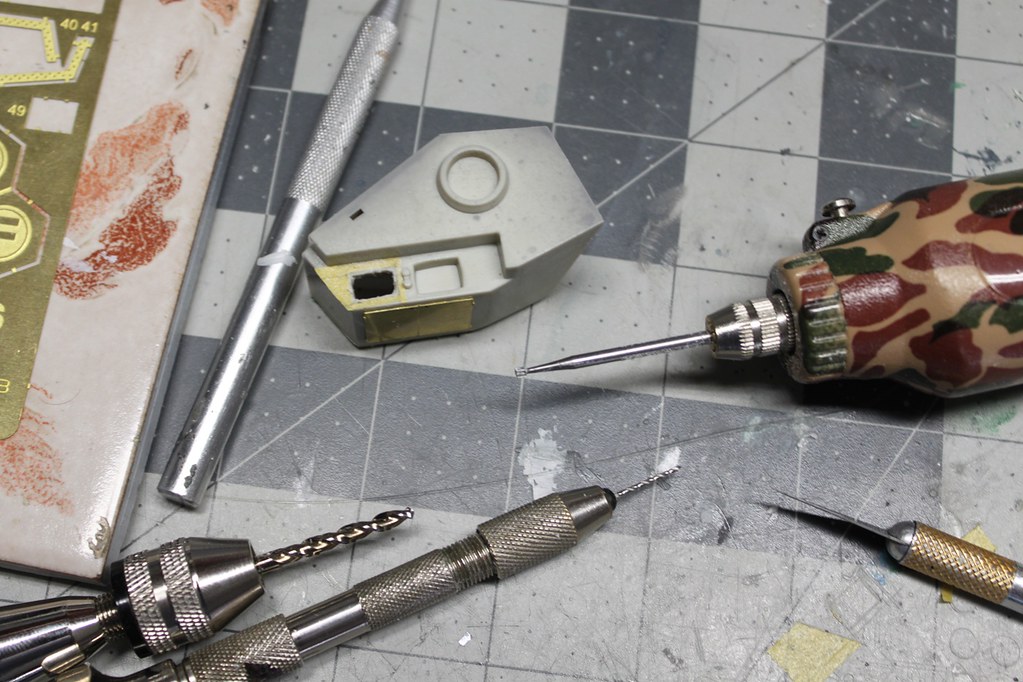

I opened a hole in the front of the monitor and inserted a ring of brass tubing for the lit screen.
Then I glued the more detailed PE buttons and lights to the face:


Proteus WIP-106 by Steve J, on Flickr

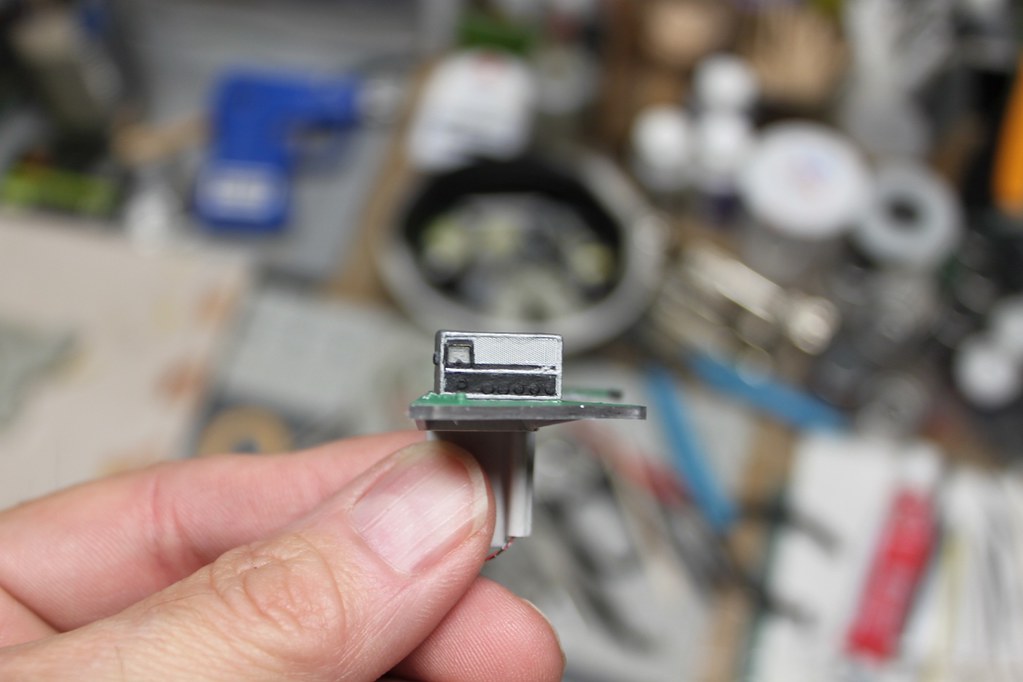

The set prop had a narrow frame around the face so I made one out of plastic:


Proteus WIP-107 by Steve J, on Flickr

The rear wall control panel edges got masked and light blocked. Then I painted medium gray over black paint:


Proteus WIP-108 by Steve J, on Flickr

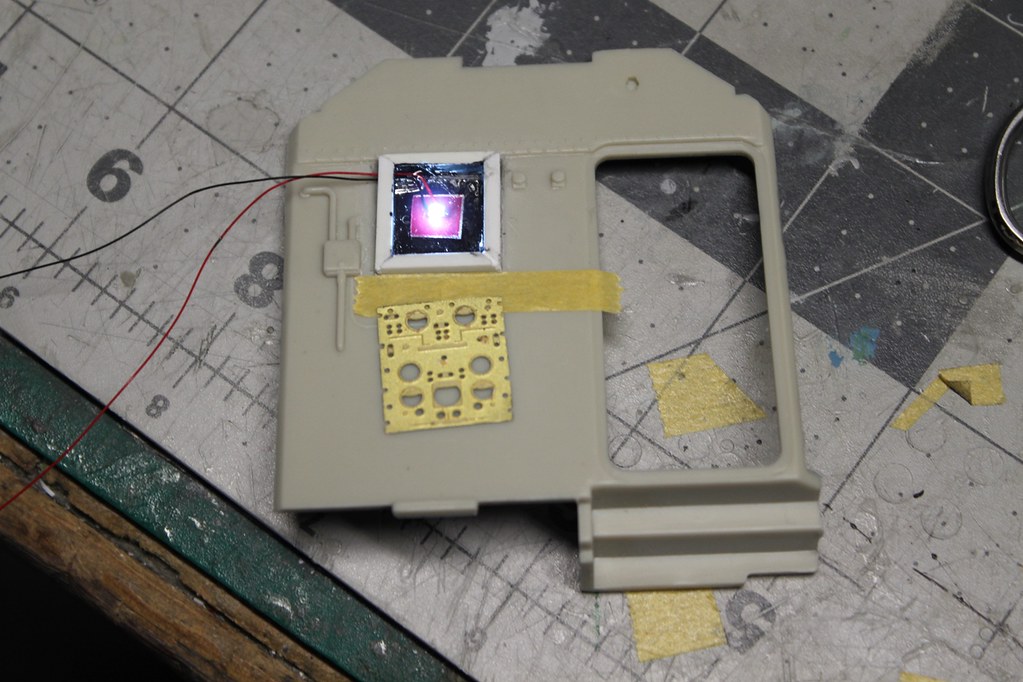

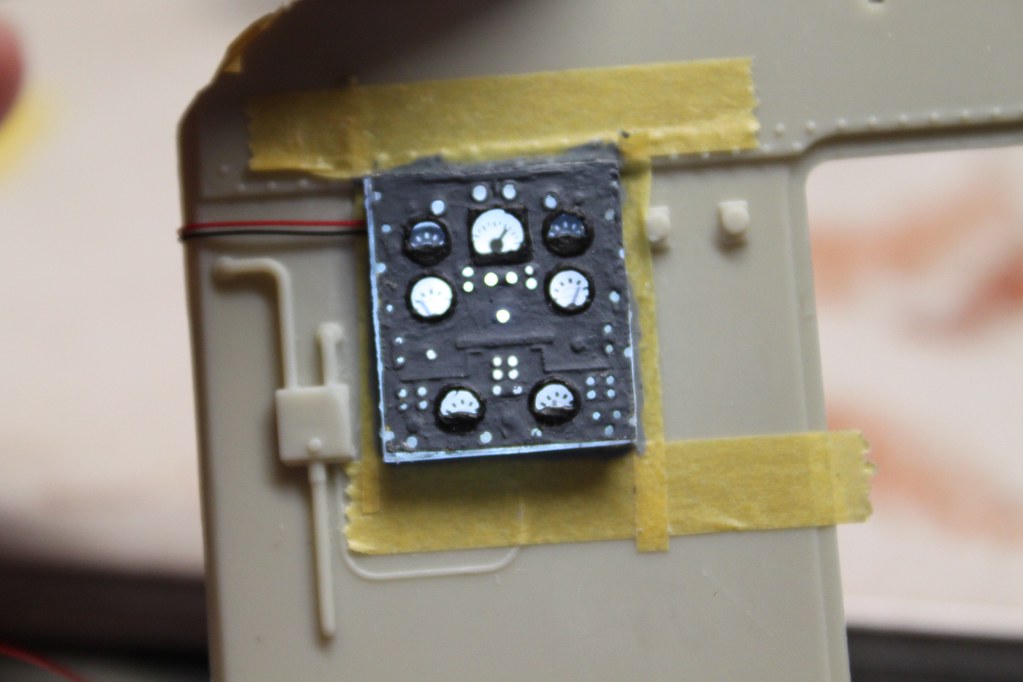

Control panel lit up. This is one tiny SMD LED:


Proteus WIP-109 by Steve J, on Flickr

I filled some gaps in the sides of the control panel with AVES Apoxy Sculpt putty.
Then I will apply another coat of black to block the light leaks for sure:


Proteus WIP-110 by Steve J, on Flickr

Light test of the unmasked chart table rear lit screen for reading the scrolls. Plenty of bright, even light. My diffusion method worked great!


Proteus WIP-111 by Steve J, on Flickr

Light test of chart cabinet starboard control panel:


Proteus WIP-112 by Steve J, on Flickr

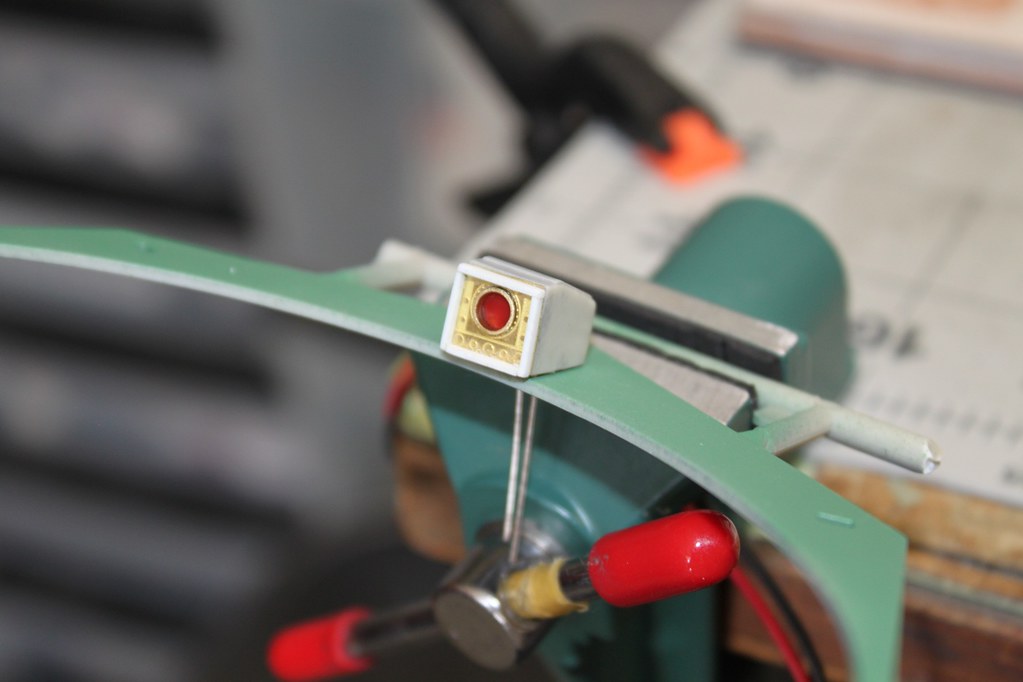

Inserted a round piece of thin transparent red styrene sheet inside the brass tube I'd made for the scope. Test fitting with LED inside:


Proteus WIP-113 by Steve J, on Flickr

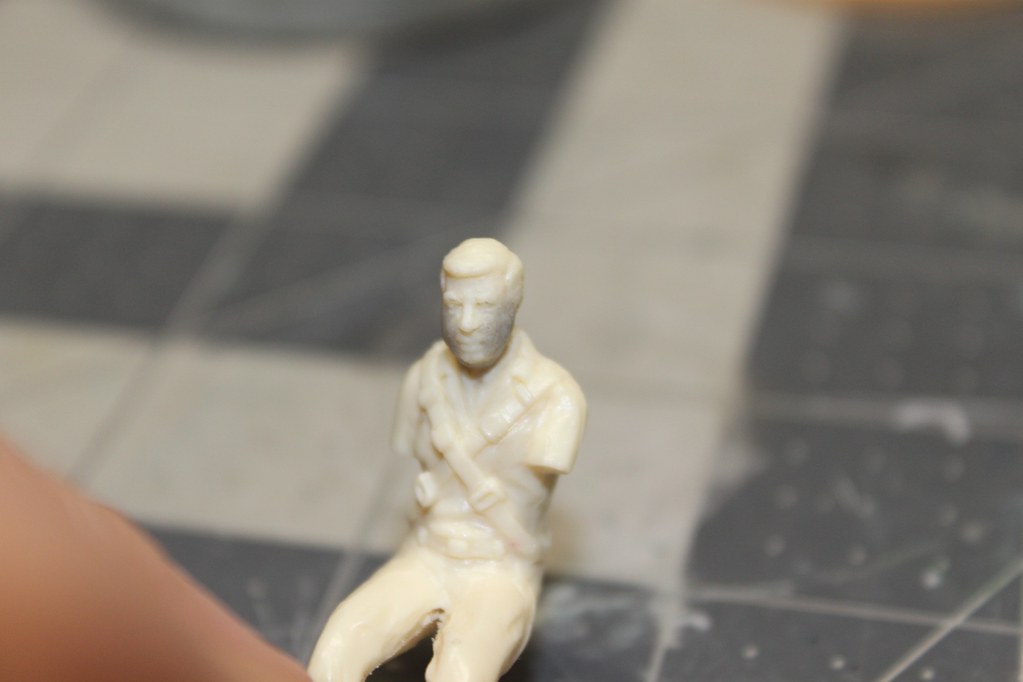

Taking a sharp turn I started work on the pilot's face which basically involved giving him a rounder face with correct profile and less pronounced eyebrow ridge. Pilot after makeover with AVES:


Proteus WIP-115 by Steve J, on Flickr

I replaced the kit headset tube from the kit ith a piece of bent brass tubing.
I then fashioned my own headset from scratch to match the images I have from the movie.
Still have to add the tiny black earphones and wiring:


Proteus WIP-118 by Steve J, on Flickr

Lots more in the pipe, or should I say... in VEIN?



[BarleyBop]

pilot's face

Impressive you can sculpt that small!
Love all the LED work.



[tron1988]

Amazing work and attention to detail. Btw I found these to be very useful for LED lighting to replicate small screens and can be powered by just one light and cut to small sizes.
I just found this on AliExpress: $8.40 | 27.5X69.5(76.5)mm Flexible Bendable DIY LED Light Eyes Kits For Halloween Helmet Mask Eye Light Cosplay Accessories CR2032 Input
https://a.aliexpress.com/_mtTRbKT
