Revell PT boat

Pantherman

Pantherman

Well-Known Member
Joined
Feb 10, 2022
Messages
3,319

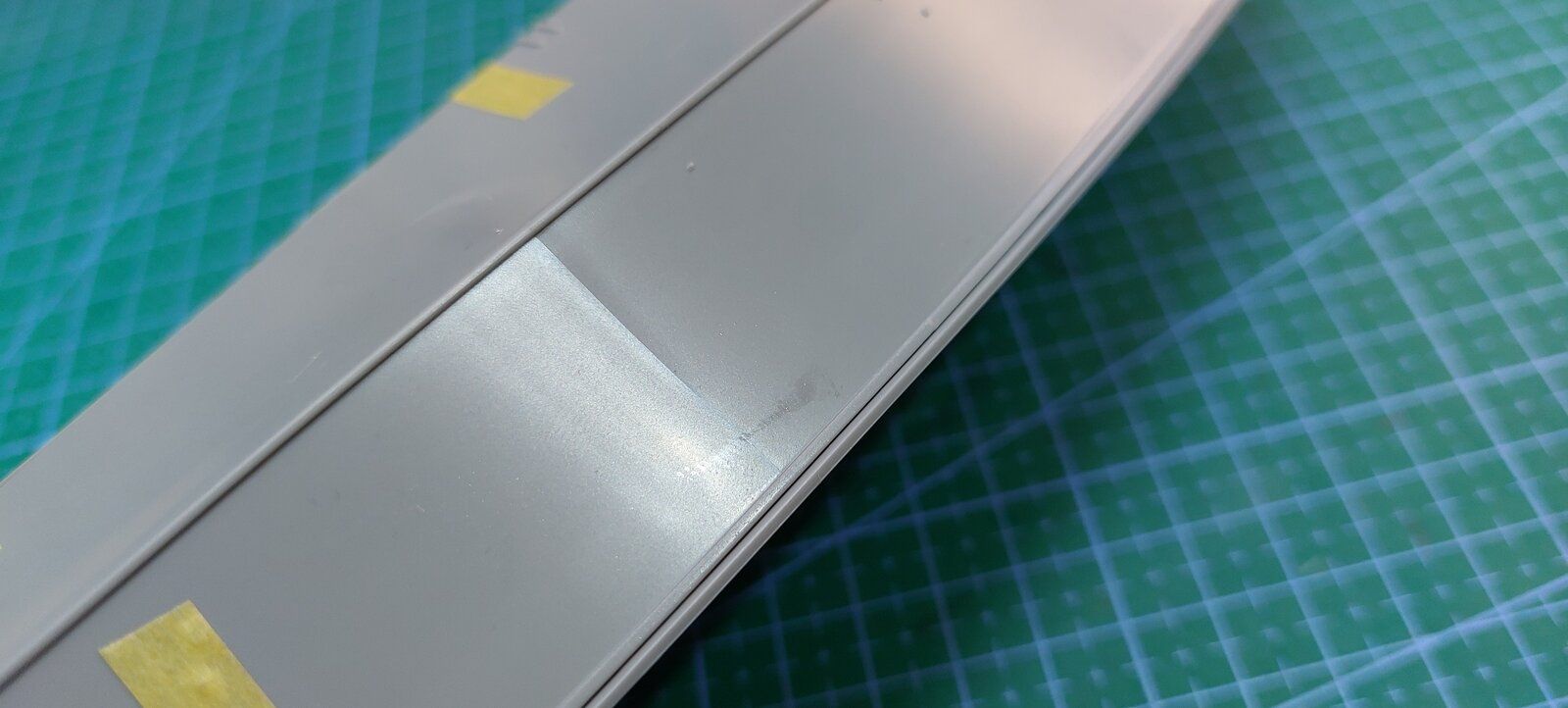

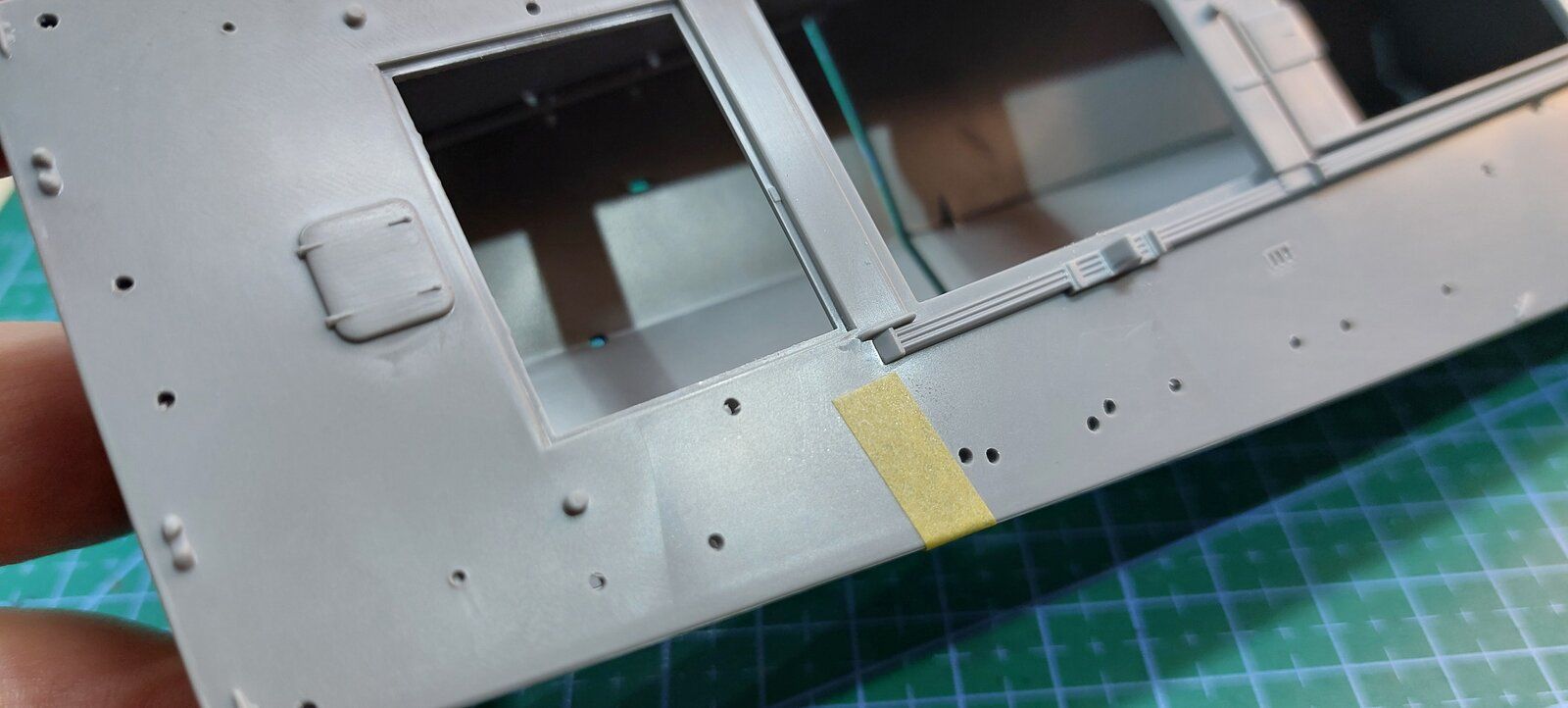

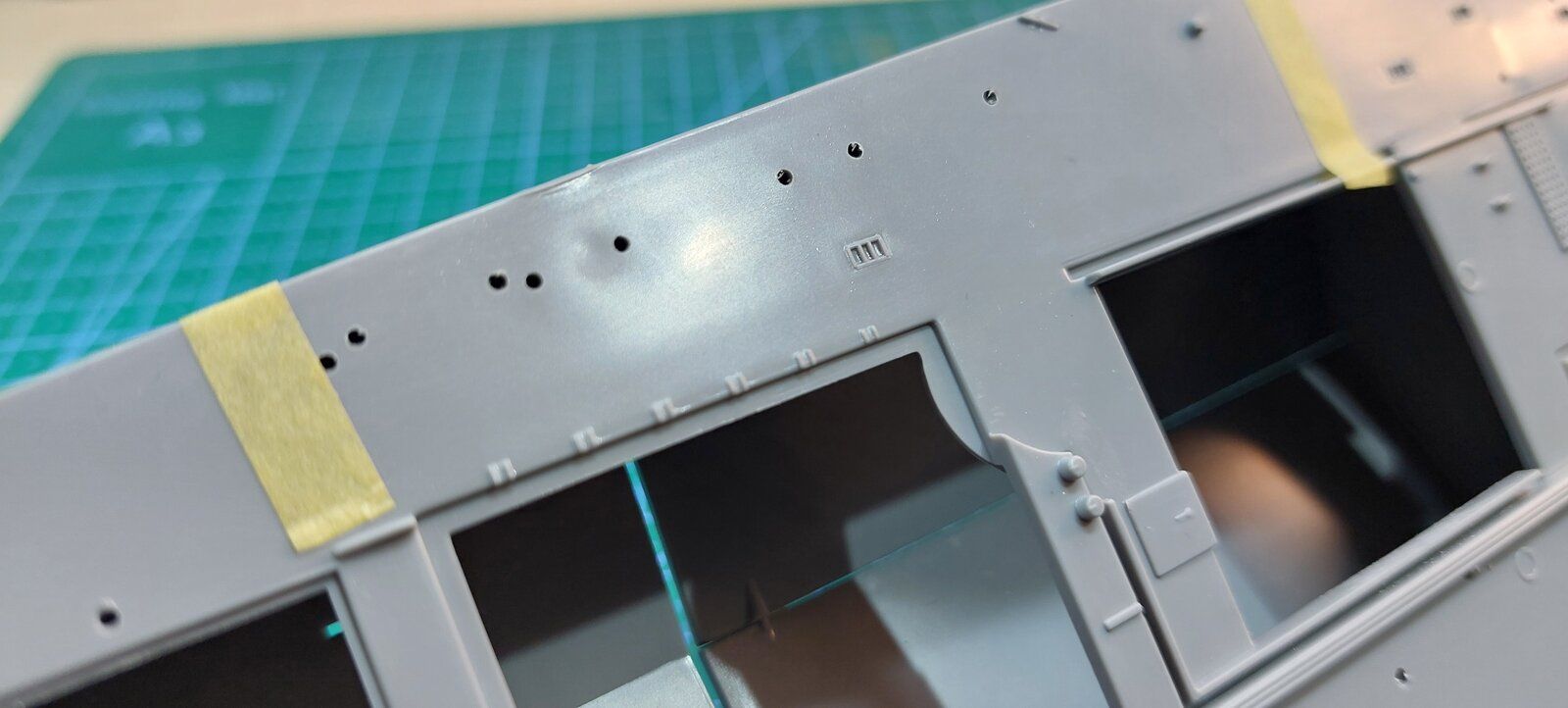

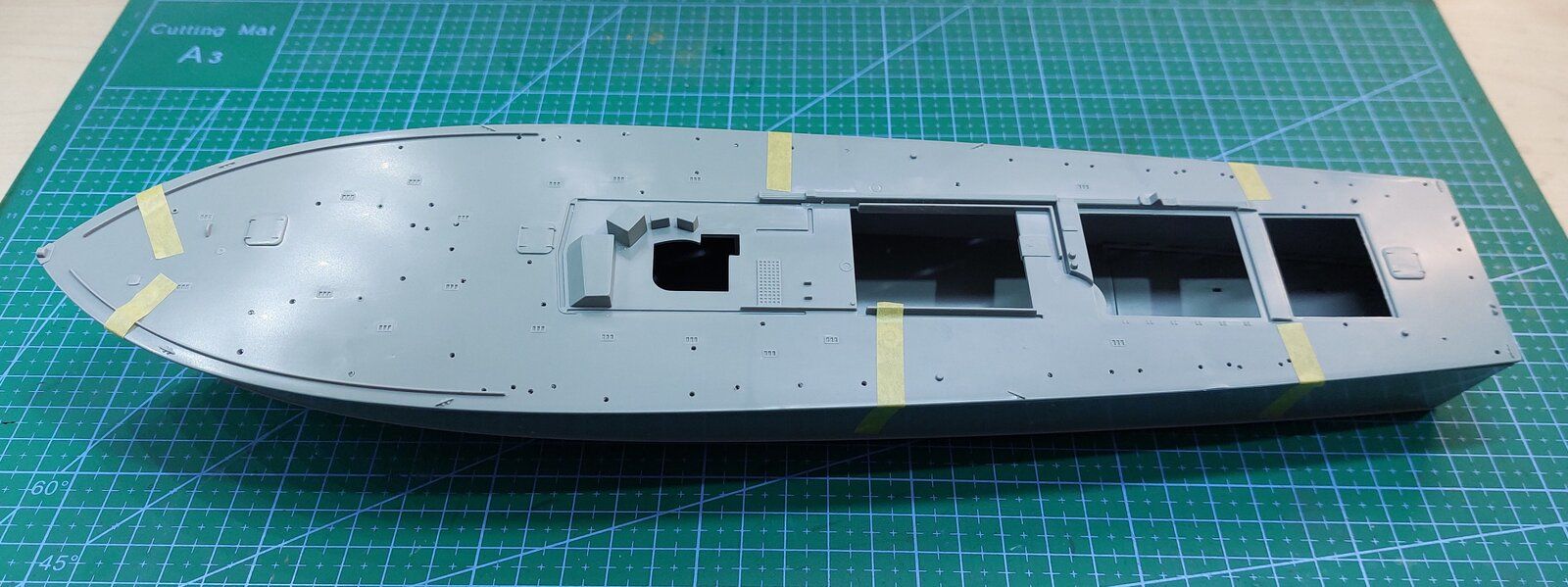

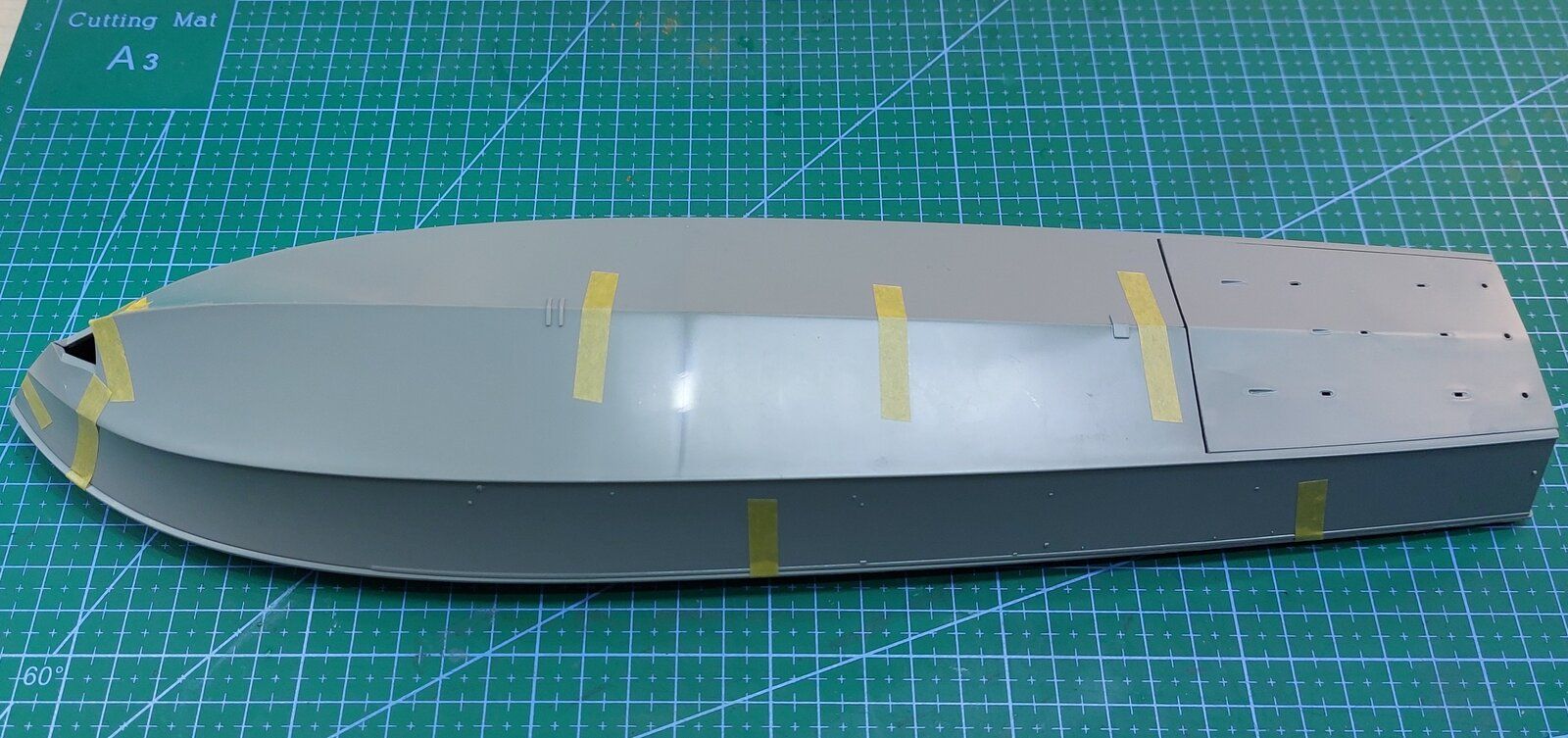

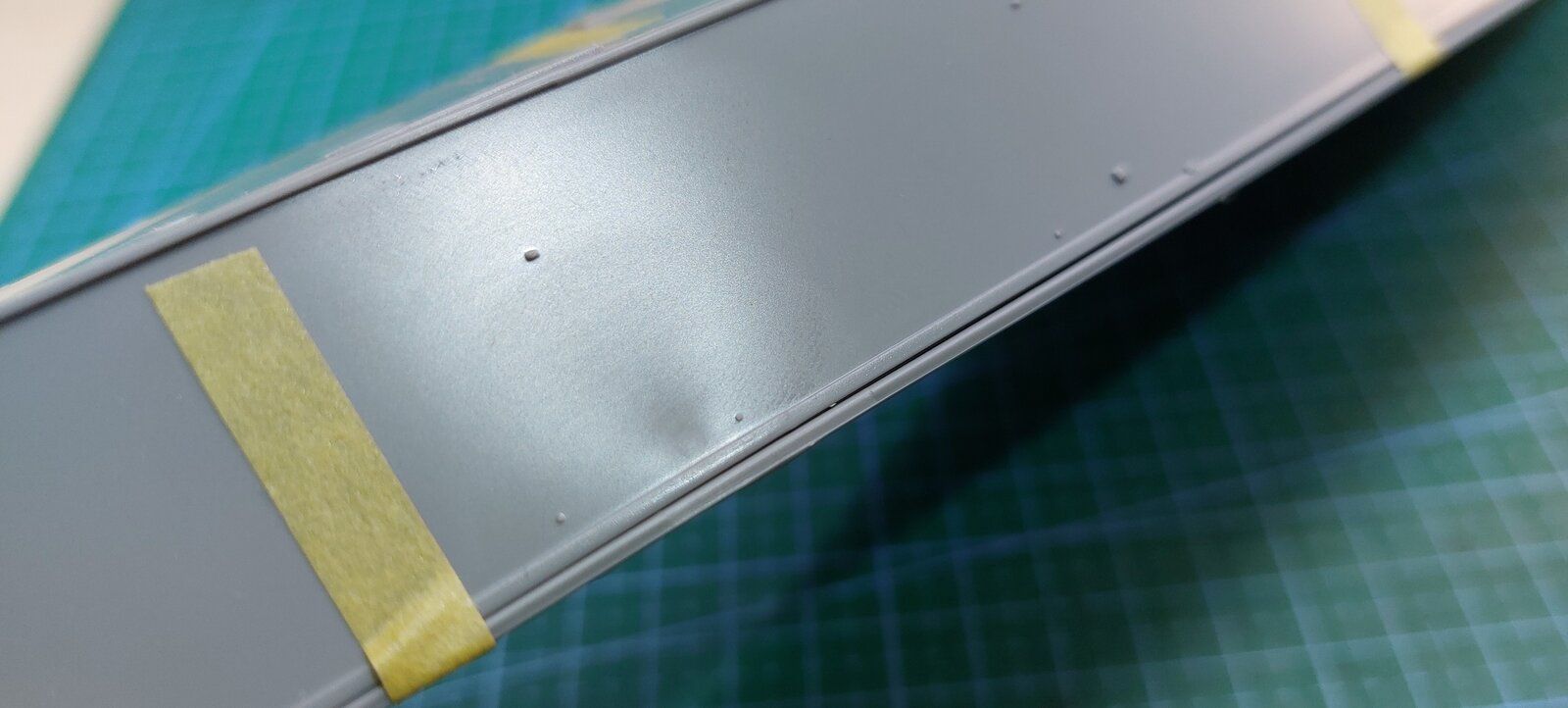

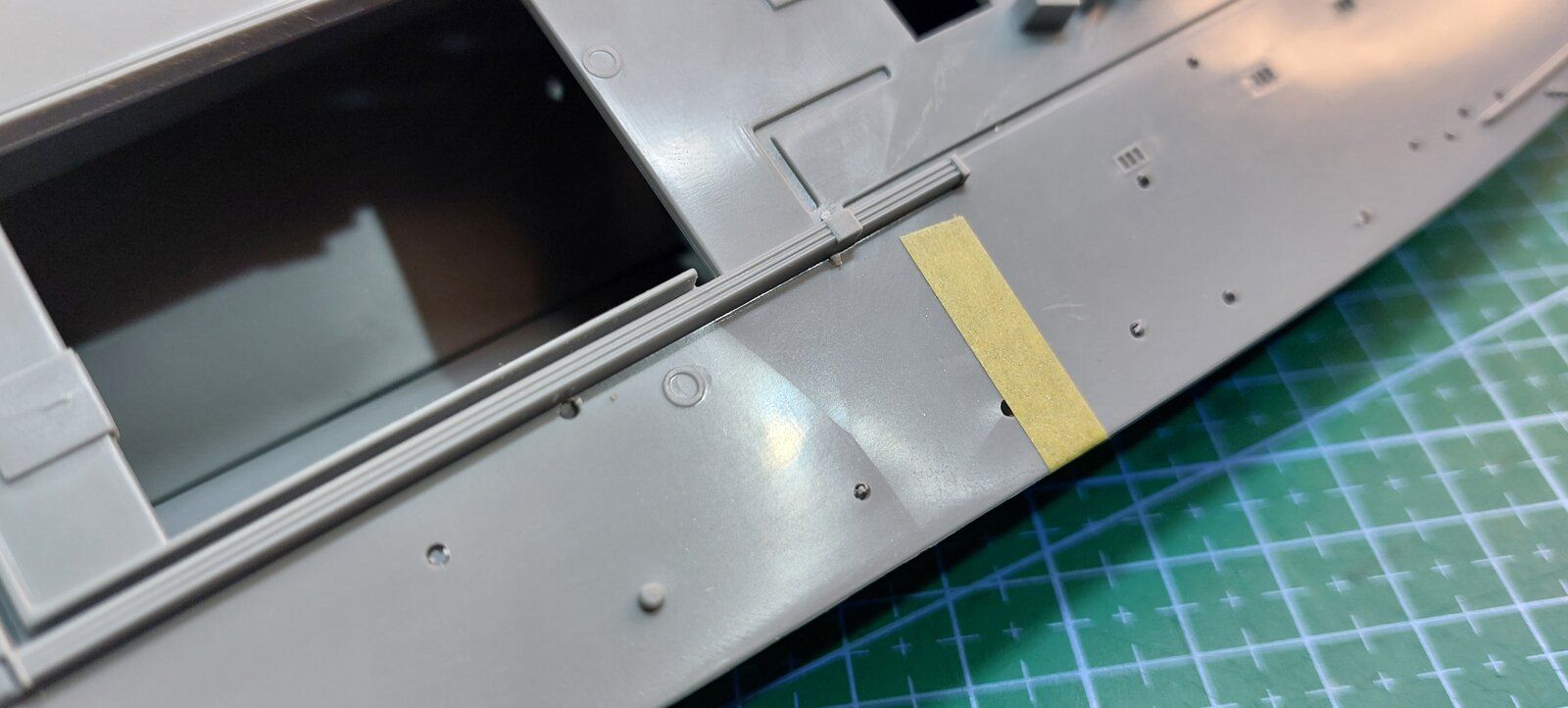

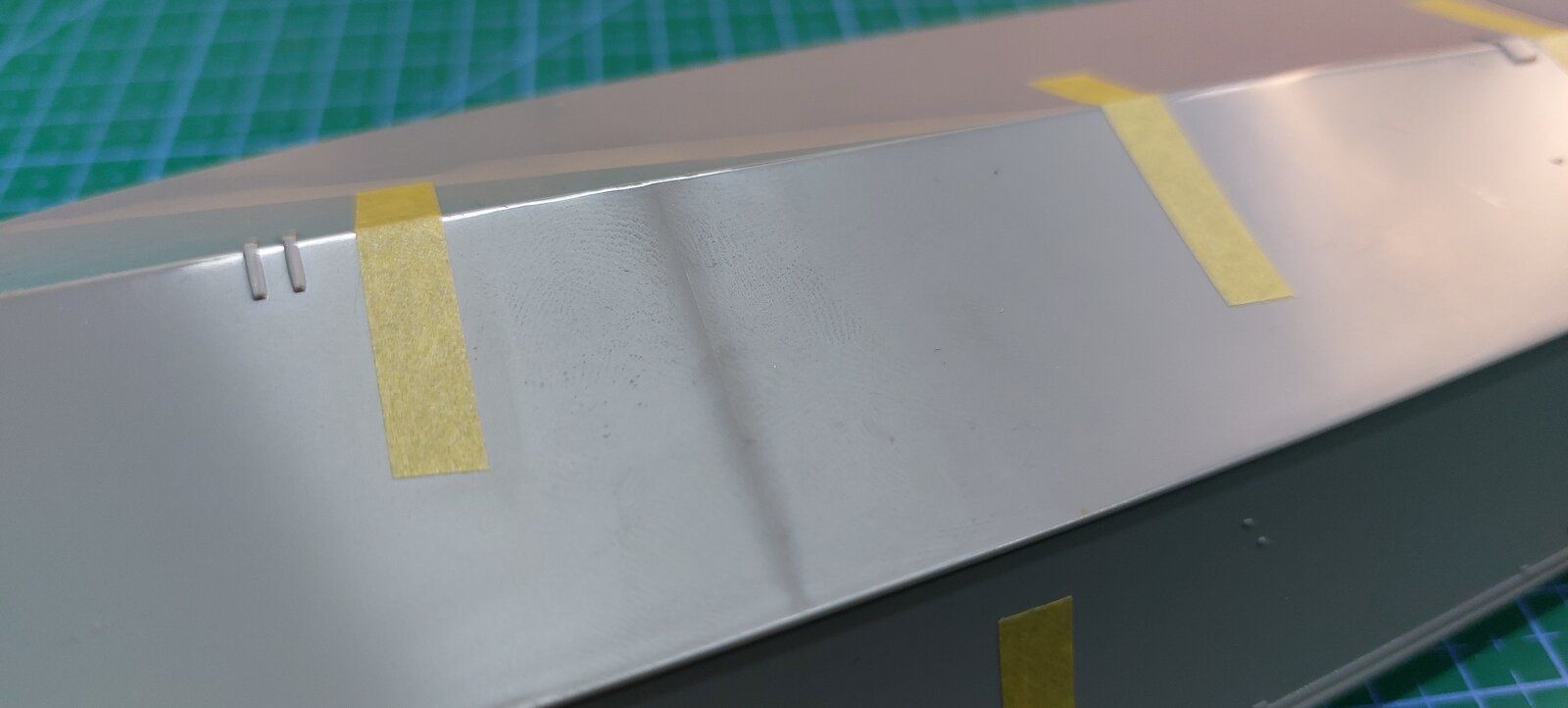

I decided to have a go at one of these just for a change. It's a very old kit and it shows, mould marks, creases in the deck and hull. Got the feeling that this is going to be the same for every part.

Great fun this hobby. Better order a container load of filler and sanding sticks.... Pantherman
20240502_154538.jpg20240502_154551.jpg20240502_154601.jpg20240502_154737.jpg20240502_154820.jpg20240502_154727.jpg20240502_154815.jpg20240502_154712.jpg

Pantherman said:
I decided to have a go at one of these just for a change. It's a very old kit and it shows, mould marks, creases in the deck and hull. Got the feeling that this is going to be the same for every part.

Great fun this hobby. Better order a container load of filler and sanding sticks.... Pantherman
View attachment 116762View attachment 116763View attachment 116764View attachment 116765View attachment 116766View attachment 116767View attachment 116768View attachment 116769
Click to expand...

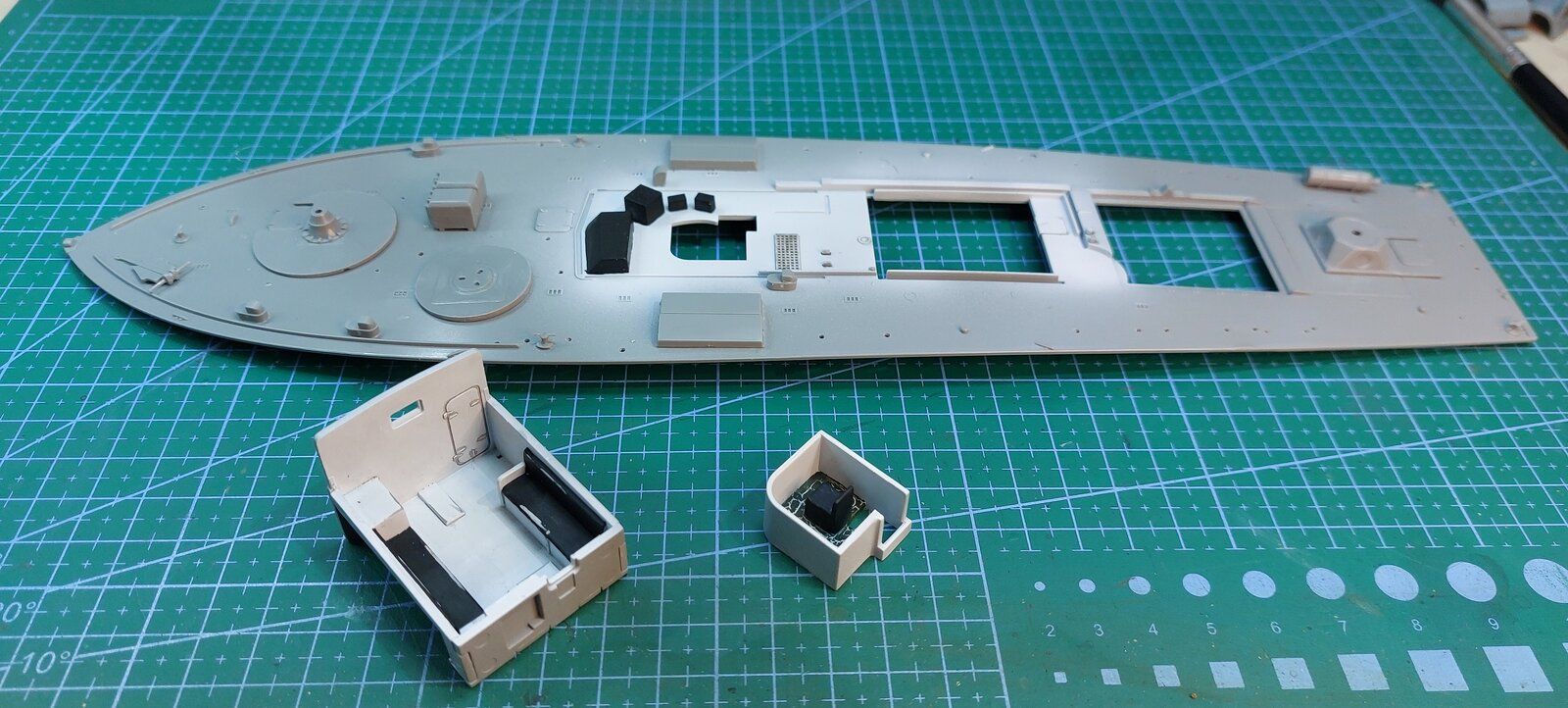

Have managed to get some of the seams filled and sanded but still a way to go yet.

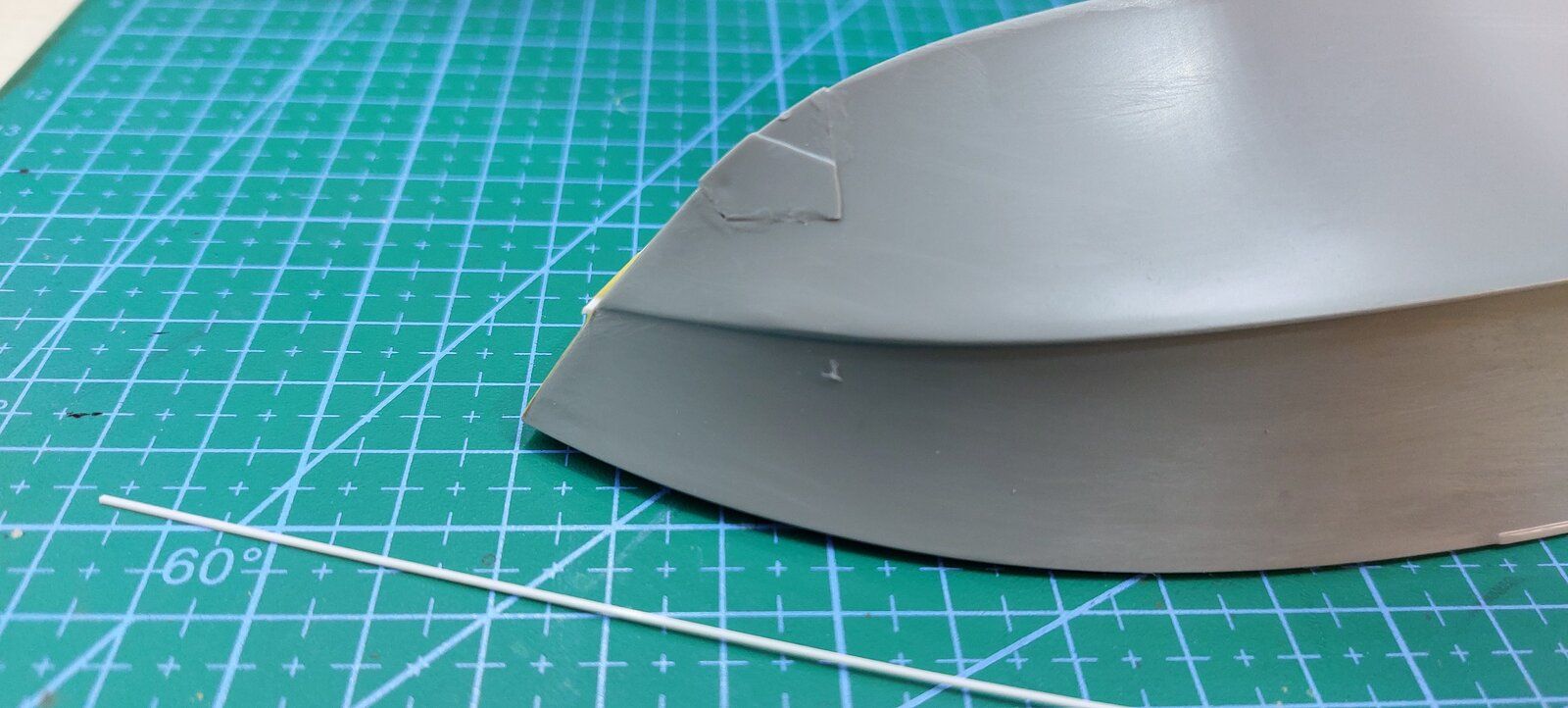

I decided to add a thin trim to the side as some photos I was looking at showed this to be fairly prominent and the revell detail is a bit thin and sort of fades away at the bow.

Also done a bit more of the deck.20240504_112733.jpg20240504_112753.jpg20240504_112839(0).jpg
Pantherman

Pantherman said:
Have managed to get some of the seams filled and sanded but still a way to go yet.

I decided to add a thin trim to the side as some photos I was looking at showed this to be fairly prominent and the revell detail is a bit thin and sort of fades away at the bow.

Also done a bit more of the deck.View attachment 116823View attachment 116824View attachment 116825
Pantherman
Click to expand...

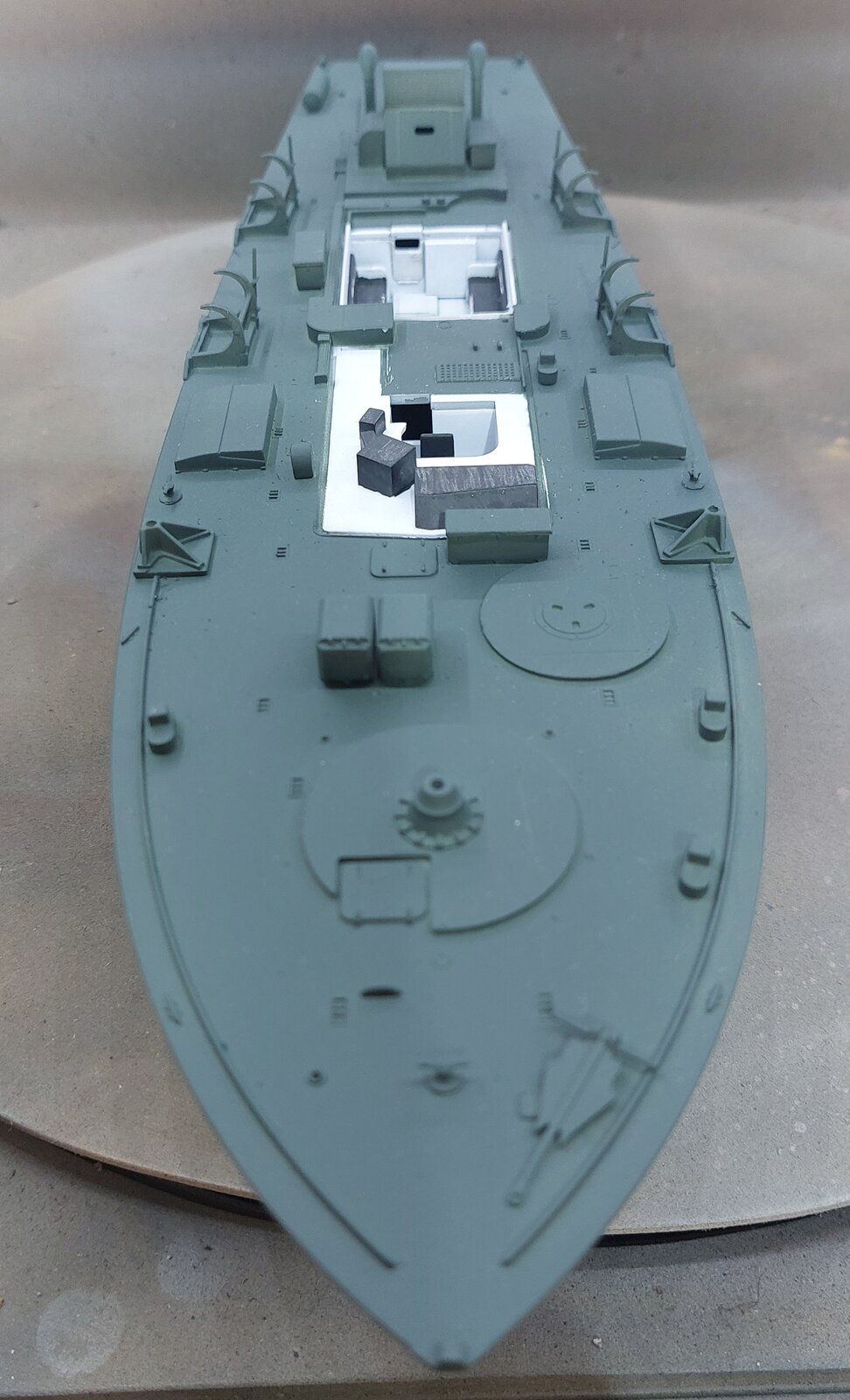

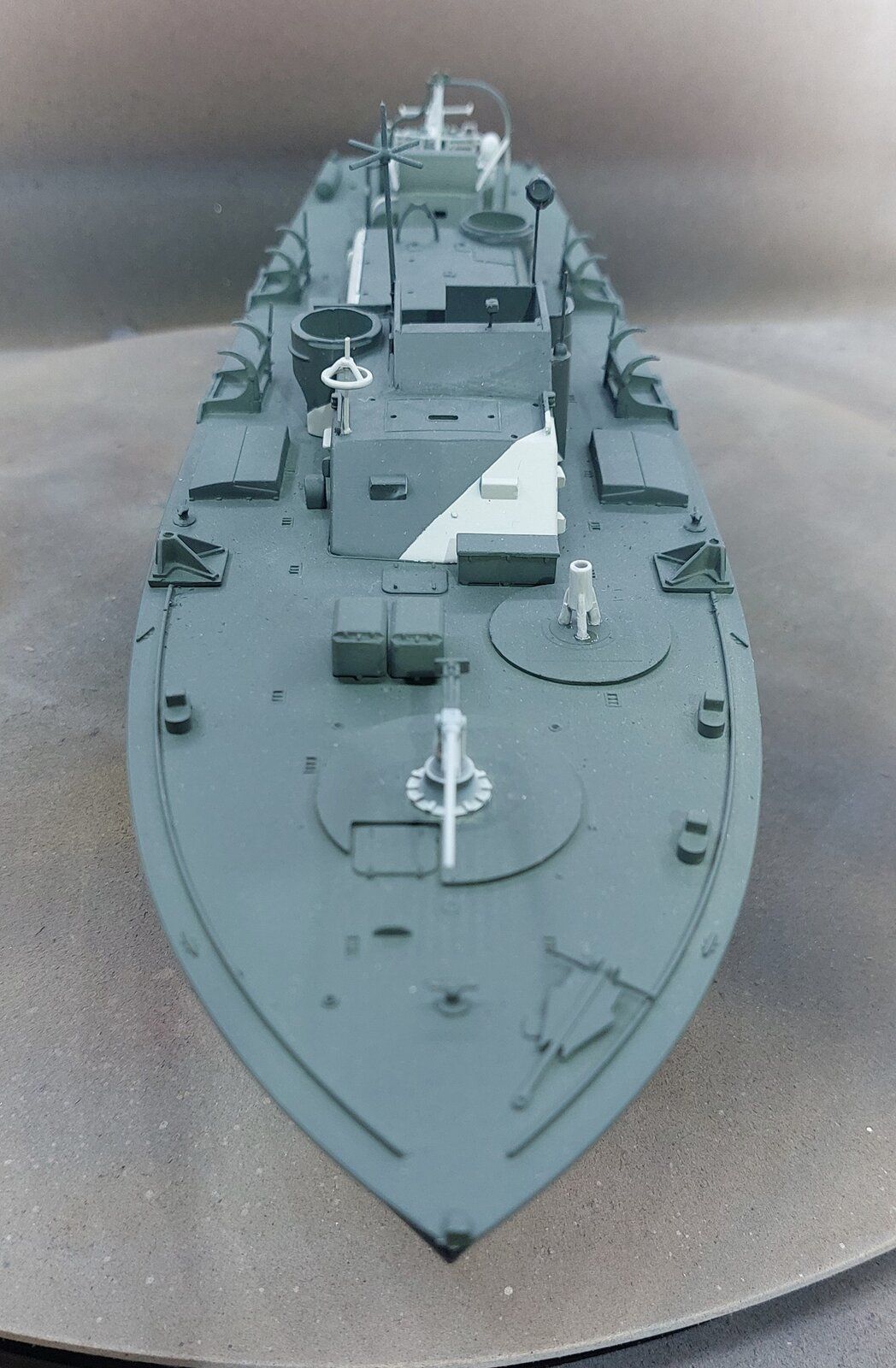

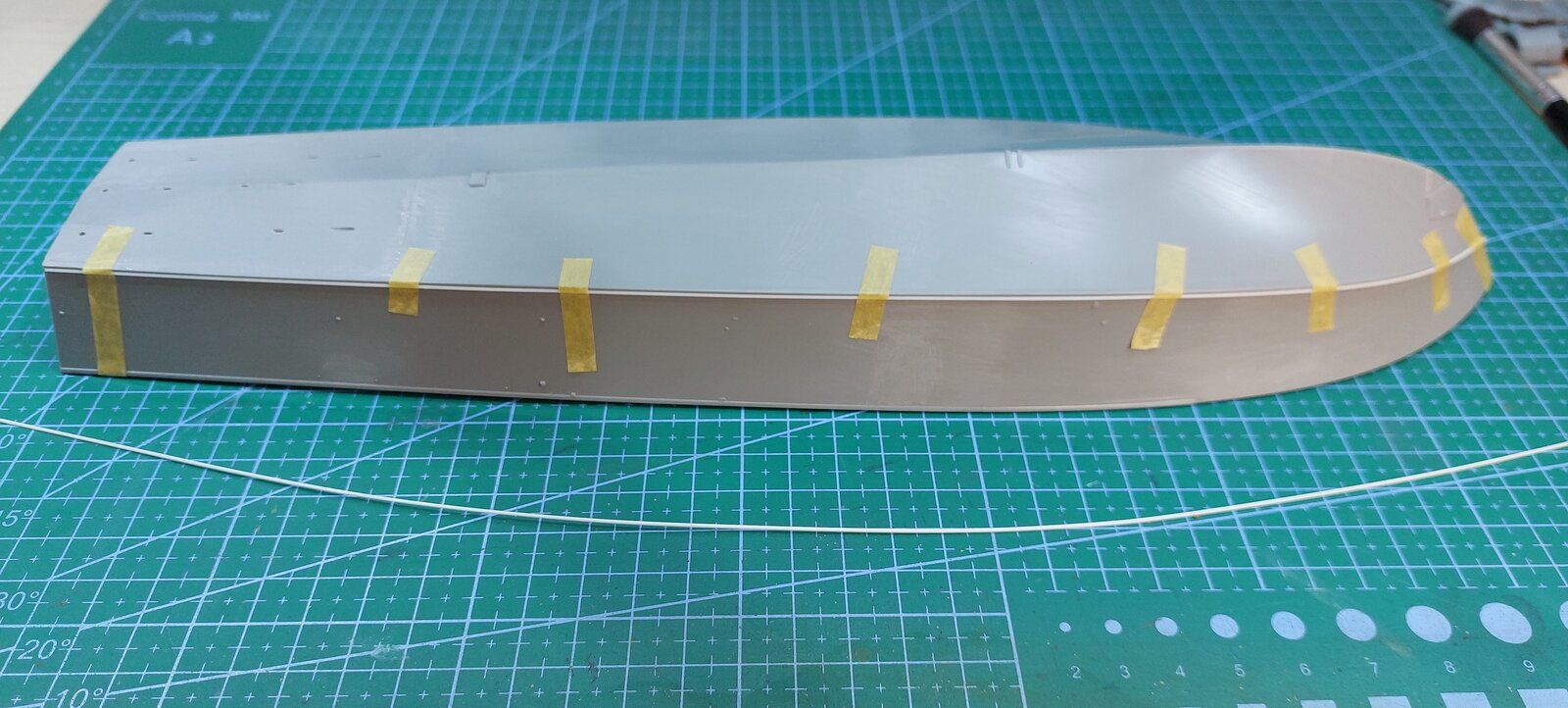

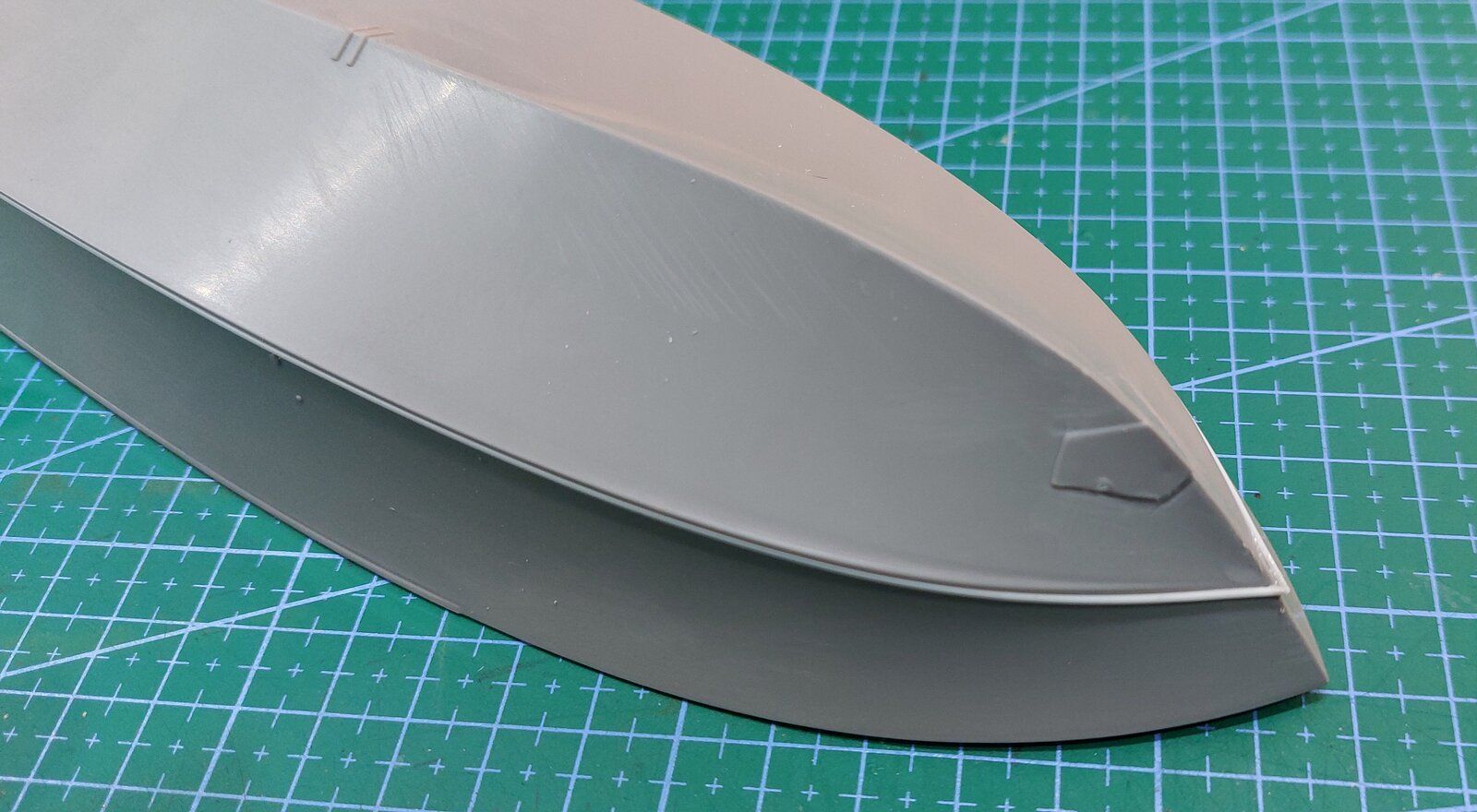

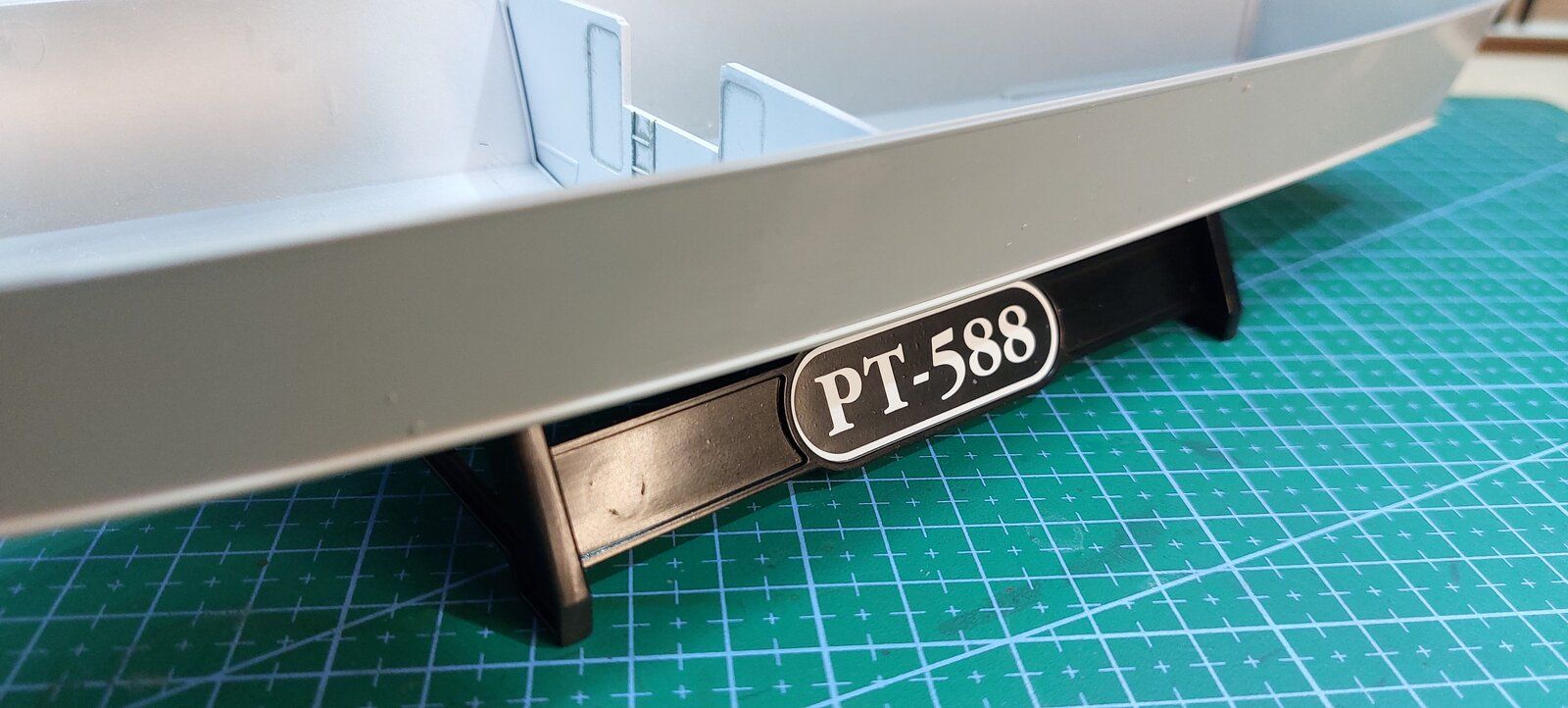

Got the new trim fitted and have started cleaning up the hull defects. Starting to look a little bit better now. Pantherman

Pantherman said:

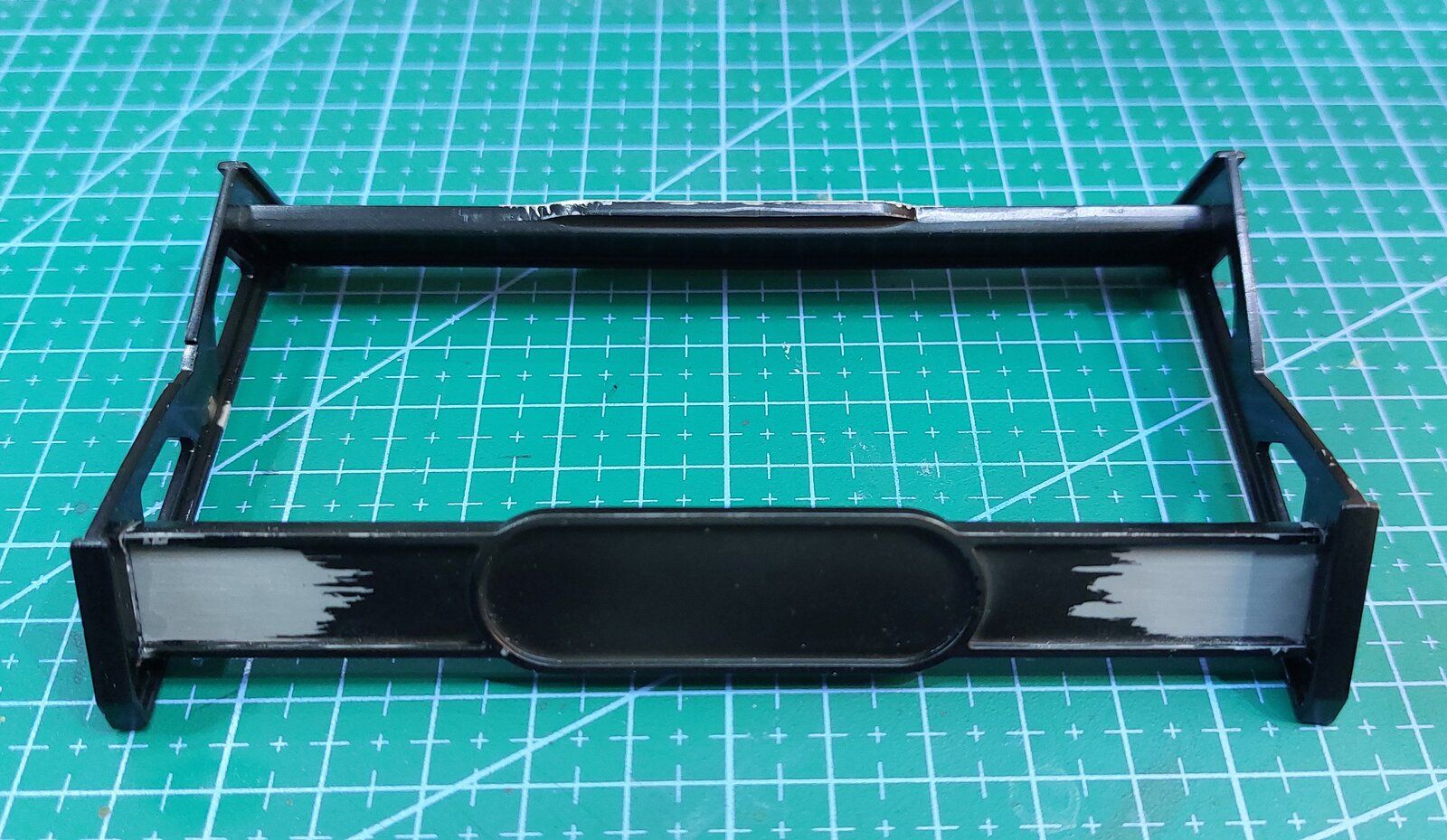

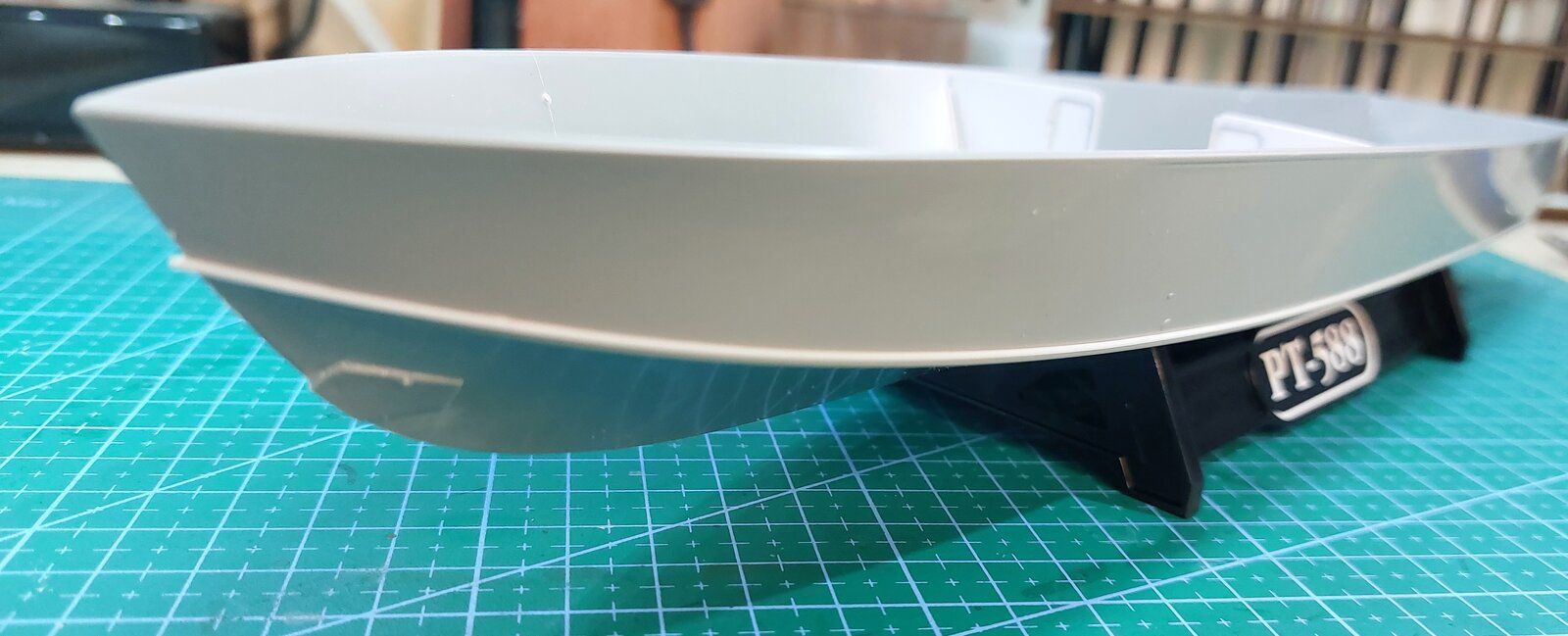

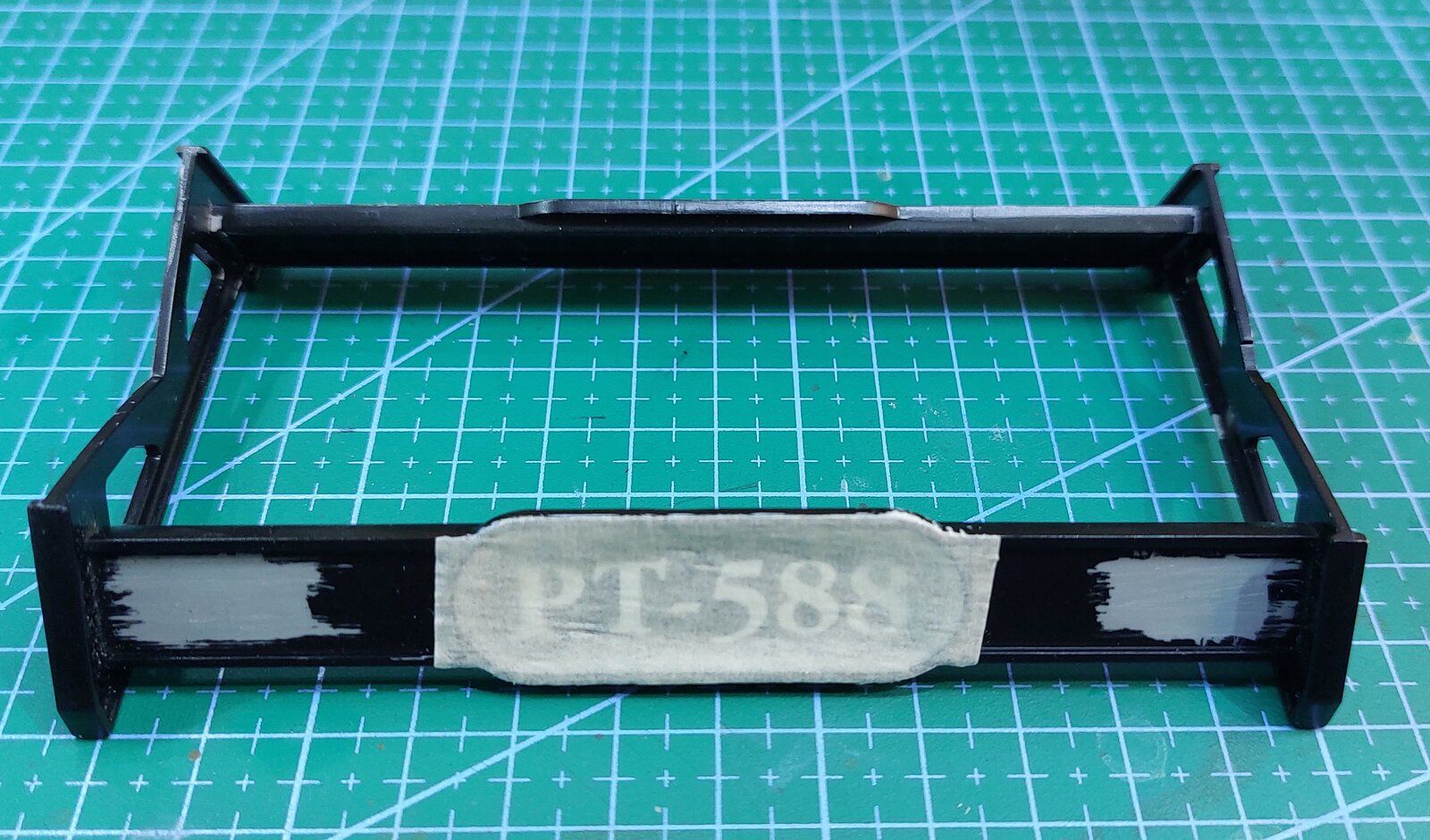

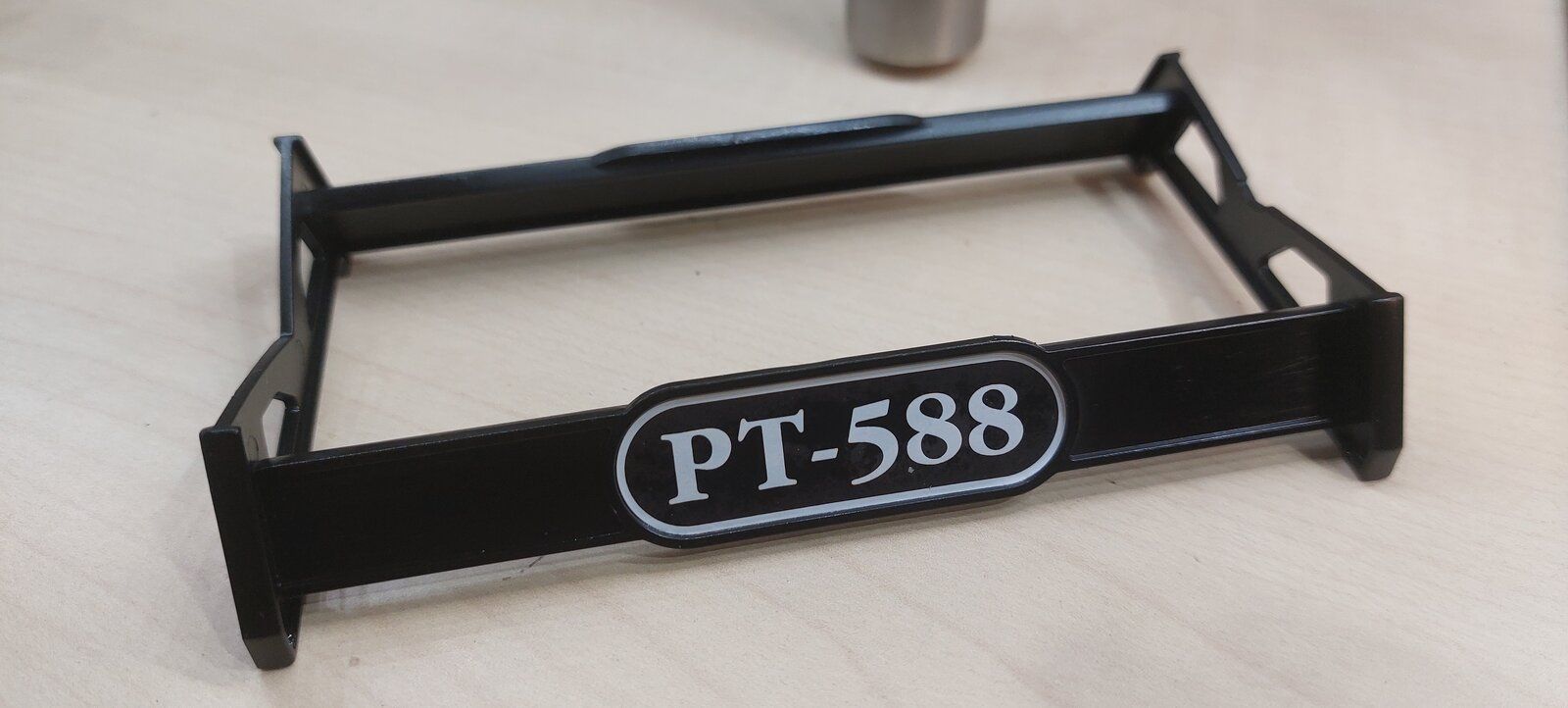

And just noticed the mould marks on the stand...... this kit has them everywhere. Going to have to redo the stand as it will drive me nuts knowing it's there. Pantherman
Click to expand...
Going Crazy GIF

Pantherman said:
I decided to have a go at one of these just for a change. It's a very old kit and it shows, mould marks, creases in the deck and hull. Got the feeling that this is going to be the same for every part.

Great fun this hobby. Better order a container load of filler and sanding sticks.... Pantherman
View attachment 116762View attachment 116763View attachment 116764View attachment 116765View attachment 116766View attachment 116767View attachment 116768View attachment 116769
Click to expand...

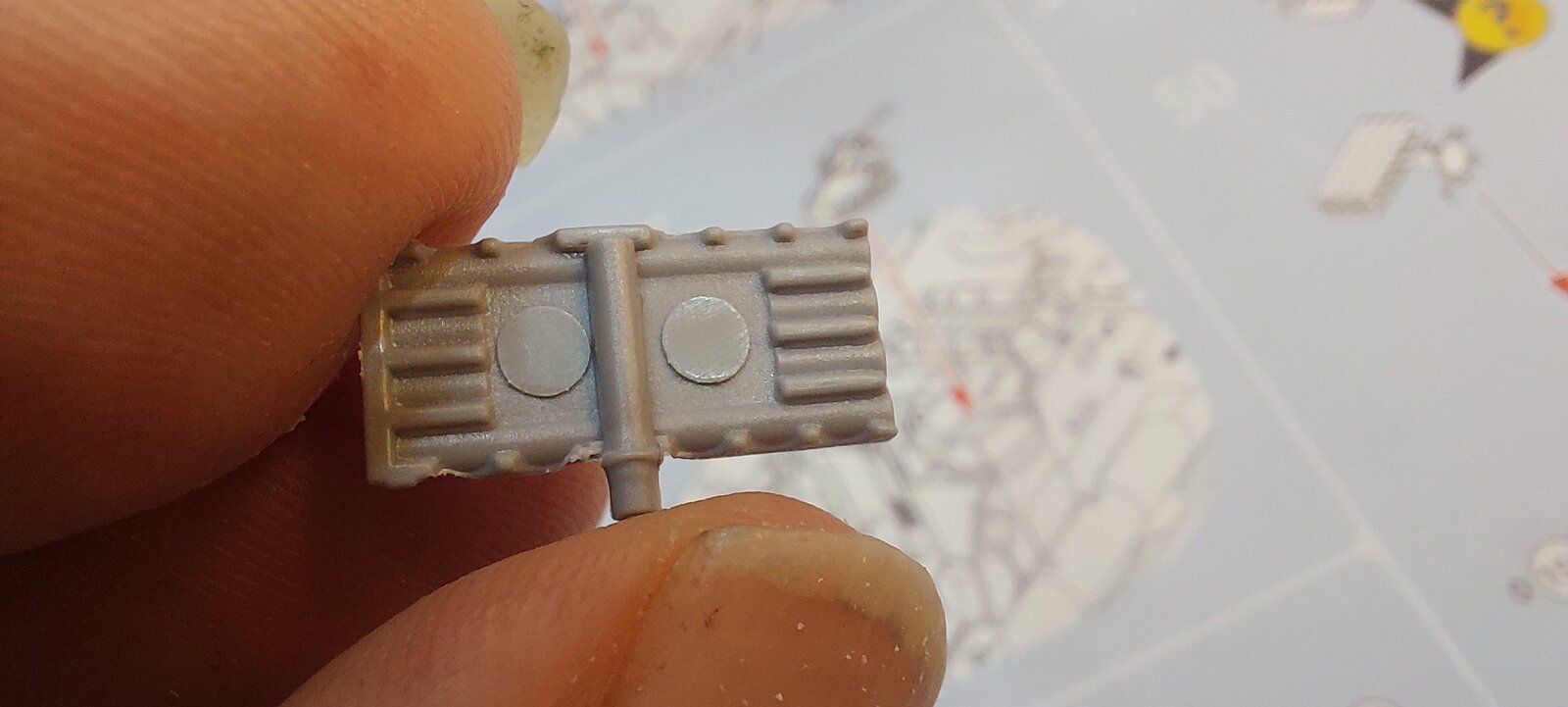

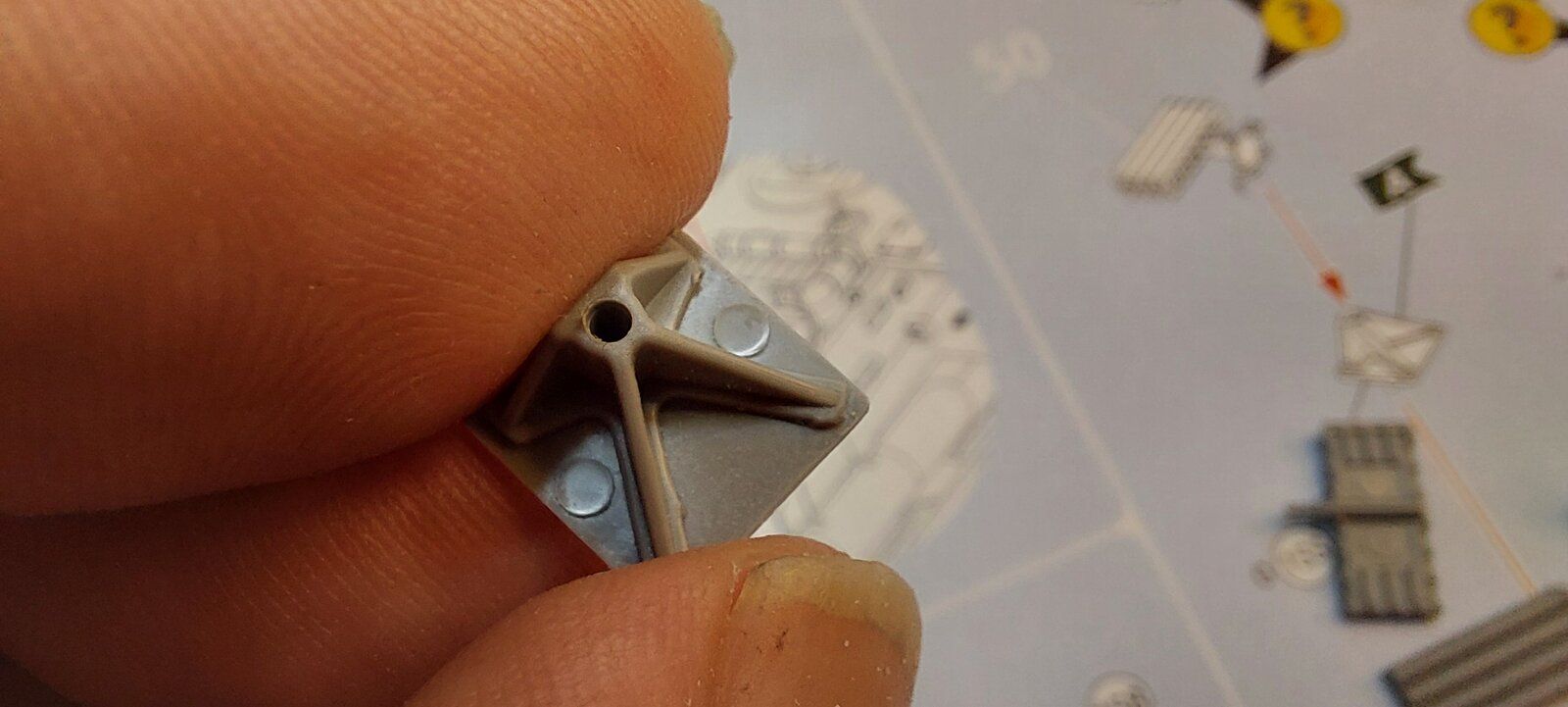

Almost every single part has horrendous mould ejection marks on it. It seems the smaller the part, the bigger the mark.

Would love to hear what revell quality control has to say about this. Pantherman 20240505_181351.jpg20240505_181403.jpg

I feel your pain P.M., Lindberg's Jolly Roger was like that, not a part went without having to even it out. Even the hull halves were off in length by 2mm or 1/16"(in the U.S.) from one another.

Pantherman said:
And just noticed the mould marks on the stand...... this kit has them everywhere. Going to have to redo the stand as it will drive me nuts knowing it's there. Pantherman
Click to expand...
I do that all the time. Look at a picture of my work and see something I missed. :confused:o_O
BTW I really like the trim pieces. Really makes the edge stand out. Nice job

Last edited:
Very nice attention to the detail! I've completed the Revell kit twice, the second being an attempt to make an RC controlled boat (fail). What a labor of love. Kudos to you. Most days I feel like the hobby should be called "sanding" rather than modeling. It's getting to the point where I almost select, or disqualify, kits based on their reported fit (is it just me?). I love to paint and weather, and used to think I needed a small paint booth for airbrushing, but a dust collection system for all the Tamiya putty sanded off my kits might be a wiser investment, lol

Watching this with much interest.

588 was a Class103 Elco 80ft, and that belt strip is a flat/wide strip of wood.
Imagine a 1"x3" the full length of the boat.
There is another just below the deck overhang.

588 was one of the last Elcos built, and had many new gadgets.
Its also one of the very few that had rocket launchers up front.

I also do a paper model of the ELCO 80ft, and offer a few conversions. But not PT588.
What scale is this?
My paper kit is 1/48 scale, about 20" long.

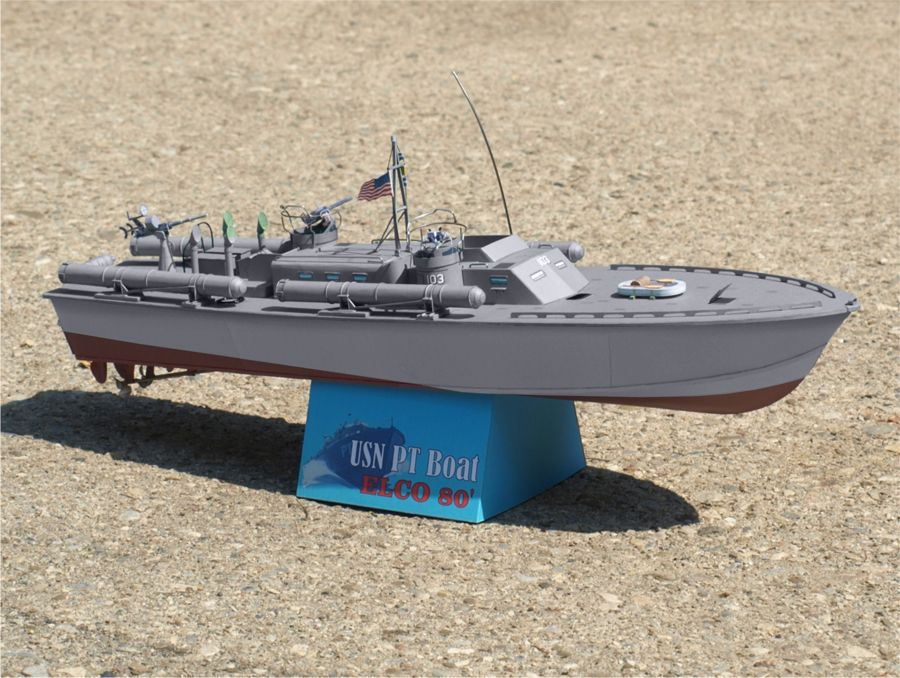

What colour will you paint? These were issued to the Navy in Gray (with red oxide lower).

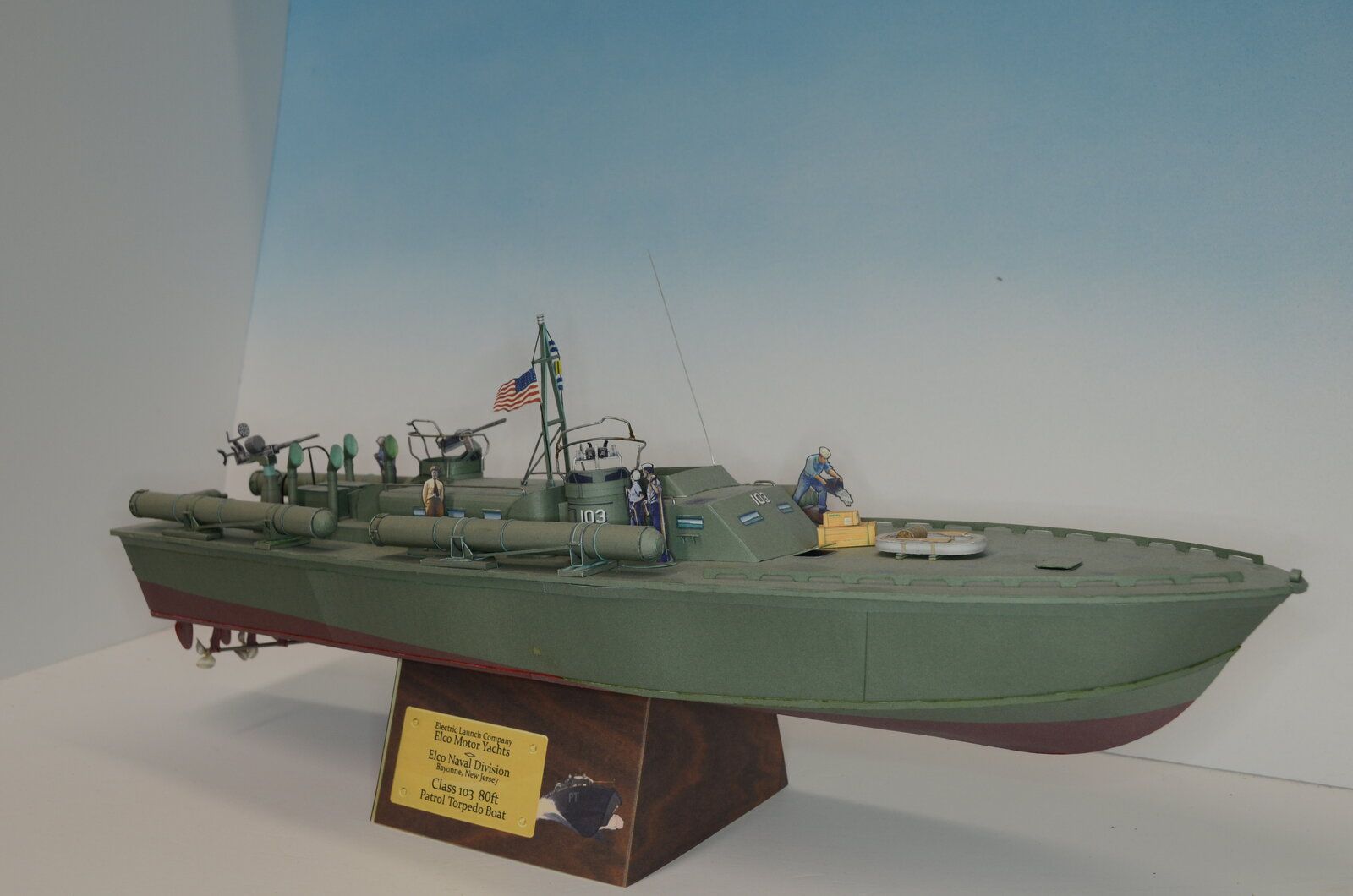

Many were painted green and some in camo by the boat crew themselves.

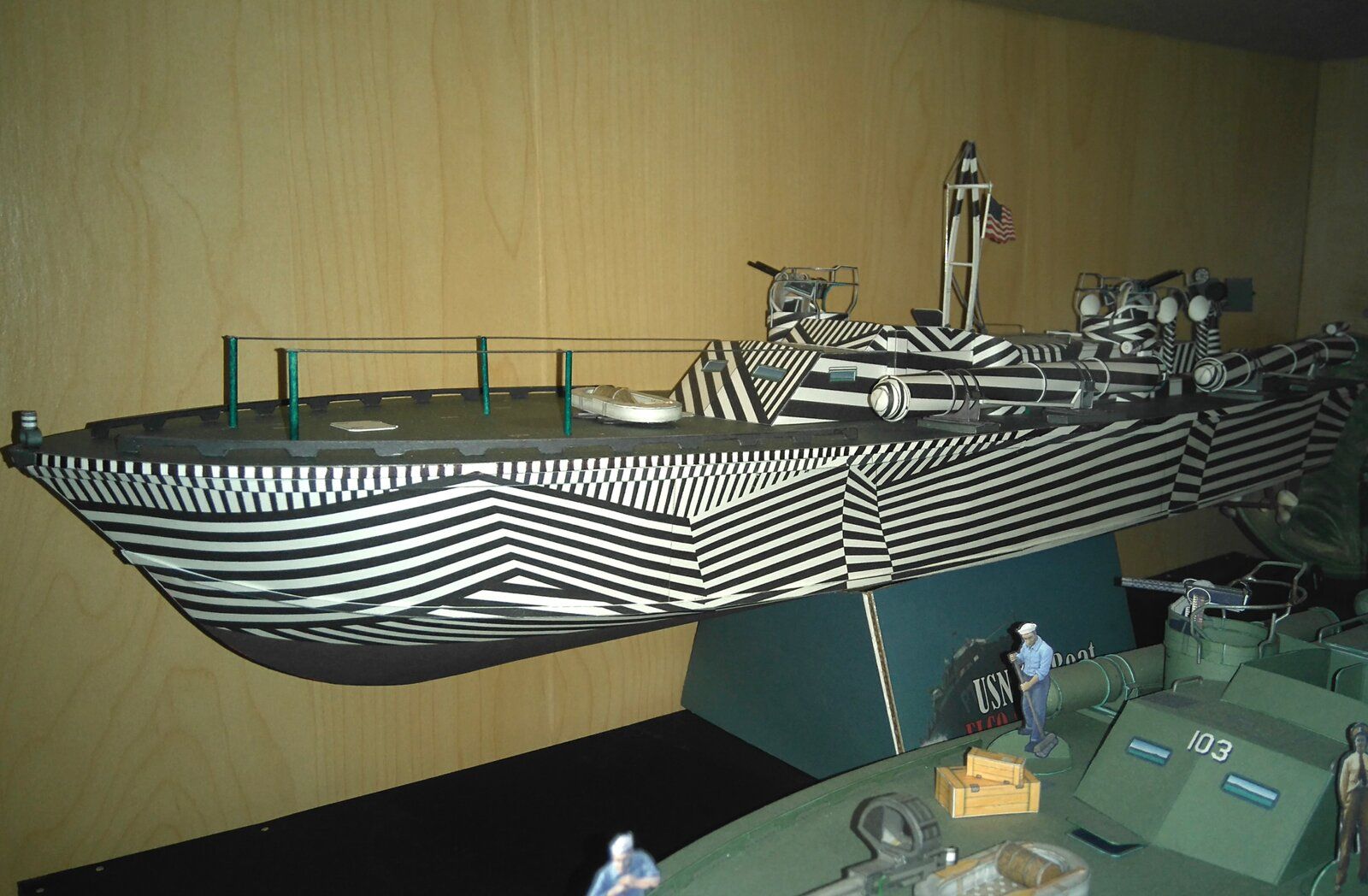

Then, there were the many disruptive camos.

adw-PT103 1-48 gray model (2).jpg DSC_1454.JPG PT103 disrupt (1).JPG

Last edited:
airdave said:
Watching this with much interest.

588 was a Class103 Elco 80ft, and that belt strip is a flat/wide strip of wood.
Imagine a 1"x3" the full length of the boat.
There is another just below the deck overhang.

588 was one of the last Elcos built, and had many new gadgets.
Its also one of the very few that had rocket launchers up front.

I also do a paper model of the ELCO 80ft, and offer a few conversions. But not PT588.
What scale is this?
My paper kit is 1/48 scale, about 20" long.

What colour will you paint? These were issued to the Navy in Gray (with red oxide lower).
Many were painted green and some in camo by the boat crew themselves.
Then, there were the many disruptive camos.

View attachment 116912 View attachment 116913
Click to expand...

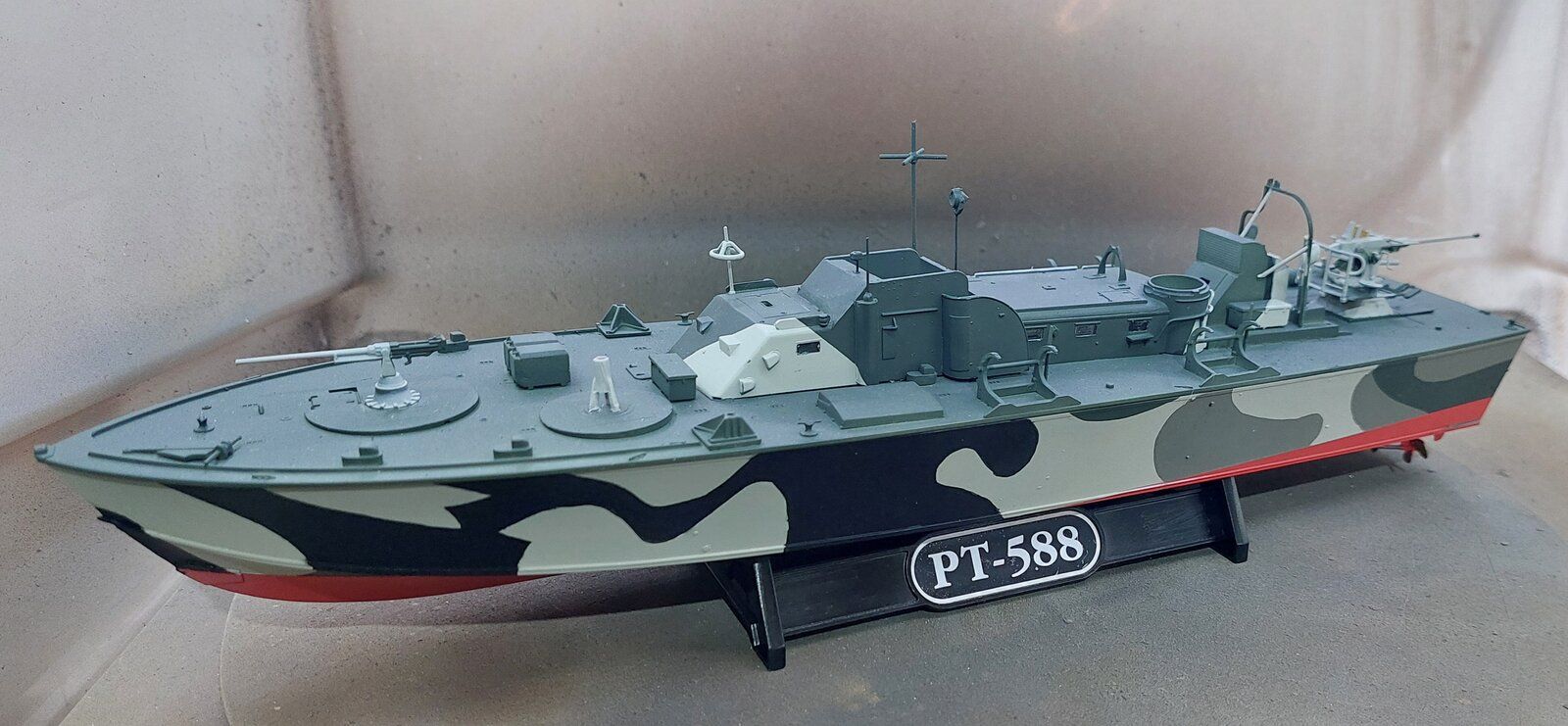

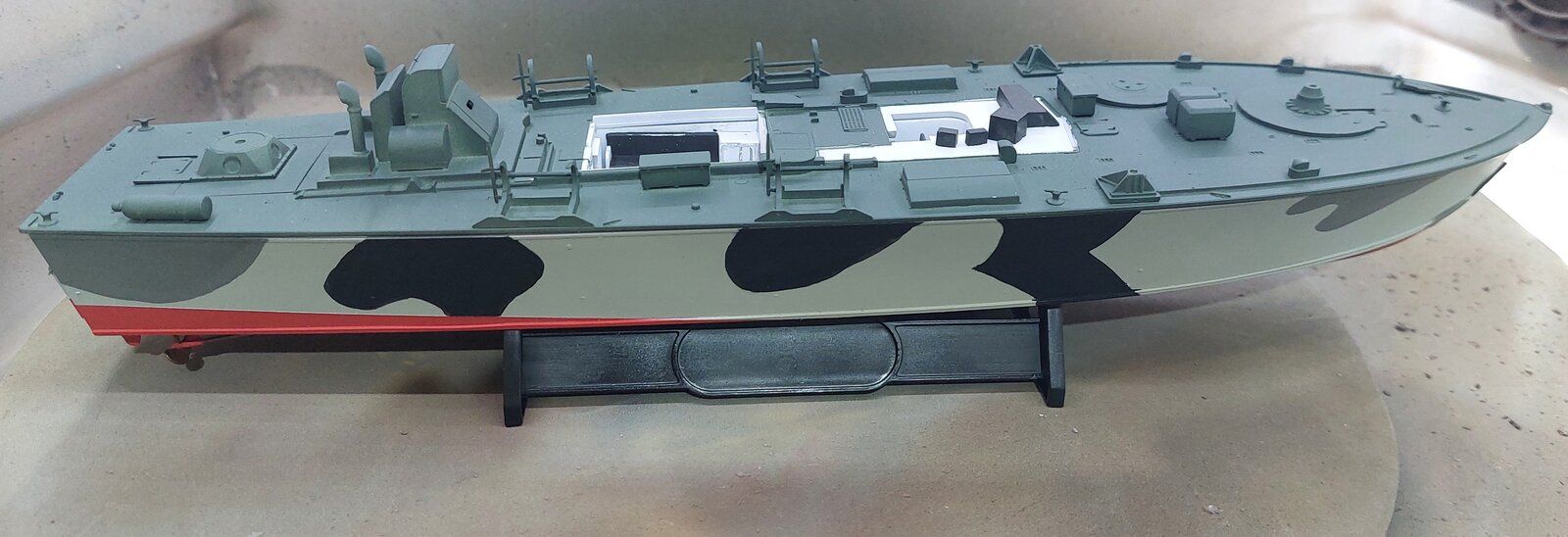

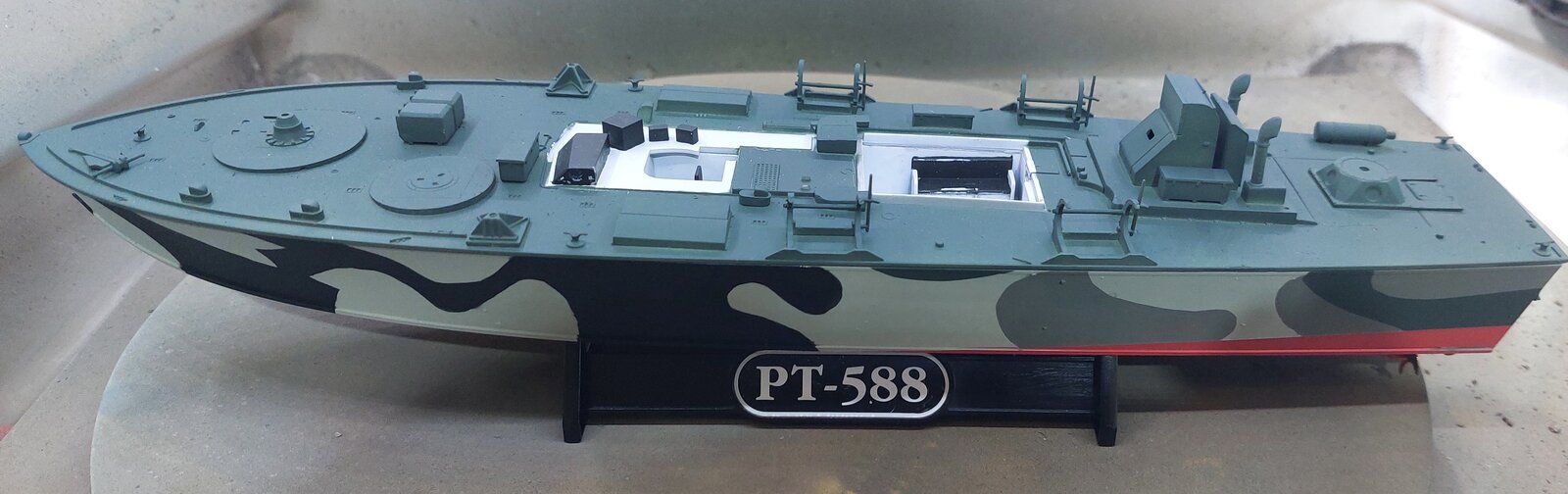

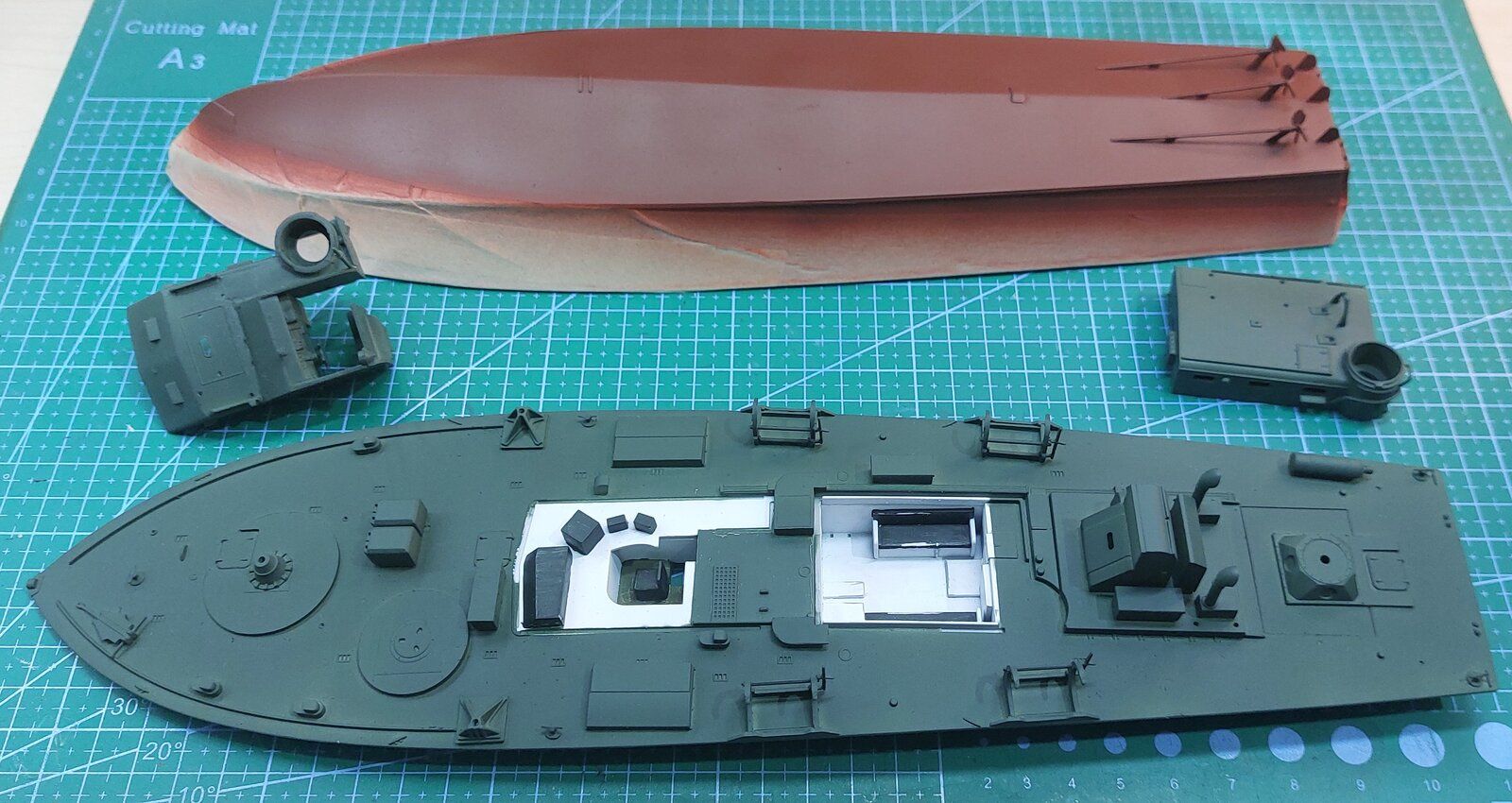

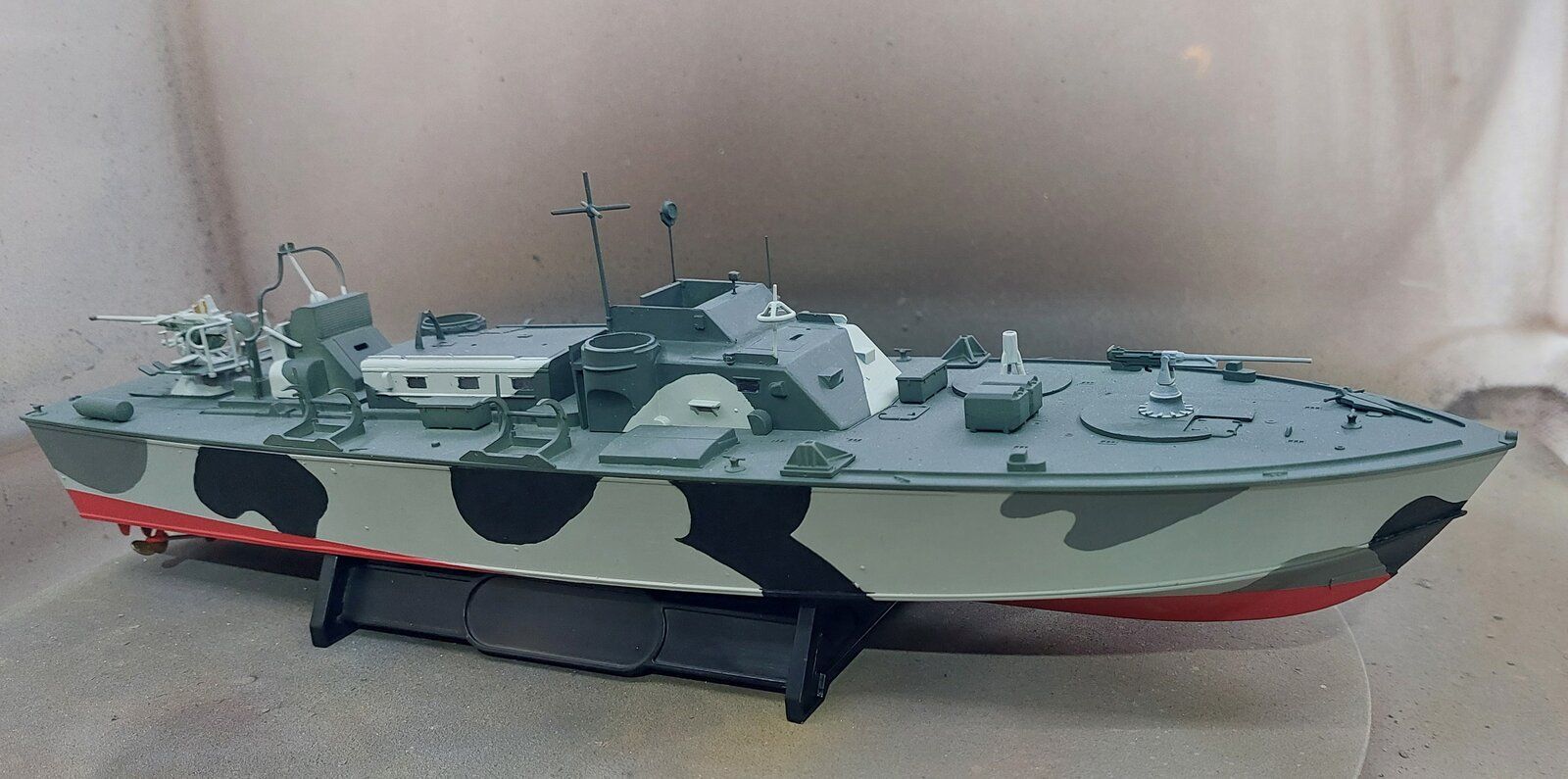

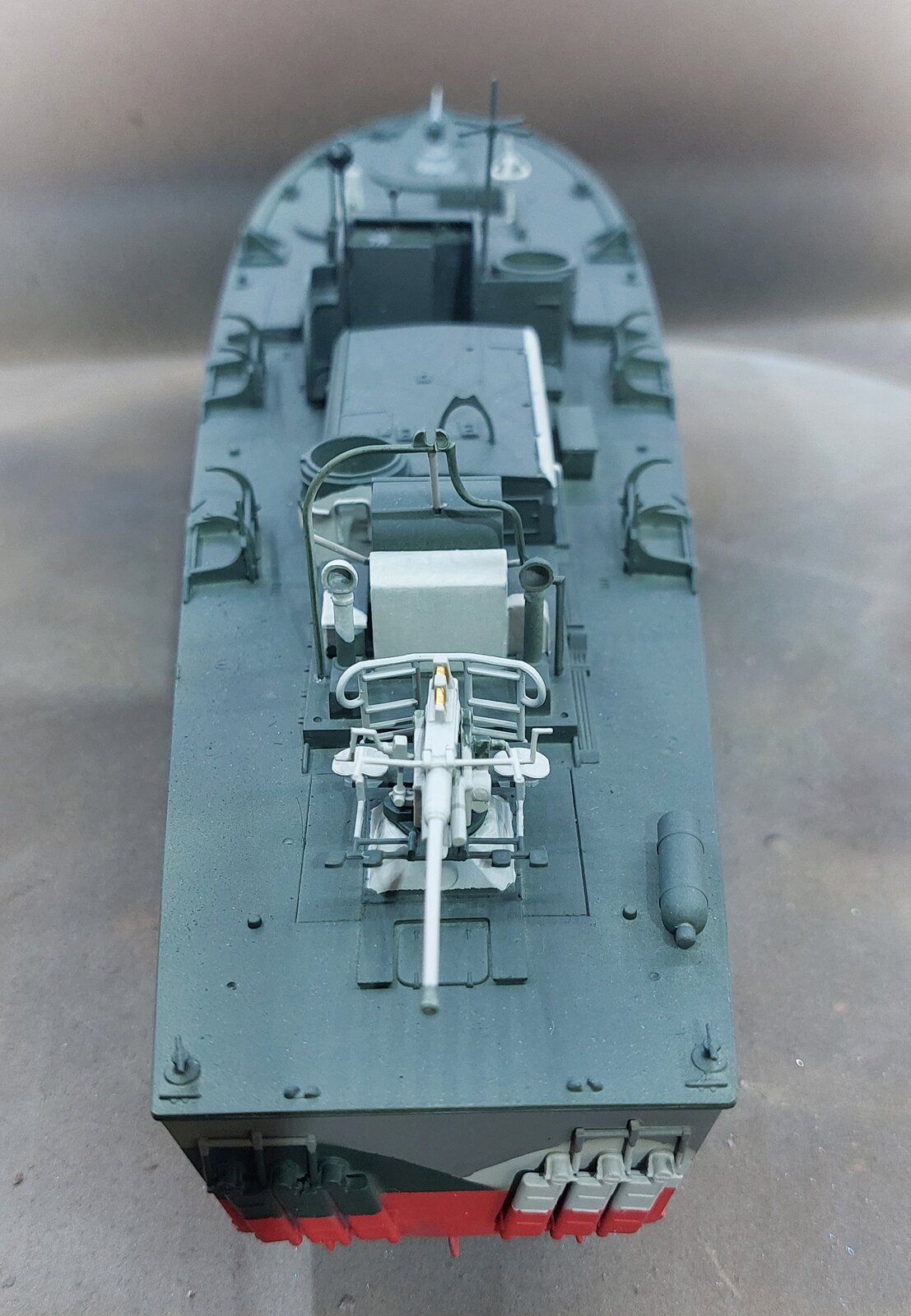

Revell 1/72 scale. Thanks for the info. Deck is black/green with black, grey/blue and green/gray camo. Just went with a hull red that I use as a base coat on armour. Pantherman

I can't remember the original source I used for the lower hull coating, but this is the colour:
https://encycolorpedia.com/795350

......................
For reference, in case it is of any help to you...

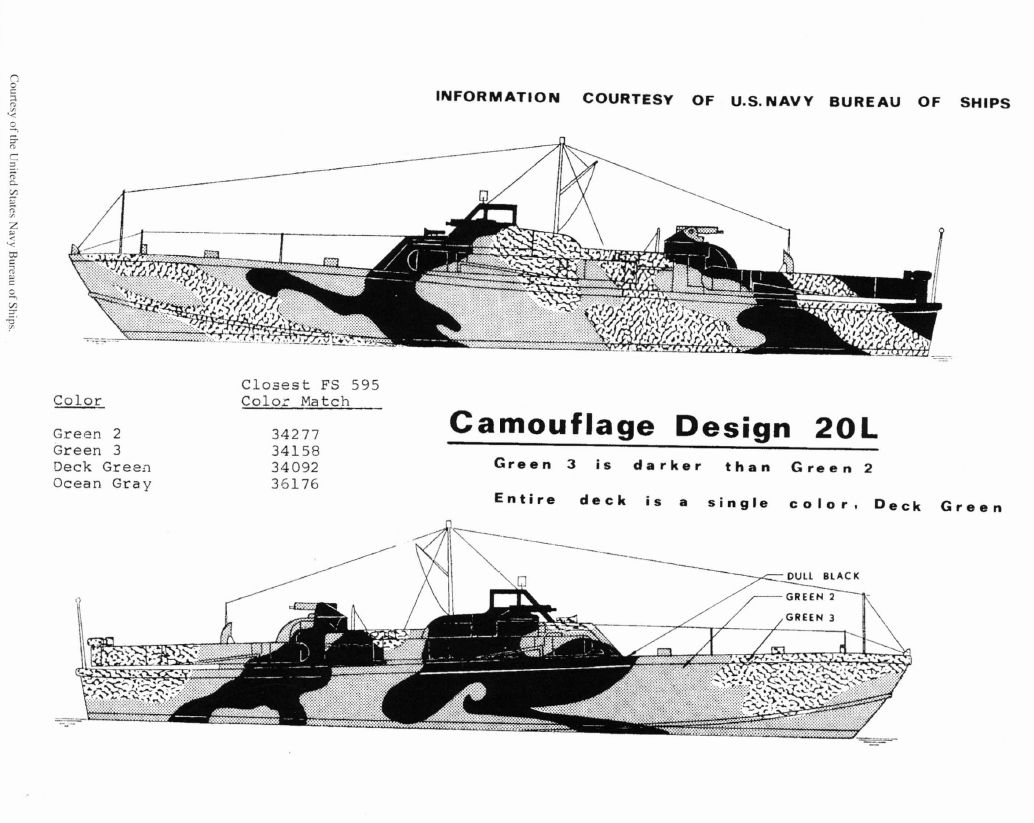

I have a few photos of PT588, and this appears to be paint scheme.
These patterns were applied by the crews, so there were inconsistencies in design and exact colour, but this is the plan they were given by the Navy.

pt588 camo.jpg

airdave said:
I can't remember the original source I used for the lower hull coating, but this is the colour:
https://encycolorpedia.com/795350

......................
For reference, in case it is of any help to you...
I have a few photos of PT588, and this appears to be paint scheme.
These patterns were applied by the crews, so there were inconsistencies in design and exact colour, but this is the plan they were given by the Navy.

View attachment 117136
Click to expand...
Thanks, that's very helpful. Pantherman
